Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
SG-40KVA Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 605USD; 5 pcs＜Qty≤100 pcs 595USD; 100pcs＜Qty 580USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 55X46X70CM; Reference weight: 98KG
Product name :
Three phase 415V voltage transformer
Place of origin :
Shanghai, PRC
Rated capacity :
40KVA Or Customized
Product model :
SG-40KVA
Rated input voltage :
Three Phase 220V Or Customized
Rated output voltage :
Three Phase 380V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

220V To 380V 3 Phase Step up Transformer - SHLEIPUSI

Product Overview

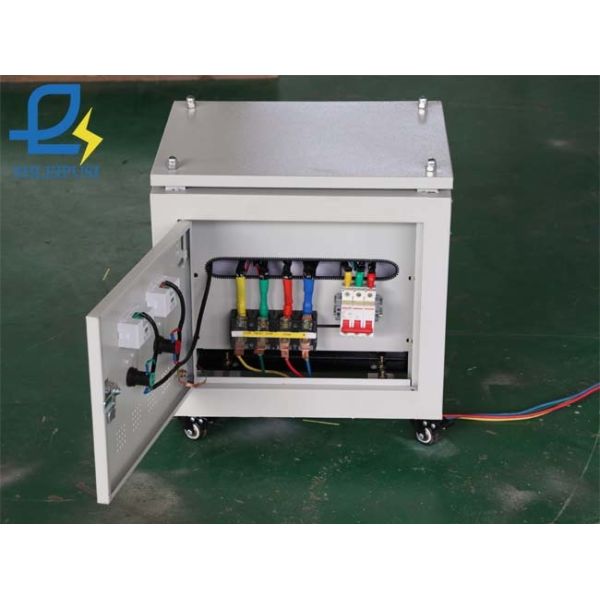

Our 220V To 380V 3 Phase Step up Transformer (Three phase digital display power transformer) is a high-performance, energy-efficient electrical device designed to convert 220V three-phase input voltage to 380V three-phase output voltage. Widely used in global markets, it caters to diverse customer groups including factories, power supply companies, substations, photovoltaic systems, electric vehicle charging stations, power plants, generator manufacturers, power transmission equipment, laser cutting machines, blenders, and various other electricity-consuming places. Equipped with a digital display, safety trip lock, brake-equipped universal wheels, input/output indicators, and heat emission holes, it combines functionality, safety and portability for stable operation in various scenarios.

Features, Characteristics and Advantages

This 220V To 380V 3 Phase Step up Transformer boasts clear digital display for real-time working status monitoring, enabling users to grasp operational data at a glance. It supports full-capacity operation with low temperature rise and low energy losses, thanks to its energy-saving design and high permeability core. The transformer is environmental protection compliant, with reliable terminals featuring extremely strong insulation properties that pass 3500V voltage tests. Its safe and durable construction, strong electrical conductivity, and convenient wire connection design enhance usability. Additionally, porous heat dissipation with a cooling fan effectively reduces operating temperature and extends service life; high-purity winding material ensures high conductivity, while new noise-free silicon steel offers high magnetic flux, low temperature and energy saving. A high-quality nylon frame further guarantees excellent insulation performance.

Why Choose Us

Choosing our 220V To 380V 3 Phase Step up Transformer means choosing reliability, customization and comprehensive service. We offer flexible OEM/ODM services, supporting customized appearance, parameters, configuration, logo and packaging. Our products hold ISO9001, CE and UL certificates, with strict quality control from material receiving to manufacturing. We provide free professional product photography and video producing, multiple transportation modes and terms, and 2-year warranty. Our professional technical team offers on-site installation, video-guided usage support and free component replacement for quality issues during the warranty period, ensuring worry-free use for global customers.

Technical Specifications

Item
Specification
Product Name
Three phase dry type step up transformer (220V To 380V)
Brand
SHLEIPUSI / Support OEM/ODM
Rated Capacity
40KVA or customized
Product Model
SG-40KVA
Input/Output Voltage
Three phase 220V / Three phase 380V (customizable)
Working Frequency
50/60Hz
Display System
Digital display
Output Precision
±2%
Insulation Class
F
Cooling Method
Dry type air cooling (with draught fan)
Certificates
ISO9001; CE; UL
Warranty
2 Years

Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V
Electrical Power Voltage Transformer Three Phase 40KW 220V To 380V

Frequently Asked Questions (FAQ)

Q: What is the lead time? A: 3-7 working days for standard products, 10 days for small quantities, 20-30 days for large quantities and customized products.
Q: How to control product quality? A: Professional quality inspection from material receiving to manufacturing; products are shipped only when meeting standards.
Q: What are the payment terms? A: 30% deposit for standard products, 50% advance for customized products, balance paid before shipment.
Q: Do you provide installation technical support? A: Yes, our professional technical team offers installation and application guidance.
Q: What is the packaging? A: Large products: strong wooden cases; small products: cartons.
Q: Can you print our logo? A: Yes, OEM/ODM is accepted, logo placement is available for large quantity orders.
Q: What is the MOQ? A: 1 set.
