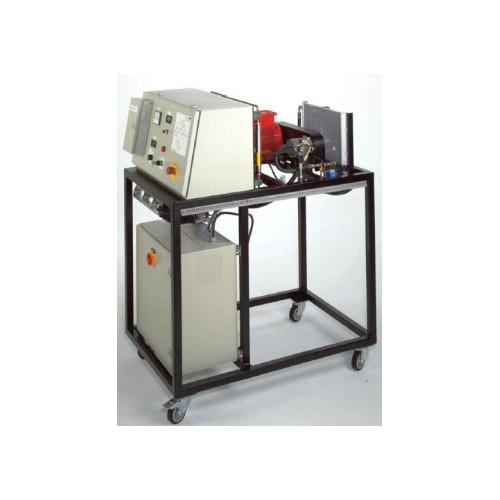

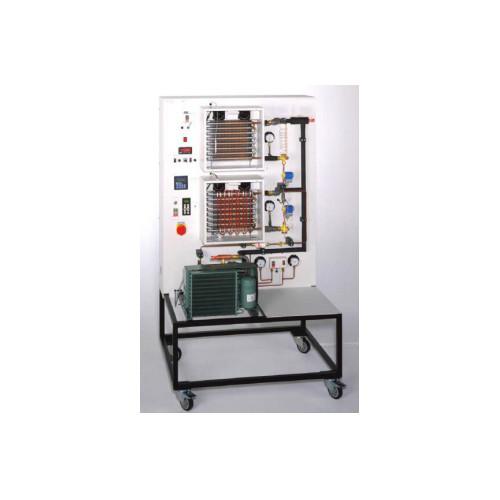

SR2043 Vechile Air Conditioning

Learning Objectives / Experiments

- principle of operation, design and handling of a vehicle air conditioning system

- detection of typical faults and repair of a faulty air conditioning system

* simulation of 8 system faults

- typical components of a refrigeration system

- refrigeration circuit as thermodynamic cycle

* log p-h diagram

* determine the coefficient of performance of the system

* determine the compressor pressure ratio

Specification

[1] investigation of a typical vehicle air conditioning system for cooling the vehicle interior

[2] compression refrigeration system with compressor, condenser, filter/drier, expansion valve and evaporator

[3] electric motor with variable speed as compressor drive

[4] condenser with fan

[5] evaporator as air cooler with three-stage fan

[6] compressor drive via V-belt and magnetic coupling

[7] simulation of 8 faults via buttons in the connectable box

[8] system is switched on via ignition lock

[9] display of temperatures, pressures (refrigerant), flow rate (refrigerant), pick-up current, speed

[10] refrigerant R134a, CFC-free

[11] air conditioning system voltage supply: 12VDC

Technical Data

Electric motor

- rotary current motor

- variable speed via frequency converter

500...3.000min-1

- power: 4kW at 3.000min-1

Axial piston compressor

- refrigeration capacity: approx. 3kW at 3.000min-1

Condenser: capacity: 6,6kW

Evaporator: capacity: 5,3kW

Measuring ranges

- temperature: 4x -100...100°C

- flow rate (R134a): 10...95L/h

- pressure: -1...9bar / -1...24bar

- speed: 0...3.000min-1

- current: 0...10A

Dimensions and Weight

LxWxH: 1.210x800x1.520mm

Weight: approx. 185kg

Required for Operation

400V, 50/60Hz, 3 phases or 230V, 60Hz, 3 phases

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.
