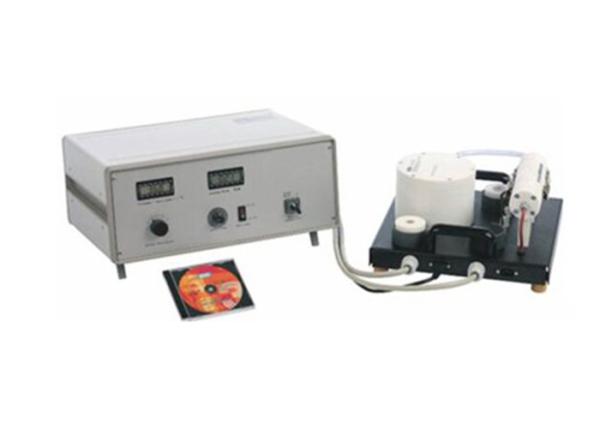

SR3025 Radial and Linear Heat Conduction

The unit shall perform the following experiments and investigations:

Learning Objectives / Experiments

linear heat conduction (plane wall)

determination of temperature profiles for different materials

determination of the temperature profile in case of a disturbance

determination of the thermal conductivity lambda

radial heat conduction

determination of the temperature profile

determination of the thermal conductivity lambda

Specification

[1] investigation of heat conduction in solid bodies

[2] experimental setup consisting of experimental unit and display and control unit

[3] linear heat conduction: 3 measuring objects, heating and cooling element, 9 temperature measuring points

[4] radial heat conduction: brass disc with heating and cooling element, 6 temperature measuring points

[5] cooling by means of tap water

[6] electrical heating element

21" TFT-Monitor Win 10 engl.

Technical Data

Linear heat conduction

3 measuring objects, insulated

1x DxL: 25x30mm, steel

1x DxL: 15x30mm, brass

1x DxL: 25x30mm, brass

heater: 140W

Radial heat conduction

disc DxL: 110x4mm

heater in the centre of the disc: 125W

cooling coil on the outer edge of the disc Measuring ranges

temperature: 0...100°C

power: 0...200W

Dimensions and Weight

LxWxH: 400x360x210mm (experimental unit) LxWxH: 470x380x210mm (display and control unit) Total weight: approx. 22kg

Material of construction: stainless steel

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.
