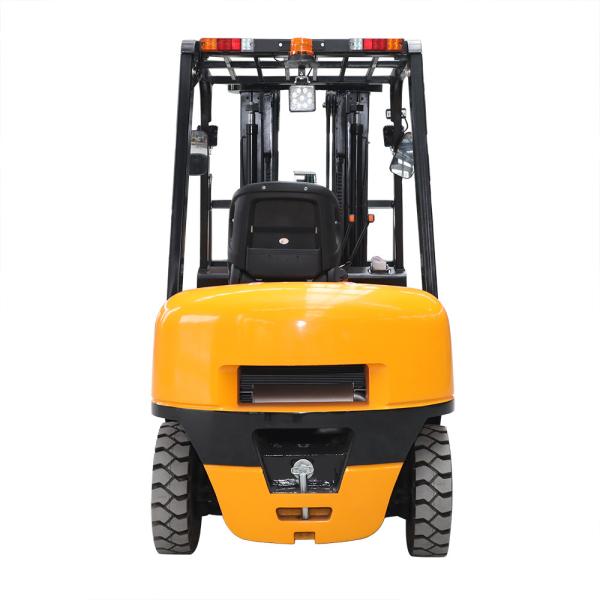

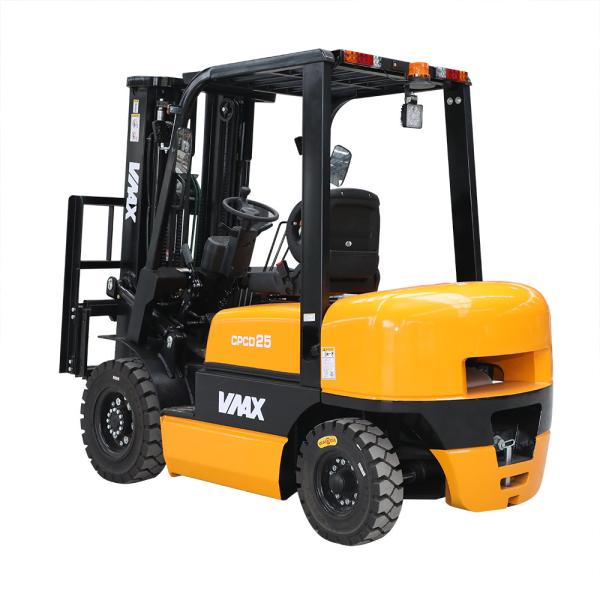

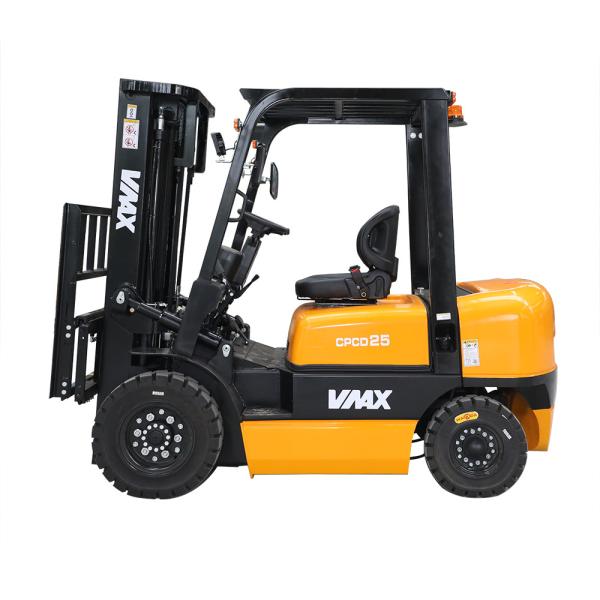

6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
Specifications
Brand Name :
Vmax
Model Number :
CPCD25
Certification :
CE
Place of Origin :
Anhui, China (Mainland)
MOQ :
1 Set/Sets
Price :
1 Set/Sets (Min. Order)
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000unit
Delivery Time :
25days
Packaging Details :
nude packing
Condition :
New
Type :
Powered Pallet Truck
Power Souce :
Diesel Engine
Rated Loading Capacity :
2500kg
Max. Lifting Height :
6000mm
Min. Lifting Height :
3000mm
Fork Length :
1070mm
Fork Width :
125mm
Overall Dimensions :
2576*1170*2070mm
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
per your request
Weight :
3780kg
Description

2.5T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model Unit CPC25/CPCD25
Power type
Rated capacity kg 2500
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 240
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 485

Exterior Size		 Length without fork mm 2580
Overall width mm 1160
Mast drop mm 1995
Max.lift mm 4030
Front-wheel Overhead mm 2070
Min Turning Radius mm 2230
Min.intersecting aisle mm 2000

Speeds		 Max Driving speeds km/h 17.5/20
Lifting speeds mm/s 500/530
Lowering speeds mm/s 540/550
Max.grade ability % 18
Total weight kg 3780

Tires		 Front 7.00-12-12PR
Rear 6.00-9-10PR
Wheelbase mm 1600

Tread		 Front mm 970
Rear mm 970
Min.ground clearance mm 110

Engine		 Model xinchai490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/1800
No.of cylinder 4
Displacement L 2.54
Fuel tank capacity L 52

6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift6000mm Lifting 2.5t Solid Tire Diesel Powered Forklift
