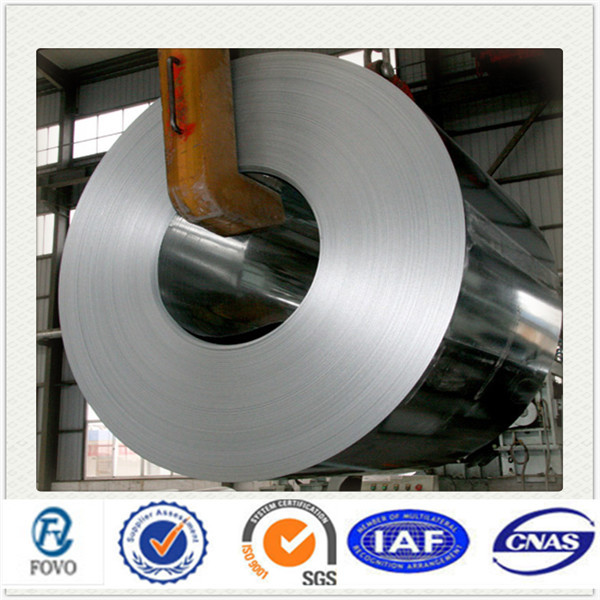

Galvanised Steel Coil and Sheet Steel
Galvanised Steel Coil and Sheet Steel
Specifications
Description

Galvanized sheet or coil is defined as a carbon steel sheet coated with zinc on both sides.

Continuous hot dipping, or electro-galvanizing are the two processes used to produce it.

A zinc coating is one of the most effective and economical methods of protecting bare steel from a

corroding environment. The zinc not only serves as a barrier between the steel and the environment,

it will sacrifice itself to protect the underlying steel sheet.

Grade

SGCC / SGCH

Type

Surface Finish

Quality standard

JIS G3302 / 3312

Surface finish

Normal spangle, large spangle, small spangle, matt surface

Regular

Standard spangles with flower pattern, suited for general use

Zero

More minimized spangles than regular, with a beautiful gloss, suited for general painting applications

Thickness

0.16-1.2mm

Width

914/1000/1219/1200/1250mm/1220mm Special width available.

Zinc coating

60-120G/M2 (both sides)

Coil weight

According to customer's requirements(3-7Tons)

Sacrificial, or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen.

Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc.

Thus, the spread of corrosion from cut edges, drill holes, etc is minimized.
