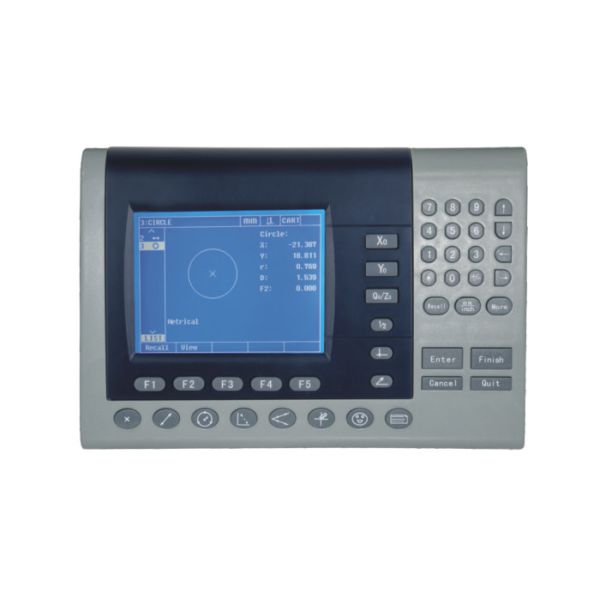

Multifunctional Digital Readout DP400
Multifunctional Digital Readout DP400
Multifunctional Digital Readout DP400
Multifunctional Digital Readout DP400
Specifications
Brand Name :
Sinowon
Model Number :
DP400
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7-day
Packaging Details :
plywood
Price :
USD966.67
Code # :
510-340
Display :
Color LCD
Application :
Metrology
Uses :
Profile Projector and Measuring Microscope
Description

Multifunctional Digital Readout DP400

Features:

  • 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
  • Save 100 permanent image elements, can set and save current date;
  • Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
  • Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
  • Section and linear compensation are available for 3-axis, highly ensure measurement accuracy;
  • Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
  • With polar and coordinate system, and can display millimeter and inch, and can shift easily;
  • With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
  • Support multiple language:Chinese, English and other language.

Specification:

Model DP400(#510-340)
Language Simple Chinese, Complicated Chinese, Portuguese, German and English, etc.
LCD Screen Size 115mm×85mm
LCD Screen Resolution 640*480
Digital Display Range 8Digits(With Decimal Point)
Display Axis 3-axis (X,Y,Z/Q)
Z/Q Display Model Length or Angle
Angle Display Model Degree, Minutes and Second or Degree
Linear Scale Signal TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA
Linear Scale Resolution 0.1um,0.2um,0.5um, 1um,2um,5um
Baud Rate 4800,9600,14400,19200,38400,57600
Data Output Port RS232,DB-9 Parent interface
Operation Keyboard Sealed Silicone touch-type keyboard
Expansion port Foot Switch, Printer, Optical Edge Finder, etc
Input Power Supply AC90V-240V,15W
Operation Environment Working Temperature: 0 ℃～40 ℃；Storage Temperature:-10 ℃～60℃；Relative Humidity:<90%RH
