Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Specifications
Brand Name :
MEAXPERT
Model Number :
URANUS 432
Place of Origin :
China
MOQ :
≥1
Price :
US$15,000.00-20,000.00
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Warranty period :
12 Months
Mode of operation :
CNC
Weight(Kg) :
--
Measuring Range(mm)(X/Y/Z) :
--
OEM :
--
Lens :
--
Driving System :
CMM
Measurement Accuracy :
VMM
Description
Product Description

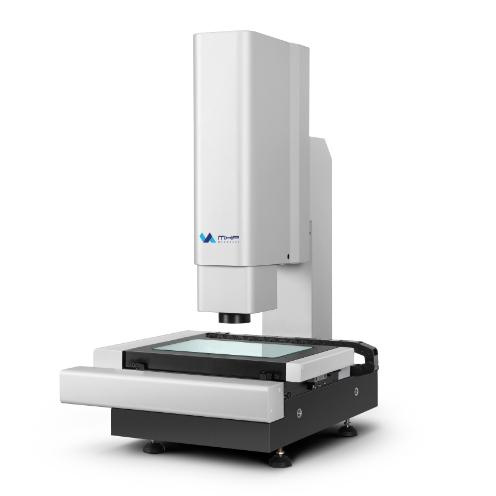

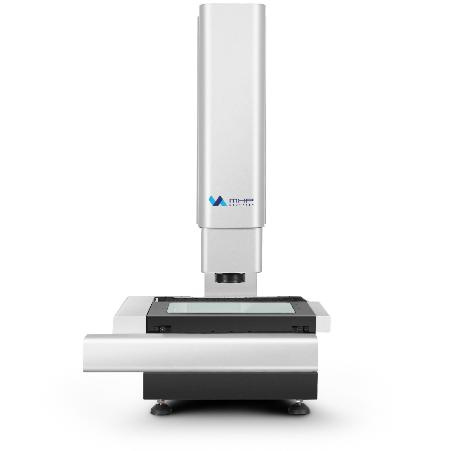

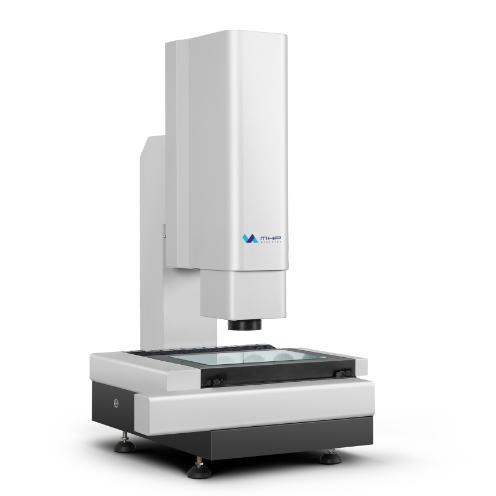

Fully Automatic Vision Measuring Machine
URANUS series CNC automatic Vision Measurement Machine is from MEAXPERT, which offers outstanding measuring performance. The full URANUS series is config with high accuracy, GIGA high resolution digital camera, 3 axis linear scales with 0.0005mm resolution, which ensure more stabe hardware dynamic performance and measuring accuracy.
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Specification
ltem
UR-2
UR-3
UR-4
Dimension (mm) (L/W/H)
540/830/1080
640/830/1080
740/980/1080
Measuring range (mm) (X/Y/Z)
200/200/200
300/200/200
400/300/200
Measuring accuracy (μm)
2.5+L/100
2,5+ L/100
2,5+ L/100
Repeatabilty (μm)
2.5
2.5
2.5
Weight (kg)
140
180
230
CCD
1.3M pixel digital camera
Lens
Manual zoom objective lens 1-10X (optional electronic magnification signal feedback lens)
Magnification
24.7 ~ 160X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
Field of view
8.5 ~ 1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
Working distance (mm)
80
Linear scale resolution (μm)
0.5
Driving system
CNC control, close-loop AC servo driving system, joystick, mouse or keyboard control
Illumination
Programmable LED 8 section ring surface light, LED bottom parallel light
Product Application
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Industrial 2D Auto Vision Measuring System 0.0005mm Resolution For Precision Measurement
Aerospace Industry
Automotive Industry
Electronics Industry



Company Profile
Who is MEAXPERT (MXP)?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
