VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design
VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design
Specifications
Brand Name :
MEAXPERT
Model Number :
VENUS
Place of Origin :
China
MOQ :
≥1
Price :
US$18,000.00-22,000.00
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Warranty period :
12 Months
Mode of operation :
CNC
Weight(Kg) :
610
Measuring Range(mm)(X/Y/Z) :
600 x 400 x 200
Lens :
Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy :
Large Field of View Measurement: ≦ 3um； Small Field of View Image Measurement: ≦ 2.5um ;Stitched Image Measurement: ≦ 3um
Description

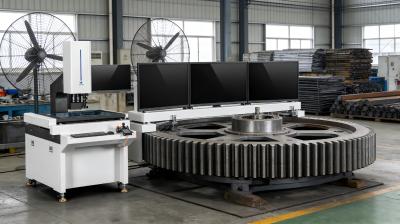

VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design

Advanced Stitching Vision Measurement Technology

Inspired by the celestial continuity of Venus, our VENUS Series stitching measurement systems provide uninterrupted data fusion for flawlessly continuous dimensional analysis. These systems utilize multi-CCD synchronization with dual-lens configurations to capture and precisely stitch localized images from different workpiece regions, creating complete and coherent measurement profiles without visible seams.

This advanced stitching capability eliminates measurement blind spots common with traditional single-field systems when inspecting large workpieces, ensuring comprehensive dimensional accuracy.

VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design

Technical Specifications
Specification VENUS 500
Measuring Range (X*Y*Z) (mm) 600 x 400 x 200
Effective Range (X*Y*Z) (mm) 500 x 400 x 200
Overall Dimensions (X*Y*Z) (mm) 1000 x 1320 x 1790
Weight (kg) 610
Stage Movement Fully automatic
Optical Lens Configuration Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Field of View (FOV) Large FOV: 4mm x 4mm
Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm
Image Sensor Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera
Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera
Measurement Accuracy Large-FOV Measurement: ≤ 3 µm
Zoom Lens (High Mag) Measurement: ≤ 2.5 µm
Stitched Image Measurement: ≤ 3 µm
System Measurement Accuracy ≤ 3 µm
Surface Light Source For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light.
For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light.
Contour Light Source Dome Light / Flat LED Light
Software FlashPro Ultra-High-Speed Inspection Vision Software

Industry Applications
VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design VENUS Large Scale Seamless Stitching Measurement Instrument Floor Standing Design
Aerospace Industry
Automotive Industry
Electronics Industry

About MEAXPERT (MXP)

MEAXPERT (MXP) is a collective of passionate metrology professionals with over a decade of industry experience. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Commitment to Simplicity and Transparency

We believe in straightforward business practices with clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations.

Innovation and Development

We heavily invest in technology R&D with dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, enhancing stability, efficiency, and ease of use. Our software development focuses on specialized modules tailored to unique industry needs, simplifying vision measurement applications.

Quality Commitment

We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality assurance process includes rigorous material inspections, stringent manufacturing controls, thorough reliability testing, and precise calibration before shipment.
