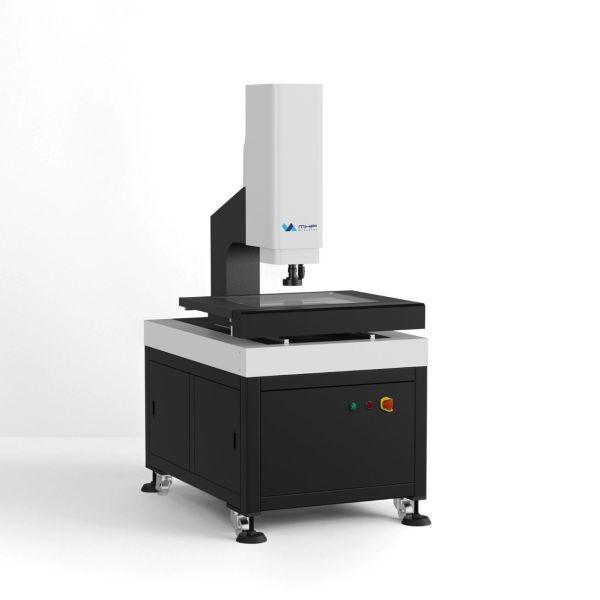

Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing
Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing
Specifications
Brand Name :
MEAXPERT
Model Number :
ME-3
Place of Origin :
China
MOQ :
≥1
Price :
US$11,000.00
Payment Terms :
L/C,D/P,T/T,Western Union,Money Gram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Warranty period :
12 Months
Mode of operation :
CNC
Weight(Kg) :
400
CCD :
1.3m Pixel HD Giga Digital Camera (Optional 5m Pix
Lens :
Fully Automatic Zoom Objective 0.7-4.5X
Linear Scale Resolution :
0.5um
Repeatabilty(Um) :
2.5um
Description
MXP CNC Vision Measuring Machine - Mercury Series
High-performance fully automatic vision measuring system designed for precision quality testing of plastic parts and complex components.
Product Overview
The Mercury Series is a high-performance, fully automatic marble-based coordinate measuring machine featuring enhanced resolution and faster processing speeds. This powerful system enables three-axis fully automatic programmable inspection with automatic coordinate system matching and measurement execution.
  • Marble construction for exceptional stability and durability
  • Low maintenance costs with long-term reliability
  • Memory, learning, and automatic programming capabilities
  • Rapid and accurate real-time on-site measurements
  • Ideal for high-volume manufacturing of complex precision components
Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing
Technical Specifications
Item ME-3 ME-4 ME-5 ME-6
Dimension (mm) (L/W/H) 650/950/1740 730/1070/1740 790/1130/1760 890/1370/1780
Measuring range (mm) (X/Y/Z) 300/200/200 400/300/200 500/400/200 600/500/200
Measuring accuracy (μm) 2 + L/100 2 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2 2 2.5 2.5
Weight (kg) 400 500 600 700
Additional Specifications:
CCD: 1.3M pixel digital camera
Lens: Auto-zoom Lens 1~10X
Magnification: 18~195X (varies by camera model)
Field of view: 8.5 ~ 1.3mm (reference value)
Working distance: 80mm
Linear scale resolution: 0.5μm (0.1μm optional)
Driving system: CNC control with high-precision motor servo drive; Handle, mouse/keyboard control
Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light
Industry Applications
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing
About MEAXPERT (MXP)
Our Mission
MEAXPERT (MXP) is a collective of passionate metrology professionals with over a decade of experience. We develop accurate, reliable, fast, and affordable vision measurement systems with transparent pricing and clear terms.
Innovation and Development
We invest heavily in technology R&D with dedicated software and hardware teams. Our hardware undergoes continuous improvement for enhanced stability, efficiency, and ease of use. We develop specialized software modules tailored to specific industry needs.
Quality Commitment
We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality process includes rigorous material inspections, stringent manufacturing controls, thorough reliability testing, and precise calibration before shipment.
