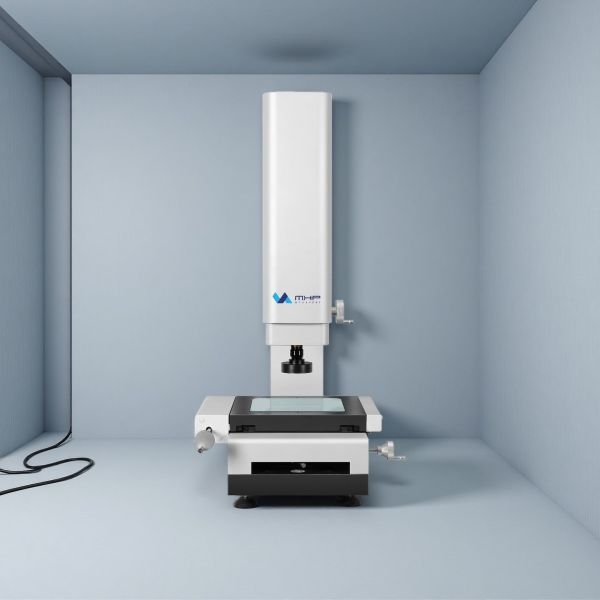

Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection
Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection
Specifications
Brand Name :
MEAXPERT
Model Number :
PL-2
Place of Origin :
China
MOQ :
≥1
Price :
US$3,700.00-4,200.00
Payment Terms :
L/C,D/P,T/T,Western Union,Money Gram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Mode of operation :
CNC
Weight(Kg) :
140
Measuring Range(mm)(X/Y/Z) :
200*200*200
Linear Scale Resolution :
0.5um
Lens :
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Driving System :
X/Y/Z Axis Manual Control
Description
Precision 2D Measurement Equipment For Clear And Accurate Data Collection
Semi-auto Vision Measuring Machine
The PLUTO Series is configured with high accuracy linear guide way providing unique dynamic performance and exceptional user experience. Featuring 3-axis 0.0005mm high resolution linear transducers and powerful programmable measuring software, users can easily achieve both 2D and 3D measuring functions in one machine.
The software calculates the offset between the optical lens and touch probe, ensuring all measuring results are within one coordinate system. Measurement results can be output as 3D drawings for reverse engineering applications.
Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection
Technical Specifications
Item PL-2 PL-3 PL-4
Dimension (mm) (X/Y/Z) 540/540/860 665/670/915 724/855/915
Measuring range (mm) (X/Y/Z) 200/100/150 300/200/200 400/300/200
Measuring accuracy (μm) 2.5 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2.5 2.5 2.5
Weight (kg) 150 200 255
Imaging and Measurement System
  • CCD: 1.3M pixel digital camera
  • Lens: Manual dented zoom lens 0.7-4.5X
  • Magnification: 18-195X (Reference value - actual magnification varies with camera and lens combinations)
  • Field of view: 8.1~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
  • Working distance: 80mm
  • Linear scale resolution: 0.5μm
  • Driving system: X and Y axis manual control
  • Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light (Optional coaxial light)
Product Applications
Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection Precision 2D CNC Vision Measuring System Semi Auto For Accurate Data Collection
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
