Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE

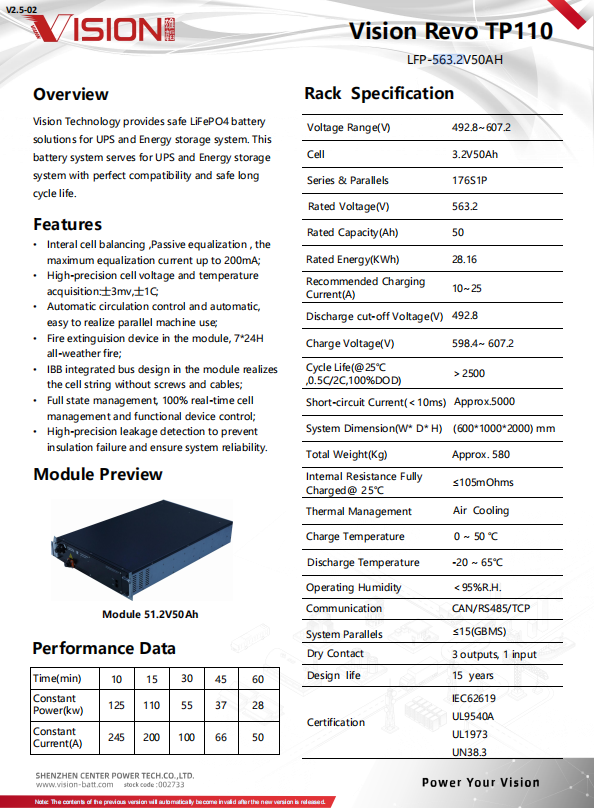

Specifications
Brand Name :
VISION
Max Load Quantity(cells) :
125
Cycle Life :
500 cycles
Dimension (L*W*H) :
600*1000*1500
Application :
Uninterruptible Power Supplies, Electric Power Systems
Model Number :
TP110 563.2V50AH
Weight :
580
Operating Temperature(℃) :
0-50
Cathode Materials :
LiFePO4
Series & Parallels :
176S1P
Rated Capacity(Ah) :
50Ah
Rated Energy(KWh) :
28.16
Charge voltage(V) :
598.4~ 607.2
Cycle life(@25 ,1C/1C,100%DOD) :
>2500
Short-circuit Current(A)(< 10ms) :
Approx.5000
Internal Resistance Fully Charged@ 25C :
105mOhms
Thermal Management :
Air cooling
MOQ :
1
Price :
CN¥89,454.46
Description
Product Description
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Specification
item
value
Place of Origin
China
Brand Name
VISION
Model Number
TP110 563.2V50AH
Electric Energy
103Wh
Battery Type
Lithium Battery
Phase
Three Phase
Protection
Short Circuit
Type
DC UPS
Application
data center
Series & Parallels
176S1P
Rated Capacity(Ah)
50Ah
Rated Energy(KWh)
28.16
Charge voltage(V)
598.4~ 607.2
Cycle life(@25 ,1C/1C,100%DOD)
>2500
Short-circuit Current(A)(< 10ms)
Approx.5000
Internal Resistance Fully Charged@ 25C
105mOhms
Thermal Management
Air cooling
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Company Profile
Product packaging
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
Vision Revo Three-Phase UPS Lithium-ion LiFePO4 Battery System TP110 563.2V50AH 500 Cycles BATTERY MODULE
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South
America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western
Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about
101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing
industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
