VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life

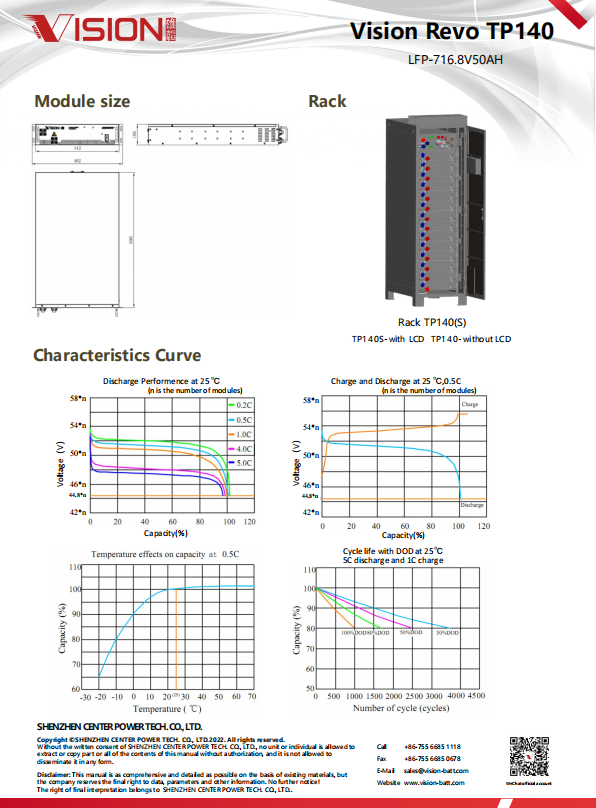

Specifications
Brand Name :
VISION
Max Load Quantity(cells) :
148
Battery Type :
Solid state
Cycle Life :
>2500 cycles
Dimension (L*W*H) :
600*1000*2000
Application :
Electric Power Systems
Model Number :
TP140 716.8V50AH
Weight :
690
Operating Temperature(℃) :
0-50
Place of Origin :
China
Cathode Materials :
LiFePO4
Series & Parallels :
224S1P
Rated Capacity(Ah) :
50Ah
Rated Energy(KWh) :
35.84
Charge voltage(V) :
761.6~ 772.8
Cycle life(@25 ,1C/1C,100%DOD) :
>2500
Short-circuit Current(A)(< 10ms) :
Approx.5500
Internal Resistance Fully Charged@ 25C :
135mOhms
Thermal Management :
Air cooling
MOQ :
1
Price :
$13,950-15,467
Description
Product Description
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
Specification
item
value
Place of Origin
China
Brand Name
VISION
Model Number
TP140 716.8V50AH
Electric Energy
103Wh
Battery Type
Lithium Battery
Phase
Three Phase
Protection
Short Circuit
Type
DC UPS
Application
data center
Series & Parallels
224S1P
Rated Capacity(Ah)
50Ah
Rated Energy(KWh)
35.84
Charge voltage(V)
761.6~ 772.8
Cycle life(@25 ,1C/1C,100%DOD)
>2500
Short-circuit Current(A)(< 10ms)
Approx.5500
Internal Resistance Fully Charged@ 25C
135mOhms
Thermal Management
Air cooling
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
Company Profile
Product packaging
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South
America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western
Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about
101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing
industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
Send your message to this supplier
Send Now

VISION Revo High Rate Solid State 3.2V50AH LFP Lithium Battery System Cells Cabinet TP140 716.8V50AH Pack High Cycle Life

Ask Latest Price
Product Detail
Brand Name :
VISION
Max Load Quantity(cells) :
148
Battery Type :
Solid state
Cycle Life :
>2500 cycles
Dimension (L*W*H) :
600*1000*2000
Application :
Electric Power Systems
