HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
Specifications
Brand Name :
CNPetro
Model Number :
HTLP 50
Certification :
ISO
Place of Origin :
China
MOQ :
1000 sets
Packaging Details :
300*300*320mm
Adhesive Type :
Hot melt adhesive
Width :
50-1000mm
Peel Adhesion :
≥50N/cm
Impact Resistance :
≥15J
Uv Resistance :
Yes
Adhesion To Steel :
≥25N/cm
Backing Type :
HDPE
Temperature Resistance :
-20°C to 80°C
Color :
Black
Material :
Cross-linked Polypropylene
Thickness :
1.8mm，2.0mm,2.2mm,2.5mm
Temperature Range :
-20℃~80℃
Description

HDD Heat-Shrinkable Sleeve That Meet All Relevant Global Standards

A three-layer system consisting of 100% solids two-component liquid epoxy primer and a heat shrink sleeve made from a high shear strength co-polymer adhesive and irradiation cross-linked, high-density polyethylene backing. This coating system replicates the structure and the performance of factory-applied three-layer PE coatings.

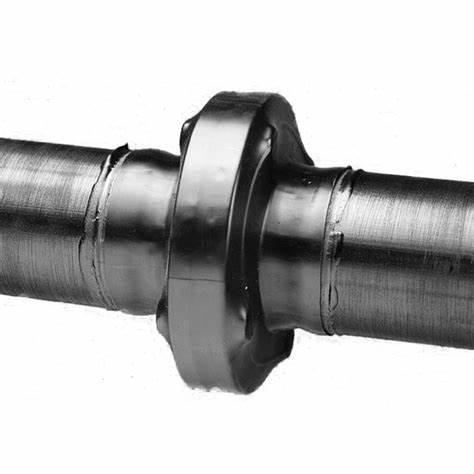

Fibre reinforced heat-shrinkable sleeve for field joint protection during directional drilling
A high-performance fibreglass reinforced sleeve specifically designed for girth weld corrosion protection for PE, PP and FBE coated pipes used for horizontal or directional drilling (HDD-Pull Through) applications. The reinforcement gives the backing greater abrasion and gouge resistance.

During installation, the epoxy is applied to the prepared pipe surfaceand the heat-shrinkable sleeve is immediately wrapped around thejoint over the wet epoxy. Heat is then applied to the sleeve, whichshrinks to form a tight fit around the joint. While curing, the epoxyforms strong mechanical and chemical bonds to the pipe surface & tothe copolymer adhesive layer. The radiation cross-linked outer layerforms a tough barrier against mechanical damage and moisturetransmission.

HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating

Test standard Unit 3PP 110
Adhesive Softening point ASTM E28 ℃(℉) 110
Lap shear @23℃ EN12068 N/cm2 550
Lap shear @23℃ EN12068 N/cm2 25
Backing Specific gravity ASTM D792 g/cm3 95
Tensile strength ASTM D638 MPa (psl) 24
Elongation ASTM D638 % 550
Hardness ASTM D2240 Shore D 55
Abrasion resistance ASTM D 1044 Mg 35
Volume resistance ASTM D257 Ohm-cm 1017
Dielectricvoltage breakdown ASTM D149 Kv/mm 27
Sleeves Impact EN12068 J >8
Indentation EN12068 mm 0.1
Peel adhesion ASTM D1000 N/cm 120
Peel adhesion EN12068 N/cm >140
Cathodic disbondment ASTM G8 Mm rad 3
Water absorption ASTM D 570 % 0.05
Low Temp.flexbility ASTM D2671-C ℃(℉) >-32(-26)
Fully recovered T thickness Mm(mil) 1.9(77)
Fully recovered L thickness Mm(mil) 2.4(96)

HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating

HDD Heat-Shrinkable Sleeves With Reinforced With Fiberglass Backing For Joint Coating
