Custom Long Plastic Housing Injection Mold
Custom Long Plastic Housing Injection Mold
Specifications
Description

1.Precision Elongated Deep-Cavity Milling to Eliminate Linear Warpage
Specially engineered for elongated component housings, this tool masters the critical engineering challenge of linear warpage caused by non-uniform material shrinkage. Utilizing high-speed CNC milling centers in a single setup, we achieve flawless curvature transitions and precision draft angles along the deep-draw cavity walls. This rigorous control ensures the molded long-form enclosures permanently maintain absolute straightness and dimensional compliance for downstream assembly.


2.Heavy-Duty Long-Travel Side Action for Flawless Lateral Apertures

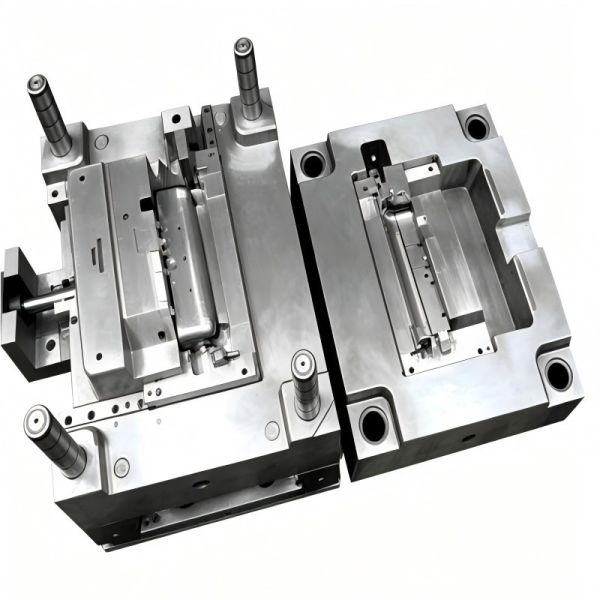

As distinctly showcased on the moving half, the tool is integrated with a heavy-duty, long-travel side slider and mechanical core-pulling mechanism. To form complex functional button slots, interface cutouts, and snap-fits along the enclosure’s flanks, this actuation system maintains fluid kinematics while compressing parting line clearances down to micron-level windows. This elite sealing performance fundamentally prevents micro-flash around lateral functional openings.


3.Multi-Axis Mechanical Interlocking Safeguarding Long-Run Concentricity
To completely counteract micro-flexing or core shifting triggered by immense repetitive clamping forces on an elongated footprint, the mold base is fortified with oversized hardened guide pillars and rigid side taper interlocks. Upon mold closure, this multi-axis mechanical alignment matrix strictly governs the core-to-cavity positioning. By eliminating dynamic deviation and step-line defects, it guarantees persistent, batch-to-batch tolerance uniformity over extensive production lifecycles.
