698-4200MHz N Female Directional Coupler With Low VSWR ≤1.25
698-4200MHz N Female Directional Coupler With Low VSWR ≤1.25
Specifications
Brand Name :
Vinncom
Model Number :
VN-DC-0742-INX-150
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Connector Type :
N Female
Frequency Range :
698-4200MHz
Operating Temperature :
-40°C~+80°C
VSWR :
≤1.25
Description

698-4200MHz N Female Directional Coupler

  • High directivity
  • Wide band
  • Good PIM

VN-DC-0742-INX-150.pdf

Part Number VN-DC-0742-INX-150
Operating Frequency ( GHz ) 698-4200
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 10 12 15 20 30
Tolerance ± 0.8 ± 0.8 ± 0.9 ± 1.0 ± 1.0 ± 1.0 ± 1.2 ± 1.5
Insertion Loss (dB) ≤2.05 ≤1.60 ≤1.40 ≤0.96 ≤0.96 ≤0.5 ≤0.22 ≤0.2
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥28 ≥33 ≥38 ≥45
IM3 (dBc @ 2×43dBm) -150
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200

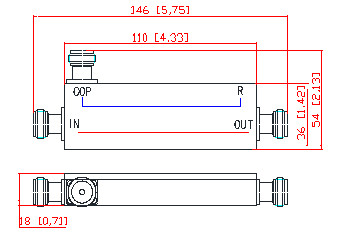

Dimension (mm)(L×W×H, excl connector) 110×36×18
Net Weight (g) 155 ± 20
Packing Dimensions (mm,L×W×H) 180×75×30
Packing Carton Size (mm,L×W×H) 430×380×170
ROHS Compliance Yes
