150-1000MHz 2in 2out N Female Hybrid Coupler
150-1000MHz 2in 2out N Female Hybrid Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-HC2x2-15001-ON-xxx
Certification :
ROHS ISO9000
Place of Origin :
CHINA
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500pcs per day
Application :
As same band combiner
Hight isolation :
20
LOW VSWR :
1.30
Connector :
N Female
OEM/ODM :
Acceptable
Color :
Customized
PIM :
150
Description

150-1000MHz 2in 2out N Female Hybrid Coupler

  • Wide band
  • Portable for installation
  • Good returen loss

Part Number

VN-HC2x2-15001-ON-xxx

Operating Frequency ( MHz )

150-1000

Impedance ( Ohm )

50

VSWR

1.3

Coupling (dB)

3.2

Insertion Loss (dB)

±1.0

Isolation (dB)

20

IM3 (dBc @ 2×43dBm)@

-150

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

N Female

Handling Power (Watt, max)

300

Peak Power (Watt, max)

1200

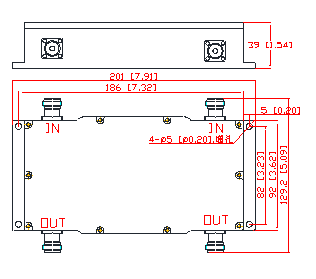

Dimension (mm)(L×W×H, excl connector)

201X98X39

Net Weight (g)

1515± 5%

Packing Dimensions (mm,L×W×H)

210X170X65

Packing Carton Size (mm,L×W×H)

530X440X80

ROHS Compliance

Yes

150-1000MHz 2in 2out N Female Hybrid Coupler150-1000MHz 2in 2out N Female Hybrid Coupler
