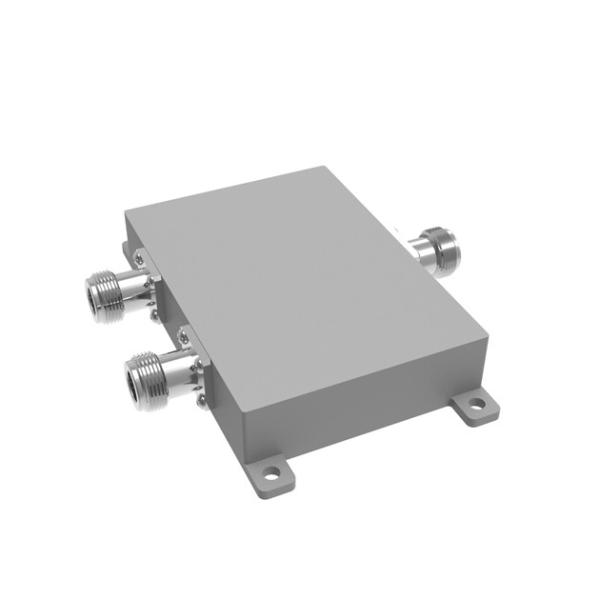

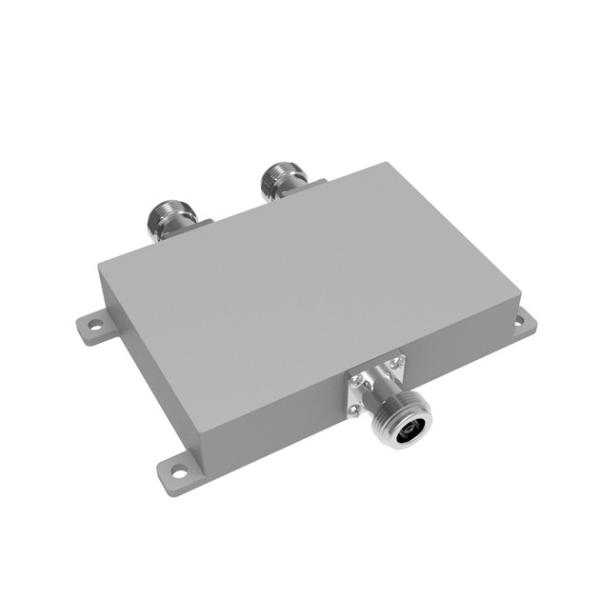

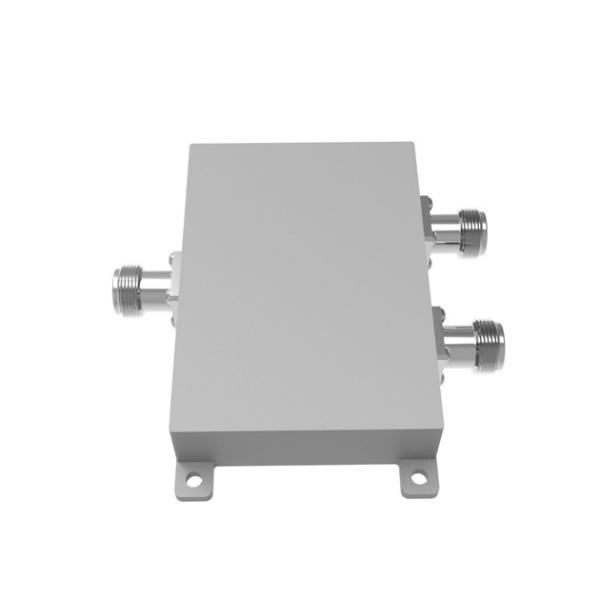

350-520MHz 2 Way N Female Wilkinson Power Divider
350-520MHz 2 Way N Female Wilkinson Power Divider
350-520MHz 2 Way N Female Wilkinson Power Divider
350-520MHz 2 Way N Female Wilkinson Power Divider
350-520MHz 2 Way N Female Wilkinson Power Divider
350-520MHz 2 Way N Female Wilkinson Power Divider
Specifications
Brand Name :
Vinncom
Model Number :
VN-PD-035052-ON2
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Interface :
N Female
Frequency Range :
350-520
VSWR :
≤1.20
Impedance :
50
Split Loss :
≤3.3
Application :
Indoor
ROHS :
Compliance
Isolation :
≥22
Description

350-520MHz 2 Way N Female Wilkinson Power Divider

  • High power handling splitters
  • Good VSWR at all ports
  • Low split loss

VN-PD-035052-ON2.pdf

Part Number VN-PD-035052-ON2
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.20
Split Loss (dB) ≤3.3
Isolation (dB) ≥22
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Average Power (Watt, max) 50(Power dividers) / 2(combiner)
Peak Power (Watt, max) 200
Dimension (mm)(L×W×H, excl connector) 70×99.36×21
Net Weight (g) 340±5%
ROHS Compliance Yes
350-520MHz 2 Way N Female Wilkinson Power Divider350-520MHz 2 Way N Female Wilkinson Power Divider
