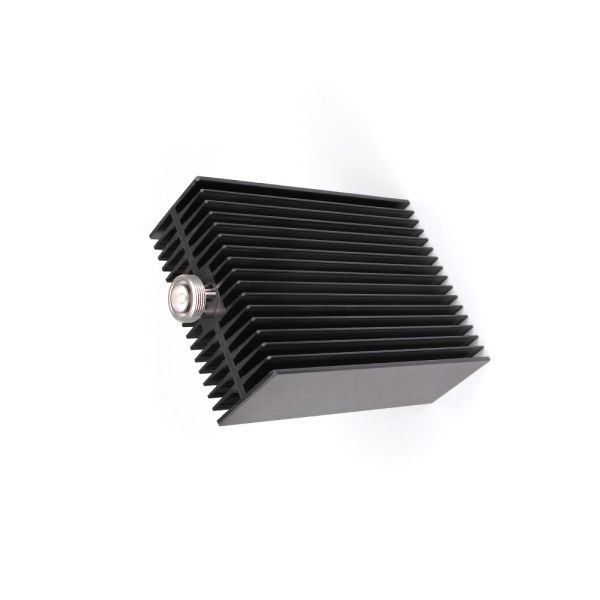

0-4GHz 200W DIN Female Dummy Load
0-4GHz 200W DIN Female Dummy Load
Specifications
Brand Name :
Vinncom
Model Number :
VN-LD-4G-200W-IDF
Certification :
ISO 9000 ROHS
Place of Origin :
CHINA
MOQ :
5 PCS
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
600 PCS PER DAY
Price :
negotiation
Power handling :
200 watts
Connector :
DIN female
Color :
Black
Application :
DAS BTS IBS LAB TESTING
Description

0-4GHz 200W DIN Female Dummy Load

  • Better heating shrink
  • Wide band
  • Good water resistance

VN-LD-4G-200W-IDf-S.pdf

Part Number VN-LD-4G-200W-IDf
Operating Frequency (GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 200
Dimension (mm)(L×W×H, excl connector) 200×142×65
Net Weight (g) 2060 ± 20
Packing Dimensions (mm,L×W×H) 300 × 170 × 120
Packing Carton Size (mm,L×W×H) 620 × 500 × 190
ROHS Compliance Yes

0-4GHz 200W DIN Female Dummy Load

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
