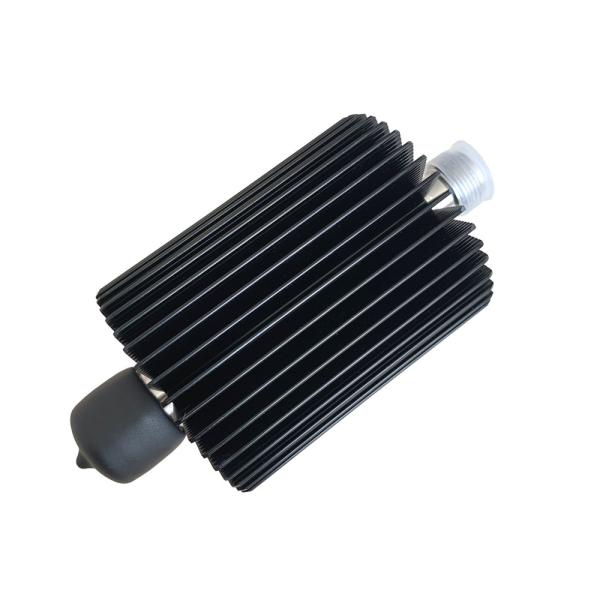

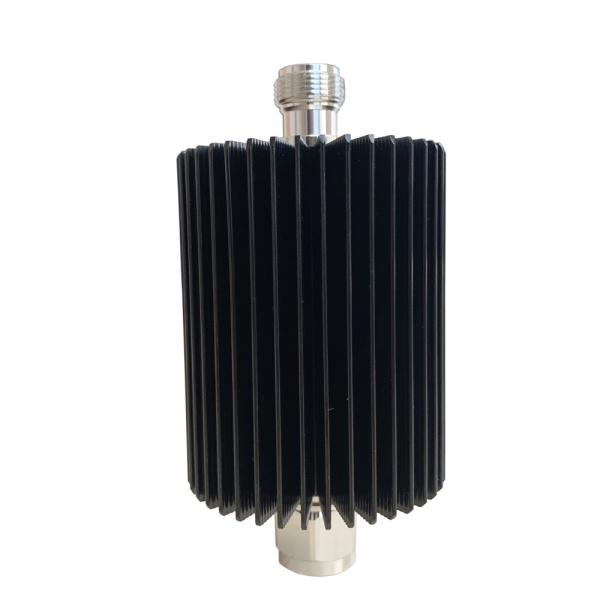

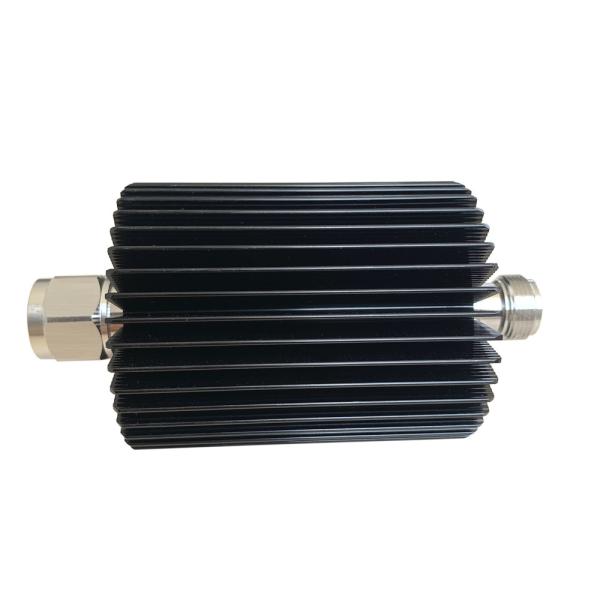

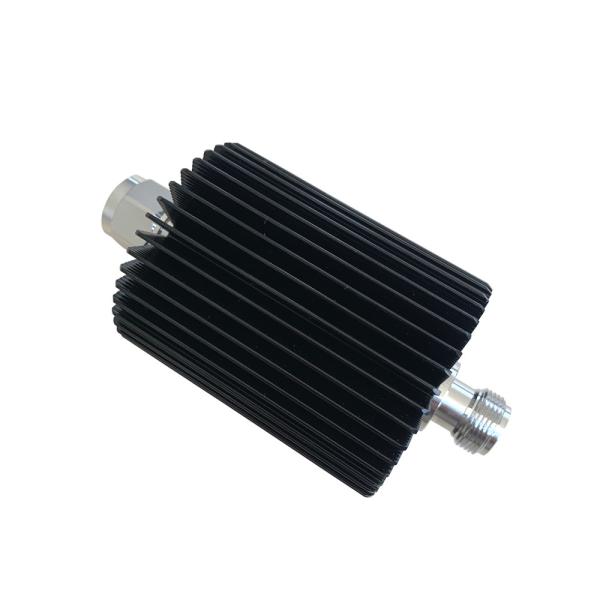

DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
DC-4GHz N Female -N Male 50W Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-4G-50W-NF-NM
Certification :
ROHS ISO9000
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300pcs per day
Connector :
N male - N female
Frequency :
DC-3.8GHz DC-4GHz
Design :
Integrated design
Description

DC-3.8GHz 50 Watts N Male-N Female 3~30dB RF Coaxial Attenuators

  • Good VSWR
  • Attenuation Range Wide
  • High-gain

VN-AT-4G-50W-NF-NM.pdf

Part Number

VN-AT-4G-50W-NF-NM
Operating Frequency ( MHz ) DC-4G
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 50
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.5 ±0.5 ±0.6 ±0.8 ±1 ±1.5 ±1.8
Dimension (mm)(L×W×H, excl connector) 75×Φ60
Net Weight (g) 325± 20
Packing Dimensions (mm,L×W×H) 170 × 70 ×70
Packing Carton Size (mm,L×W×H) 370 × 370 × 180
ROHS Compliance Yes
DC-4GHz N Female -N Male 50W Attenuator

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
