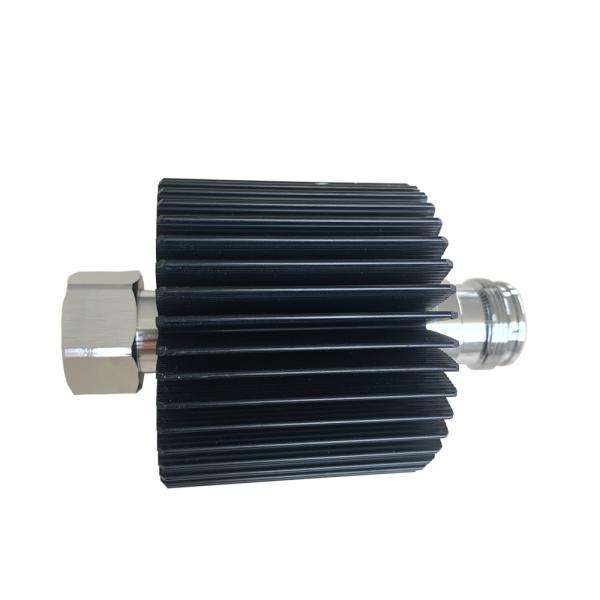

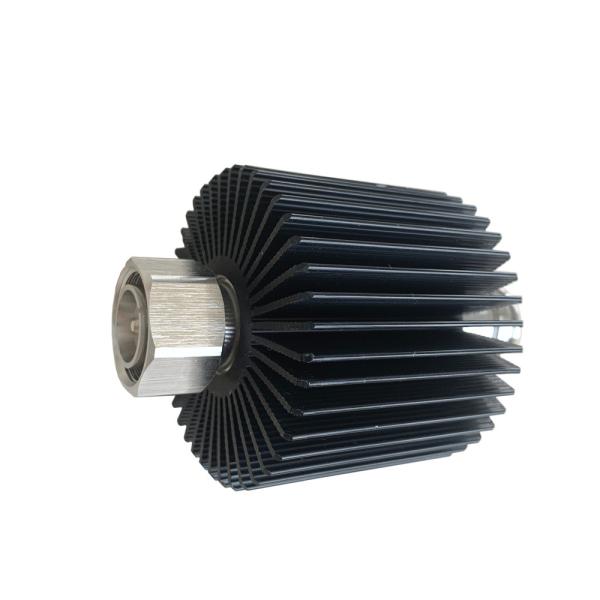

DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-4G-50W-PF-PM
Certification :
ROHS ISO9000
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300pcs per day
Connector :
4.3-10 male - 4.3-10 female
Frequency :
DC-4G
Design :
Integrated design
Description

DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator

  • Wide band
  • Good VSWR
  • High-gain

VN-AT-4G-50W-PF-PM.pdf

Part Number

VN-AT-4G-50W-PF-PM
Operating Frequency ( MHz ) DC-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 30
Interface 4.3-10 Male – 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.5 ±0.5 ±0.6 ±0.8 ±1 ±1.5 ±1.8
Dimension (mm)(L×W×H, excl connector) 50×Φ60
Net Weight (g) 275± 20
Packing Dimensions (mm,L×W×H) 105 × 65 ×65
Packing Carton Size (mm,L×W×H) 350 × 350 × 225
ROHS Compliance Yes
Revision R1
