100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
Specifications
Brand Name :
pearmain
Model Number :
PE3032OS5IR
Certification :
CE, FCC, UL
Place of Origin :
China
MOQ :
1unit
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100units per week
Delivery Time :
7 working days
Packaging Details :
special shipping carton, 60x3x58cm, 7kgs
camera module :
fcb-ex1010
optical zoom :
36
digital zoom :
12
IR distance :
100m
Description

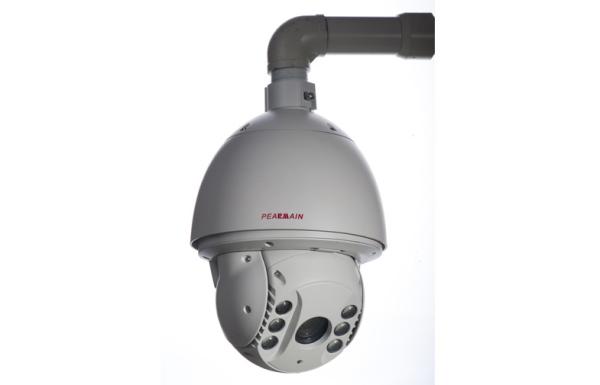

PE3032OS5IR IR High Speed Dome Camera , Pearmain IR PTZ Camera, 100m IR, 36x12

Quick Detail:

100m IR distance

Automatically identify PEAMRAIN protocol or PELCO D/P protocol

Automatically identify SANYO, SONY, HITACHI, CNB series etc. camera module.

Powerful OSD menu for setup of Programmable Functions

Built-in linear power for anti-surge and anti-Lightning protection

Soft address to set

On-Screen display: Compass, Pan, Tilt, Zoom ratio.

IP66 waterproof for outdoor applications

Description:

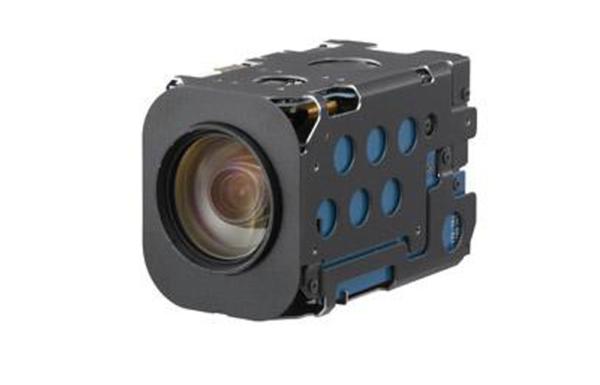

PE3032OS5-IR IR Outdoor high speed dome, is with Sony original FCB-EX1010 module,36x12 day/night,530TVL,Wide Dynamic Range, IP66 waterproof double-shell of aluminum, multiple bracket for applications. 100m IR distance.

Specifications

Address

0~255

Pan range

360°Continue

Tilt range

0°~90° Flip

Manual speed Pan

0.05~240°/Sec

Manual speed Tilt

0.05~180°/Sec

Preset speed

300°/Sec

Preset accuracy

±0.50°

Preset

255

Remote firmware updating and setup

to update firmware by RS485, to set ID by RS485

Cruise Tours

8 Programmable(Dwell time speed preset point)

Speed setup for cruise tour

Yes

Auto Scan

1 Programmable (355° scan )

Time adjustment

to adjust Time by broadcasting

Integrate multi-protocol

Pelco_D/P, PEARMAIN or OEM protocol

Protocol Automatic identify

Pelco_D/P, PEARMAIN

Broadcasting address

Yes

anti-surge and anti-Lightning protection

Yes, Power side:4KV, Video and data side: 2KV

OSD menu operation

Yes

Supporting camera

Automatic identify(Sony, Hitachi,etc.)

Camera menu operation

Yes

Camera character programming

20 character

Privacy masking

Yes

Ingress Protection IP66

Yes

Operating Temperature

–40℃~70℃

Humidity

0%~90% (Non condensing)

Heater operate

(-5)℃ on +5℃ off

Power

24VAC±25%,60Hz/50Hz

Consumption

IR off 15W IR on 35W

communication

RS485 (+/-)

Connection

BNC cable

Weight

4.5kgs (without bracket)

Applications:

The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. to offer video to DVR/matrix system
