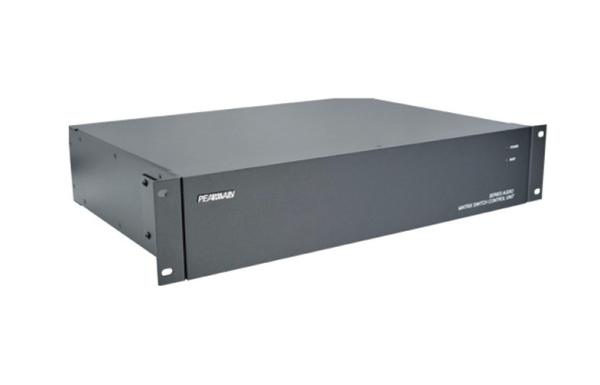

Security 32x8 Channel Analog Audio Video Matrix Switcher / HD Matrix Swtich Box
Security 32x8 Channel Analog Audio Video Matrix Switcher / HD Matrix Swtich Box
Specifications
Brand Name :
pearmain
Model Number :
PE4032-8
Certification :
CE, UL
Place of Origin :
China
MOQ :
1unit
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000units per week
Delivery Time :
7 working days
Packaging Details :
special shipping carton, 57x43x18cm, 10kgs
input :
32ch
output :
8
Video :
HD CVI, TVI, AHD, BNC
Operation :
by keyboard, very similar to analog matrix
Description

PE40 Full cross point analog Matrix swticher , Pearmain standard matrix swtich, 32x8

Quick Detail:

● Integrated Menu Setup

Menu Setup including English operation interface, with time, date and 16pcs character; it can run on-screen menus for system program by monitor 1, keyboard on matrix or main control keyboard

● Camera image masking and Inserting

Masking, to jump over the camera image which don’t need to display, Inserting, to insert and display which need to display (but don’t’ display).

●Up To 64 Cameras And 16 Monitors for one Matrix Bay

● Alarm On/Off

PE50 can set alarm on/off schedule by menu of alarm on/off, so system could auto run alarm on/off according to time set in menu.

● CE, FCC, ROHS,UL compliant

Description:

PE40 series matrix is an integrated system of audio/video and switch/control, it can control 1-32ch audio/video input and 1-8ch audio/video output, It also can allocate up to 16 keyboard, It can control multiple speed dome based PE5135 code converter, up to 64ch camera input and 16ch monitor output.

Specifications:

Communication Mode serial (RS-485)
Display Mod Display Mode: numeral duct
Baud Rat 9600 bits/s
Video Isolation degree -45dB
Bandwidth 10 MHz
Video S/N 65 dB
Differential Phase ≤1.1degree
Differential Gain ≤0.6%
Insertion Gain ≤0.1db
Synchronous Nonlinear Distortion 1%
Brightness Nonlinear Distortion 1.50%
Intermediation Distortion 0.5%
Amplitude Frequency Characteristic 1.5db
Waveform Distortion in a Short Time 3.50%
Cluster Frequency Delay Characteristics 6ns
Brightness/Color Time Delay Offset 2.5ns
Brightness/Color Time Delay Gain 8%
Video Input Signal 1Vp-p /75Ω
Video Output Signal 1Vp-p /75Ω
Audio Input Signal 1Vp-p
Audio Output Signal 1Vp-p
The Maximum Inputs(can be controlled) 32
The Maximum Receiver/drivers(can be controlled) 128
The Maximum disposed keyboard 8
Memory Retention in Power failure 10 years
Operable Key main keyboard with 35 keys, sub keyboard with 23 keys
Operation temperature -10℃～ +35℃
Power AC 220V ±10% 50/60 Hz (master matrix)
Master matrix Weigh 4.5kgs
Master matrix Power 30 W
Dimension 430(W)×90(H)×303(L)mm
Installation Mode desktop or 19-inch standard rack

Applications:

For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
