50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0
Specifications
Brand Name :
LINK-MI
Model Number :
LM-EX46B
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-EX46B
Transmission Distance :
100m (Max) under Non-USB Mode, 50m(Max) under USB Mode
Connector on Transmitter :
1x HDMI Input , 1x USB B Type, 1x RJ45 Output
Connector on Receiver :
1x RJ45 Input, 1x HDMI Output, 4x USB A Type
Support Video Format :
DTV/HDTV: 480P/576P/720P/1080P VESA:640x480, 800x600, 1024x768, 1280x1024, 1680x1050, 1280x720, 1360x768
USB Transmit speed :
480M bit/s (Max)
Dual POC :
Supported
USB version :
USB 2.0 pass through
Description

50M HDMI+USB KVM Extender up to 50m 100m Support Dual POC USB2.0

Introduction

LINK-MI LM-EX46B allows HDMI signals to be transmitted over a Single CAT5e/6 cable. It can extend 1080p@60Hz over single Cat5e/6. The transmit distance is up to 100m over single Cat5e/6 cable, and 50m over single Cat5e/6 cable under USB mode. It supports PCM2.0 and USB2.0 pass through.

Features

1. Each set includes one transmitter and one receiver
2. Transmit distance up to 100m over single Cat5e/6 cable under Non-USB mode
3. Transmit distance up to 50m over single Cat5e/6 cable under USB Mode
4. USB 2.0 pass through
5. Support Full HD 1080P@60Hz, and bandwidth 1.65Gbps.
6. Support Dual POC(RX powered by TX or TX powered by RX)
7. HDCP1.4 compliant
8. Support PCM2.0, audio sampling rate: 44KHz, 48KHz.

Specification

Operating Temperature Range

-10 to +45℃(14 to +113℉)

Storage Temperature Range

-15 to +70℃(5 to +158℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Support Video Format

DTV/HDTV: 480P/576P/720P/1080P

VESA:640x480, 800x600, 1024x768, 1280x1024,

1680x1050, 1280x720, 1360x768

Connector on Transmitter

1x HDMI Input , 1x USB B Type

1xRJ45 Output

Connector on Receiver

1xRJ45 Input

1x HDMI Output, 4x USB A Type

Transmission Distance

100m (Max) over single Cat5e/6 /24AWG/Solid under Non-USB Mode

50m(Max) over Single Cat5e/6 /24AWG/Solid under USB Mode

USB Transmit speed

480M bit/s (Max)

Power consumption

4.8W( Max)

Dimension (L×W×H)

L84.2xW75.2xH27.5mm

Net Weight

Transmitter:257.5g ; Receiver:257.5g
Note: Specifications are subject to change without notice

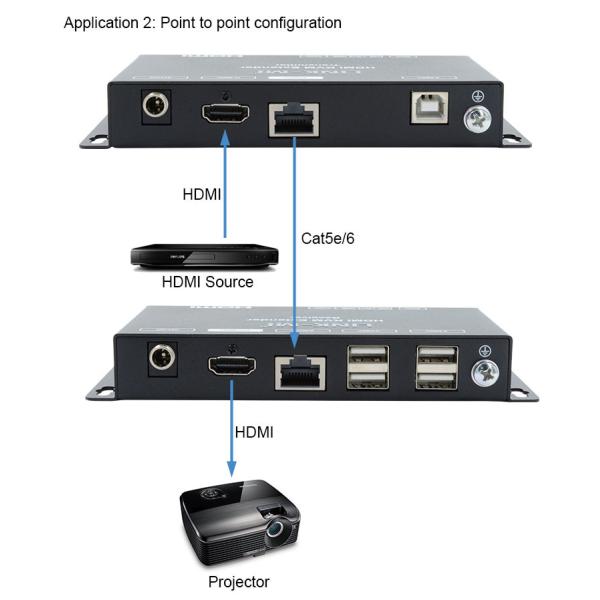

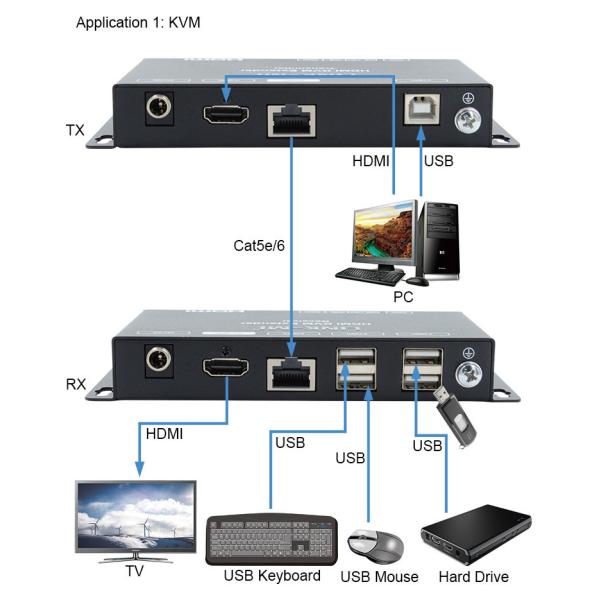

Connection Diagram

50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0

50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0

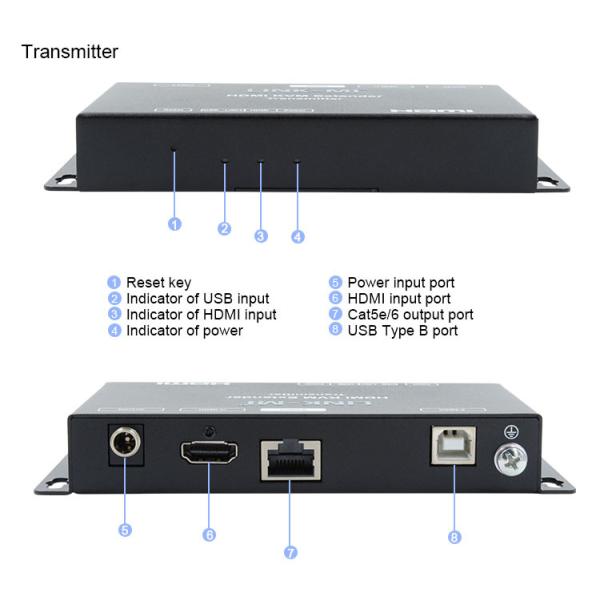

Panel Description

50M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.050M HDMI USB KVM Extender Up 50m 100m Support Dual POC USB2.0

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-EX46B 50M HDMI+USB KVM Extender.pdf
