Specifications
Brand Name :
LINK-MI
Model Number :
LM-EX100-4K2K
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-EX100-4K2K
HDMI signal :
HDMI1.4, HDCP2.2, support for the CEC, 24-bit color depth, 4Kx2K
Supported resolution :
480i/480P/576i/576P/720P/1080i/1080P/3D/4K×2K
Audio :
LPCM,DTS-HD,Dolby True HD
Network cable :
CAT5E,CAT6,CAT6A,CAT7
Infrared return :
Support 20-60kHz broadband infrared remote control, support bi-directional infrared transmission
RS-232 Transmission :
Supports serial RS-232 bi-directional transmission
Power supply :
DC12V/ 2 A *1pcs
Description

100M HDMI Extender 4K Ultra Video Extender

Introduction

LINK-MI LM-EX100-4K2K is a high-performance HDMI Image transmission devices, its main feature is a network cable HDMI Images without compression, delay-free transmission 100M distance, maximum support 4k*2k ultra high resolution transmission while supporting IR Bidirectional transmissionof infrared remote controlsignals and RS-232 Serial bi-directional transmission of the signal.

Features

1. Supports full HD 1080p@60Hz,3D, 4K × 2K/30HZ HDMI Signal transmission
2. 1080p Full HD signal through Cat6a Lines can be extended 100m
3. Theuse of HDBaset Technical support HDMI Imagesignal extendered without compression and without delay;
4. Support bi-directional infrared signals back to the serial port RS-232 Two-way signal transmission
5. SupportHDCP/CEC/24 -Bitcolordepth
6. Support uncompressed audio LPCM and compressed audio DTS-HD, Dolby True HD
7. The use of POC Power supply, just as one end of the extender or the receiver for 12V power supply

Specification

Project Parameter description
HDMI signal HDMI1.4, HDCP2.2, support for the CEC, 24-bit color depth, 4Kx2K
Transfer Protocol HDBaseT
Supported resolution 480i/480P/576i/576P/720P/1080i/1080P/3D/4K×2K
Audio LPCM,DTS-HD,Dolby True HD
Network cable CAT5E,CAT6,CAT6A,CAT7
Transmission distance CAT5e/CAT6 100m Up to 1080P60Hz 36bpp
70m 1080p@60Hz 48bpp,1080p60Hz 3D,4K×2K 30Hz
CAT6a/CAT7 110m Up to 1080P60Hz 36bpp
75m 1080p@60Hz48bpp,1080p@60Hz3D,4K×2K 30Hz
Infrared return Support 20-60kHz broadband infrared remote control, support bi-directional infrared transmission
RS-232 Transmission Supports serial RS-232 bi-directional transmission
Power supply DC12V/ 2 A *1pcs
Power consumption No more than 8w
Product size 101 (L)× 79 .5(W)×2 6 (H)mm *2pcs
Body material Metal
Net weight TX: 250 g RX: 250 g
Color Titanium Crystal grey
Note: Specifications are subject to change without notice
Connection Diagram

1080P 3D Extender HD Extender 100M HDbaset HDMI Extender

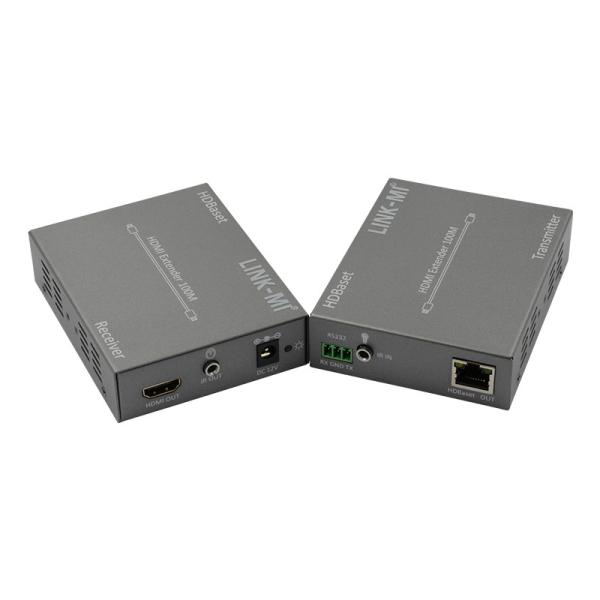

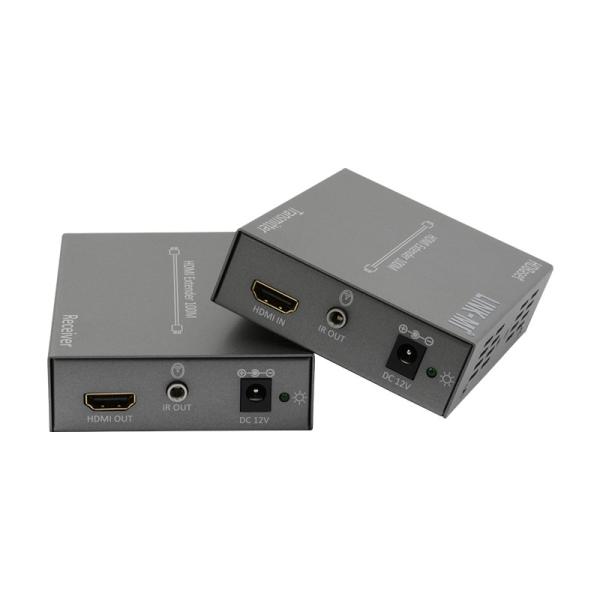

Panel Description
