400M Wireless 3G SDI/HDMI Extender Wireless Video Transmission Kits

Introduction

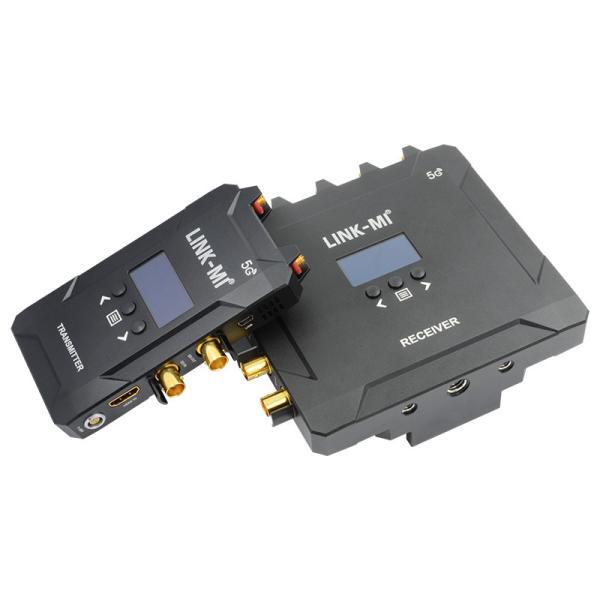

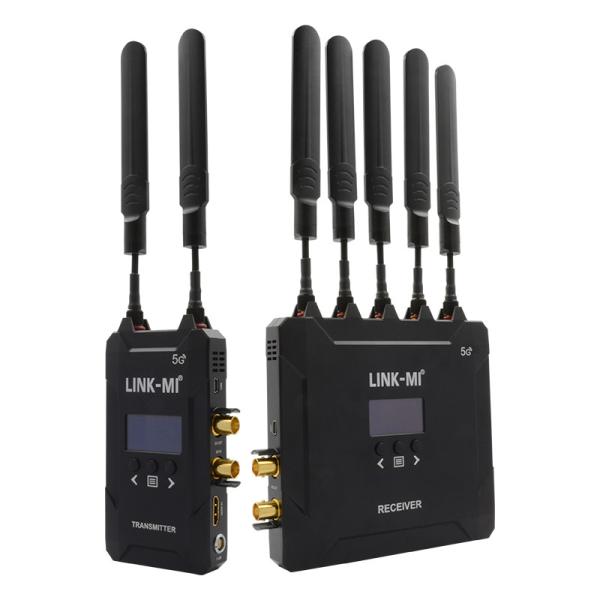

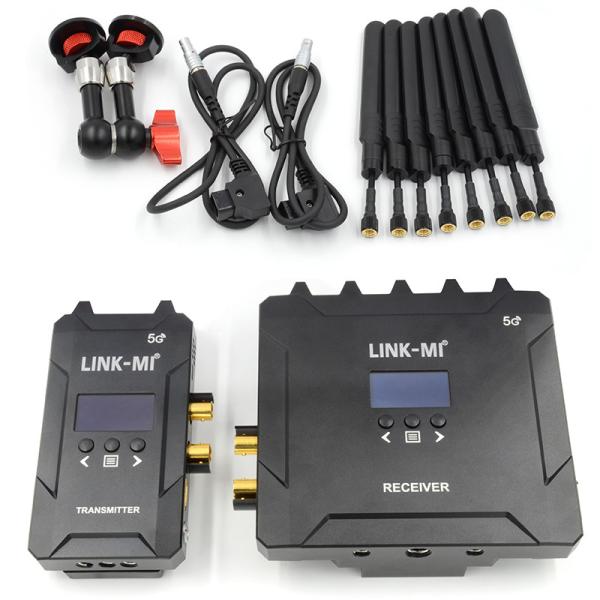

LINK-MI LM-WHS400 This Wireless HD HDMI/SDI transmission products that use the highest level of wireless communication technology enable transmit lossless, uncompressed, no-delay 3G SDI or full HD HDMI signals .This product includes a transmitter and a receiver, and is equipped with 3G/HD SDI interface and full HD HDMI interface. The transmitter has two antennas and the Receiver has five antennas.The antennas’ operate frequency is 5.1GHz~5.9GHz, and the frequency can be changeable through the software configuration to adopt the wireless regulatory requirements in the world.

Features

1. HDMI 1.3 compliant
2. Support SMPTE 425M , SMPTE 424M, SMPTE 292M Standard
3. Support HDMI and 3G-SDI inputs and outputs
4. Support point to point, and point-to-multiple network topology
5. Support resolutions up to 1080P@60Hz, zero delay and no compression
6. Support 5GHz ISM frequency band, maximum 10 frequency channels selected by buttons with OLED display
7. Maximum transmission range is 1300ft(400 meters)
8. Support display DC power status, video status and receiver RSSI by OLED
9. Support Wide range power supply,range from 7V to 36V
10. Support Optional Sony F970,V-mount and G-mount, battery buckle, convenient for field battery install and replacement
11. Support ±8 KV ESD protection level (HBM, Contact discharge)
12. Industrial case, stable, reliable and convenient

Specification

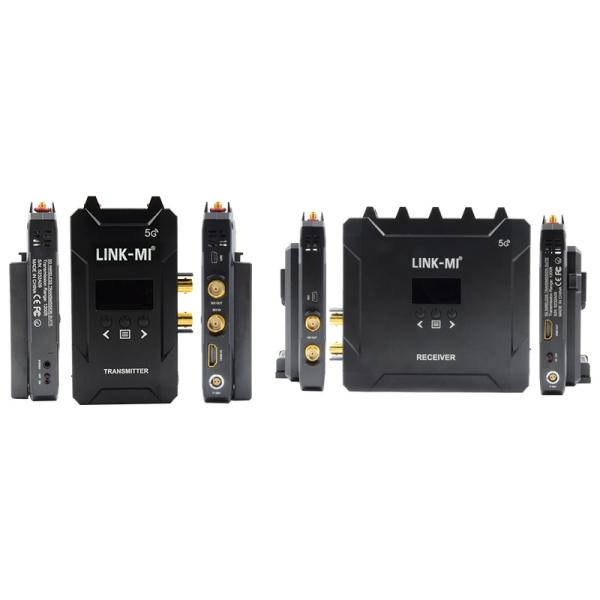

Panel Description

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-WHS400 400M Wireless HDMI SDI Transmitter Recei...
