Specifications
Brand Name :
LINK-MI
Model Number :
LM-DT200F
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-DT200F
Standards :
HDMI 1.3; HDCP 1.2
Resolution range :
Up to 1920X1080P@60Hz
Interface :
SC connector
Wavelength :
TX:1310nm/RX:1510nm
Interface bandwidth :
155Mbps
Transmission distance :
Standard: 20km
Connector :
HDMI-A
Description

HDMI Fiber Optic Extender 2KM 1080p HDMI Extender over Fiber

Introduction

LINK-MI LM-DT200F The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

1. Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
2. Support video resolution up to 1920*1080@60Hz;
3. Compliance with HDMI 1.3 and HDCP 1.2 standard;
4. High compatibility, can auto-match source and display device;
5. Built-in automatic adjustment system, make the image smooth, clear and stable;
6. Built-in ESD protection system;
7. Simple to install, plug and play.

Specification

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution range Up to 1920X1080P@60Hz
Connector HDMI-A
Impedance 100Ω
Optical fiber Interface SC connector
Fiber type Single Mode
Wavelength TX:1310nm/RX:1510nm
Interface bandwidth 155Mbps
Transmission distance Standard: 20km;
Other Power supply The power adapter: DC 5V
Power dissipation MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 102*72*25mm
The warranty 1 year free warranty
Note: Specifications are subject to change without notice
Connection Diagram

2KM 1080p HDMI Extender Fiber Optic Extender HDMI Extender Over Fiber

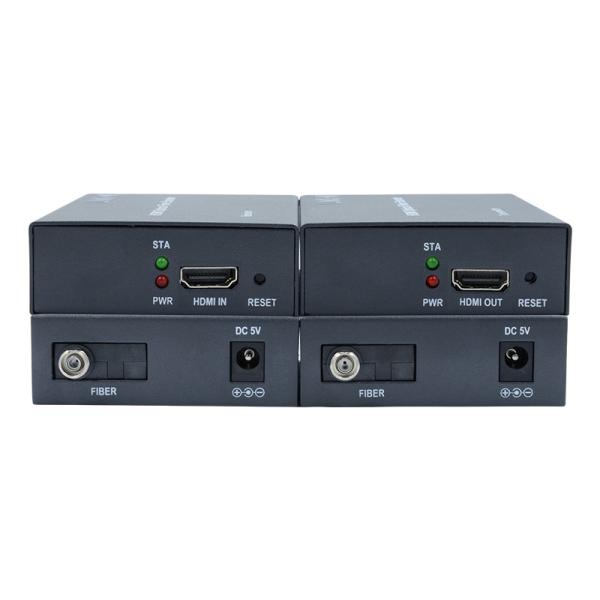

Panel Description

2KM 1080p HDMI Extender Fiber Optic Extender HDMI Extender Over Fiber
