60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID
Specifications
Brand Name :
LINK-MI
Model Number :
LM-EX74
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-EX74
Transmission Distance :
60m single CAT5e/6 without signal loss
Input Ports :
1x HDMI, 1x Ethernet
Output Ports :
1x HDMI, 1x Ethernet
Support Video Format :
DTV/HDTV:720P/1080i/1080P 3D video
Video Output :
HDMI
Support Audio Format :
DTS-HD Master Audio,Dolby true-HD etc.
Other Functions :
Support 3D, EDID, bi-direction POC
Description

60m HDMI Extender over Single Cat5e/6 Support 1080P60Hz POC EDID

Introduction

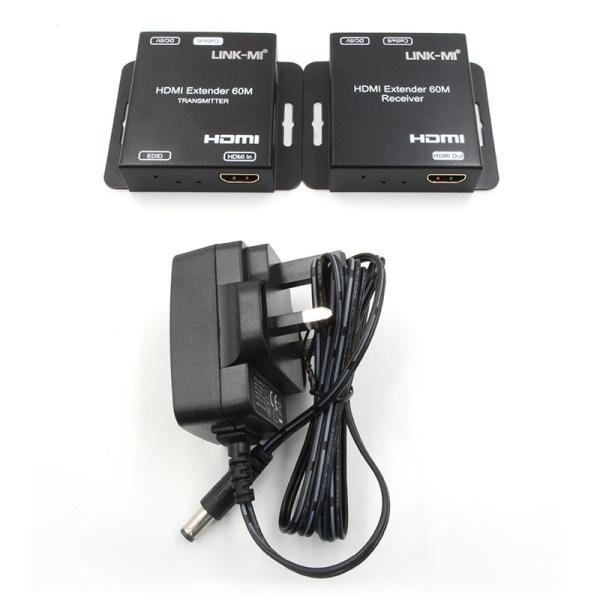

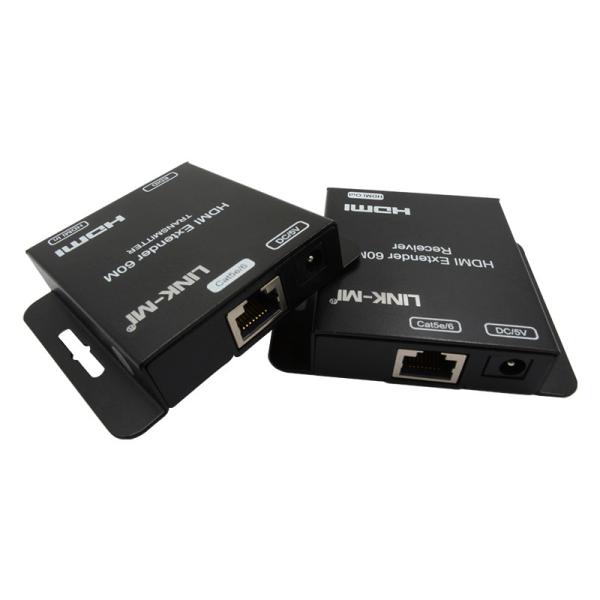

LINK-MI LM-EX74 60M HDMI Extender transmits digital audio and video over Cat5e/6 Cable. Its transmission distance is up to 60m. It comes with POC, EDID function.

Features

1.High definition resolution up to Full HD 1080p@60hz YUV4:4:4
2.Transmit over 60m CAT5e/6 without signal loss.
3.Supports 3D.
4.EDID management function with Copy and Built-in EDID.
5.Support LPCM up to 7.1/24bit/192khz.
6.Support bi-direction POC(60m distance when RX powered by TX; 30m when TX; powered by RX).
7.Support factory reset function.

Specification

Operating Temperature Range

0 to +40°C (32 to +104°F)

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Support Video Format

DTV/HDTV:720P/1080i/1080P 3D video

Video Output

HDMI

Support Audio Format

DTS-HD Master Audio,Dolby true-HD etc.

Transmission Distance

60m single CAT5e/6 without signal loss

Power consumption

2watts(Maximum)

Dimension (L×W×H)

TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm

Net Weight

232g
Note: Specifications are subject to change without notice

Connection Diagram

60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID

Panel Description

60m HDMI Extender Over Single Cat5e Cat6 Support 1080P 60Hz POC EDID

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-EX74 60m HDMI Extender 1080P POC.pdf
