Reasonable Structure Temperature Humidity Test Chamber For Home Appliance
Reasonable Structure Temperature Humidity Test Chamber For Home Appliance
Specifications
Model Number :
TZ-HW225
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Name :
Temperature Humidity Test Chamber
Structure :
Reasonable Structure
Temperature    Calibration Point :
+23 °C and +80 °C
Studio Size(mm) :
500*600*750
Standard Machine Size(mm) :
1050*1100*1700
Small Vertical External Size(mm) :
Home Appliance
Description

Reasonable Structure Temperature Humidity Test Chamber For Home Appliance

Temperature Humidity Test Chamber INTRODUCION

Temperature Humidity Test Chamber also known as environmental testing machine, testing various materials heat , cold, drying, moisture resistance.Suitable for testing quality of electronic, electrical, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Temperature Humidity Test Chamber FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.

Temperature Humidity Test Chamber PARAMETERS

Model TZ-HW225 Temperature Humidity Test Chamber
Internal Volume(L) 225L
Dimensions Studio Size(mm) 500*600*750
Standard Machine Size(mm) 1050*1100*1700
Small Vertical External Size(mm) 1200*950*1850
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 300
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"
Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%～100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

 +23 °C and +80 °C

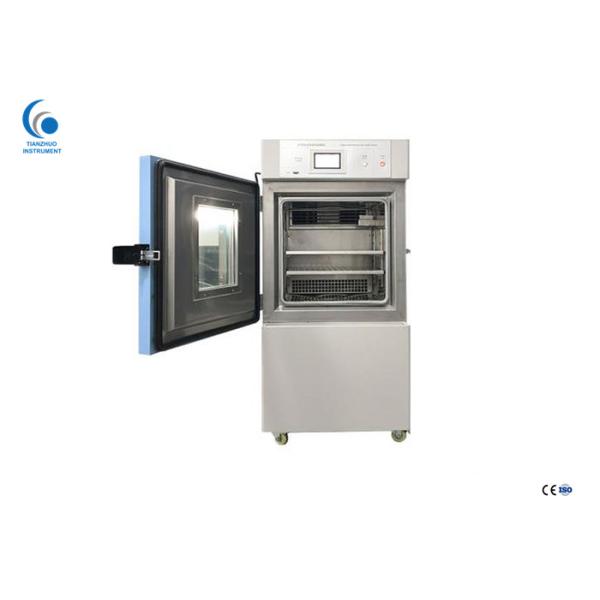

Temperature Humidity Test Chamber PHOTOS


Reasonable Structure Temperature Humidity Test Chamber For Home Appliance
