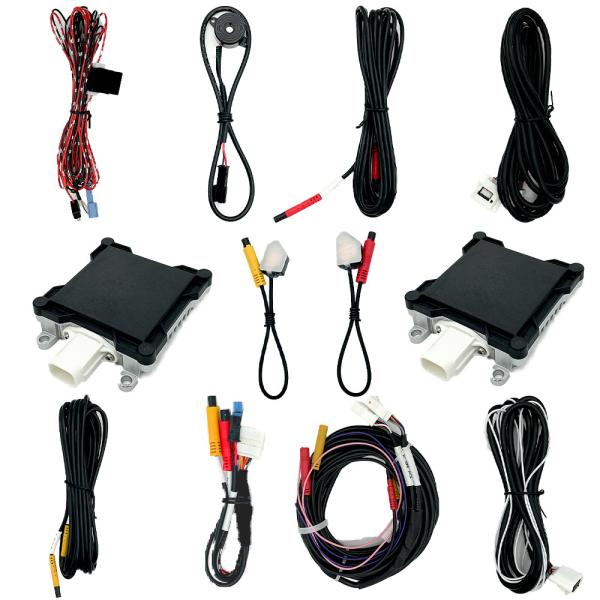

LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System
LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System
LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System
LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System
Specifications
Brand Name :
RoadPassion
Model Number :
BSD-77G
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5
Price :
USD 50-80
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
5000 sets/month
Delivery Time :
3-5 working days
Packaging Details :
Retail Box
Production name :
Car Blind Spot Detection System
Functions :
Blind spot monitoring system
Features :
Lane change alert
Features2 :
Door open warning
Vehicles :
Universal Fit
Waterproof Level :
IP67
Description

LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System

When a vehicle is changing lanes, due to the blind spot in the rearview mirror when turning, the driver cannot fully determine the information about the vehicle behind him based only on the information in the rearview mirror. Bad weather (rain, snow, fog, hail, etc.) makes it more difficult for drivers to make judgments and increases the risk of collision or scratching when changing lanes. Install the vehicle's Blind-Spot Collision-Avoidance Assist (BCA) at the left and right rearview mirrors or other sensors to sense rear road information. If there are vehicles, pedestrians, bicycles and other moving objects approaching from behind, the blind-spot monitoring system will The system will remind the driver through audible and visual alarms or brake in an emergency.

Blind Spot Monitoring System Parameters:

Operating Voltage 9-16v
Operating temperature -40~80℃
Power consumption 2.5W
waterproof level IP67
frequency band 79GHz
refresh rate 20Hz
Communication Interface TTL serial port
Housing size 28*28*22.5mm
Number of transceiver channels 1Tx4Rx
Pitch beamwidth ±25°
Horizontal beamwidth ±55°
distance resolution 0.2m
speed resolution 0.2m/s

* Features:
Double Radar Sensor
1. BSD blind spot monitoring
2. DOW parking door opening warning
3. RCTA reversing warning
4. AOA active overtaking warning
5. Blind spot following and speed warning
6. LCA lane change warning
7. 77G intelligent detection 70 meters

LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System

LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System

Packing & Shipping

Shipping is via express, sea, flights, with retails package as belows:
LCA BSD 77GHZ Double Radar Driving Warning Assist System Car Blind Spot Detection System
