Car Rearview Camera Interface with Night Vision For AUDI MIB A3 Car Video Interface

Car rearview camera video interface is a special fit kits for car original screen retrofit. The interface typically consists of a set of cables and connectors that allow the display to receive input from external front or rear camera to show the surrouding to assist parking. This kits fits for AUDI MIB MIB2 A3 A4 A5 A6 A7 system. The purpose of the interface is to provide the driver with a clear view of what is behind the car, making it easier to reverse and park safely. The interface typically consists of a set of cables and connectors that link the camera to the display, as well as additional features that enhance the functionality of the system.

Car Video Camera Interface Functions

1. Provide a clear view of what is behind the car: The camera captures a live video feed of the area behind the car and displays it on a screen in the dashboard or rearview mirror, allowing the driver to see obstacles and other vehicles.

2. Help with parking and reversing: The interface may provide on-screen guidelines or other visual aids to help the driver park and reverse safely.

3. Integrate with parking sensors: The interface may integrate with parking sensors that detect obstacles and provide audio or visual alerts to the driver.

4. Activate automatically: The camera may activate automatically when the car is shifted into reverse gear, so the driver does not need to manually turn it on.

5.

Car Video Interface Parameter

Car Video Interface Specifications:

Inputs

• CVBS input (for front view camera) x 1
• CVBS input (for rear view camera) x 1
• CVBS input (external video source) x 1

Outputs

• CVBS output (for car central console screen) x 1
• Select output x 1

Power

• Input power: 12 V DC
• Consumption power: 5 W, Max

Car Video Interface Camera Interface Functions:

• Auto-switching Back up Camera Input
• Front & Rear input
• Active (moving) Guidelines
• PDC overlay
• Auto-switching when reverse in selected
• Works for cars with or without park assist
• No programming required
• compatible with all European spec vehicles

Car Video Interface Kit Includes

1 x mian unit
1 x LVDS cable
1 x Canbus power cable
1 x RCA connector

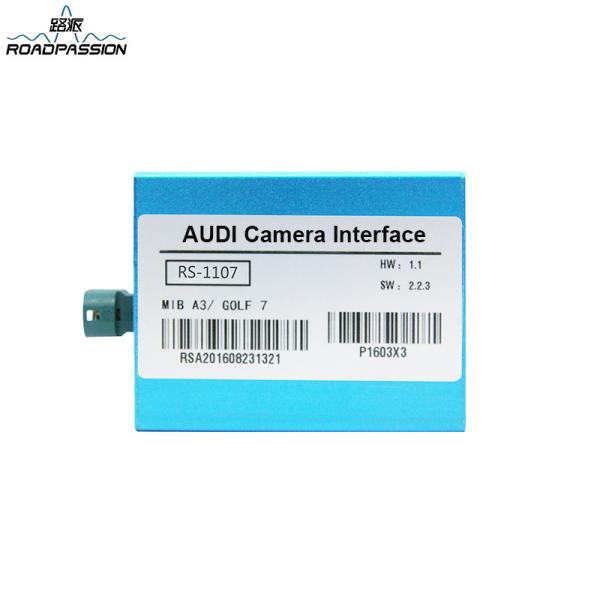

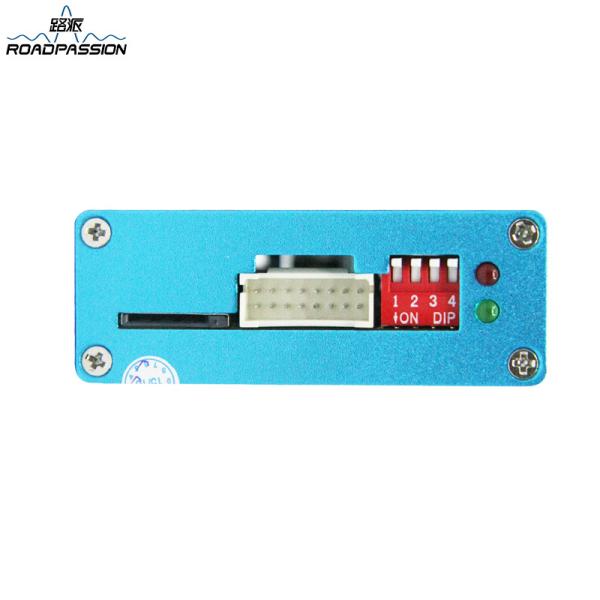

Car Video Interface Kit Picture

Packing & Shipping

Shipping Terms

Cooperative with DHL, FedEx, UPS, EMS, ect. Delivery time is around 4-11 working days.
