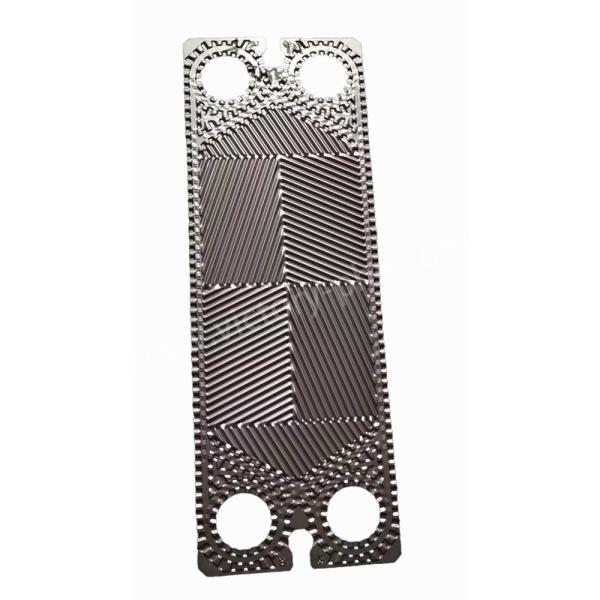

Corrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization Processes
Corrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization Processes
Corrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization Processes
Corrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization Processes
Specifications
Brand Name :
Victory
Model Number :
S1、S4、S4A、S7A、S8、S8A、S9A、S14、S14A、S17、S19A、S20A、S21A S22A、S31A、S22、SW26、S37、SW40A、S41、S41A、S42、S42A、S62、S43 S47、SN51、S52、S64、S65、S81、S100、S121、SF123、SF160
Certification :
ISO SGS
Place of Origin :
China
MOQ :
10pcs
Price :
50 - 500pieces $18-$27
Payment Terms :
T/T, L/C, Western Union,
Supply Ability :
50000pcs per month
Delivery Time :
15-20 days
Packaging Details :
Plywood Box
Model :
Heat Exchanger Plate
After Warranty Service :
Online support
Heat Transfer Area :
10-5000m²
Keyword :
heat exchanger plate
Plate Pattern :
Chevron
Plate Type :
Gasket Plate Heat Exchanger
Plates Material :
SUS304 316 316L 310S 904
Surface Treatment :
powder coating,Clean,quiet
Veneer Area :
customized
Gasket Material :
NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene
Description

Product Description

Corrosion Resistant Heat Exchanger Plates GX180,GC16,GC26,GC42,GC51 for Pharmaceutical Sterilization Processes

Heat Exchanger Plates

  • Preservation of Product Quality: The plates facilitate precise temperature control during sterilization, helping to maintain the quality, potency, and efficacy of pharmaceutical products throughout the manufacturing process.
  • Hygienic Operation: Designed with sanitary features, the plates minimize the risk of contamination, safeguarding product purity during sterilization procedures crucial for pharmaceutical manufacturing.
  • Efficient Heat Transfer: The optimized design of these plates ensures efficient heat transfer, enabling fast and effective sterilization processes, resulting in increased productivity and reduced downtime.
  • Durable and Long-lasting: With corrosion-resistant materials, these plates deliver durability and reliability, offering a long service life in the demanding environment of pharmaceutical manufacturing.

  • Applications:

  • Sterilization of equipment, vessels, and components in pharmaceutical manufacturing
  • Heat exchange processes within cleanroom environments for pharmaceutical production
  • Steam heating and sterilization applications in pharmaceutical formulations and API manufacturing
  • Controlled temperature processes for the sterilization of pharmaceutical products before packaging
  • Heat treatment processes for ensuring the sterility of pharmaceutical compounds and products

  • Our GC008, GL13, GC16, and GX18 Heat Exchanger Plates are tailor-made for sterilization processes in pharmaceutical manufacturing, offering efficient, reliable, and compliant solutions to meet the specific needs of maintaining sterility in pharmaceutical production environments.

Brand Model

GC008,GL13,GC16,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91

GX100,GX140,GX145,GX180,GC16,GC26,GC42,GC51

Material Specification
Stainless Steel

SUS304 316 316L 310S 904
Titanium and titanium-palladium alloy TAi TAi-Pd
Hastelloy

C276 D205 B2G
Nickel Ni200 Ni201
Molybdenum 254

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate material Suitable for fluids
Stainless steel (SUS304.316, etc.) Purified water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd) Sea water, salt water, salt compounds
20Cr,18Ni,6Mo(254SMO) Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Nickel (Ni) High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G) Concentrated sulfuric acid, hydrochloric acid, phosphoric acid

Plate heat exchanger plate thickness configuration

  • AISI 304 is usually 0.4 or 0.5 mm thickness
  • AISI 316 is always 0.5 and 0.6 mm
  • 254 SMO (high alloy) typically 0.6 mm
  • Titanium plates are always 0.5 and 0.6 mm
  • Some have thicker plates (for high pressure applications)
  • Some PHEs have 0.4 mm (low pressure operation)
  • Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

  • Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
  • Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
  • Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
  • Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
  • Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
  • Corrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization ProcessesCorrosion Resistant Heat Exchanger Plates GX180、GC16、GC26、GC42、GC51 for Pharmaceutical Sterilization Processes
