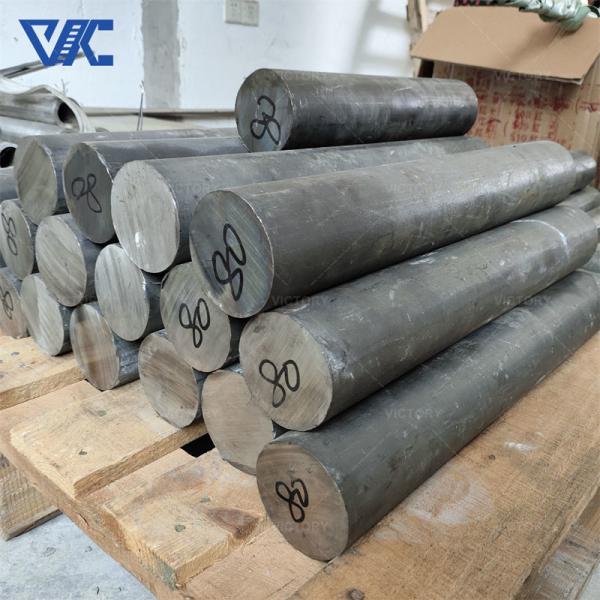

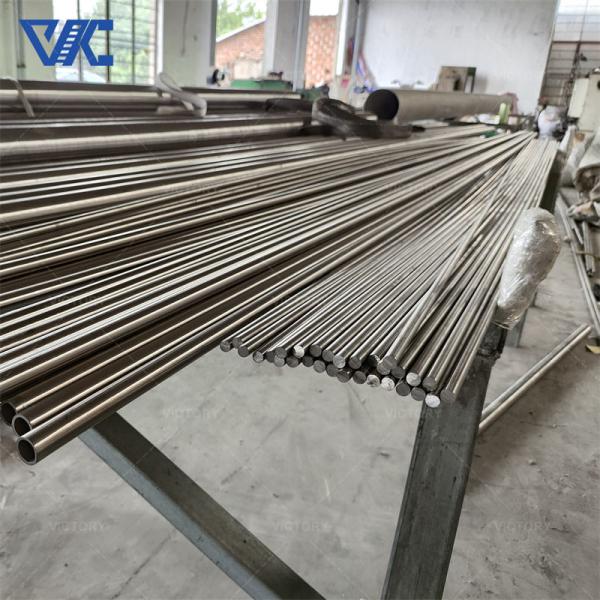

Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Excellent Oxidation Resistance Stock Dia 10~200mm UNS N0771 Nickel Alloy 718 Inconel 718 Bar / Rod
Specifications
Brand Name :
Victory
Model Number :
Inconel 718
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
30 Kg
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
20~40 Days
Packaging Details :
Spool Carton box, Coil package with polybag,then in woodencase
Name :
Nickel-Chromium-Columbium (Niobium)-Molybdenum nickel alloy inconel 718 wire rod bar for aerospace
Material :
Nickel Chromium Iron
Ni (Min) :
50~55%
Density :
8.24 g/cm3
Melting point :
1260-1320°C
Elongation (≥ %) :
25 %
Thermal conductivity :
15.9 W/m·K
Finishing :
Bright,Oxided, acid white
Application :
Construction, Industry Oil, piping systems
Yield strength :
550MPa
Tensile strength :
910 MPa
Hardness :
≤ 363 HB
Standard :
ASTM, ASME
size :
6~200mm
shape :
Round, Square, flat
Description

Inconel 718 alloy

Inconel 718 rods are a versatile and high-performance material suitable for demanding applications across various industries. Their unique properties make them ideal for use in environments where strength, corrosion resistance, and high-temperature stability are critical

Inconel 718 rod application:

Inconel 718 rods are utilized in a variety of demanding applications due to their exceptional strength, corrosion resistance, and ability to perform at elevated temperatures. Common applications include:

Aerospace:

Components in jet engines (e.g., turbine blades, seals, and casings).
Structural parts in aircraft that require high strength-to-weight ratios.
Oil and Gas:

Downhole tools and equipment used in drilling operations.
Valves, pumps, and tubing that operate in corrosive environments.
Nuclear Industry:

Components for reactors and other systems that must withstand radiation and extreme conditions.
Gas Turbines:

Parts that require high-temperature resistance, such as combustion chambers and turbine components.
Medical Devices:

Surgical instruments and implants where corrosion resistance and strength are critical.
Industrial Equipment:

Used in various machinery and components exposed to high stress and corrosive environments.
Marine Applications:

Components that must resist seawater corrosion, such as fasteners and fittings.
Automotive:

High-performance engine components that require durability and heat resistance.

Parameter:

Chemical Properties of Inconel 718

Nickel (plus Cobalt) .......................................................50.00-55.00

Chromium......................................................................17.00-21.00

Iron .....................................................................................Balance

Niobium (plus Tantalum)....................................................4.75-5.50

Molybdenum .....................................................................2.80-3.30

Titanium.............................................................................0.65-1.15

Aluminum ..........................................................................0.20-0.80

Cobalt ...............................................................................1.00 max.

Carbon..............................................................................0.08 max.

Manganese .......................................................................0.35 max.

Silicon ...............................................................................0.35 max.

Phosphorus.....................................................................0.015 max.

Sulfur...............................................................................0.015 max.

Boron ..............................................................................0.006 max.

Copper..............................................................................0.30 max

Density 8.19g/cm³ 0.296 lb/in³
Melting point 1260-1336 2437°F

SPECIFICATIONS
Form
ASTM
Rod,bar and wire
B 166
Plate,sheet and strip
B 168, B 906
Seamless pipe and tube
B 167, B 829
Welded pipe
B 517, B775
Fitting
B 366
Billet and bar for reforging
B 472
Forging
B 564

Inconel series

Steel grade
Inconel 600
Inconel 601
Inconel 625
Inconel 718
Inconel 725
Inconel X-750
Corresponding brand
N06600/2.4816/1Cr15Ni75Fe8/NS312/CY40
N06601/2.4851/1Cr23Ni60Fe13AI/NS313
N06625/2.4856/0Cr20Ni65Mo10bN4/NS336
N07718/2.4668/GH4169
N07725
N07750/2.4669/GH4145
Chemical composition%
C≤
0.150
0.100
0.100
0.080
0.030
0.080
Mn≤
1.00
1.00
0.50
0.35
0.35
1.00
P≤
/
/
0.015
0.015
0.015
/
S≤
0.015
0.015
0.015
0.015
0.010
0.010
Si≤
0.50
0.50
0.50
0.35
0.20
0.50
Cr≤
14.0-17.0
21.0-25.0
20.0-23.0
17.0-21.0
19.0-22.5
14.0-17.0
Ni≤
≥72.0
58.0-63.0
≥58.0
55.0-59.0
55.0-59.0
≥70
Mo
/
/
8.0-10.0
2.8-3.3
7.0-9.5
/
Cu
≤0.50
≤1.50
/
≤0.30
/
≤0.50
N
/
/
/
/
/
Nb
/
/
3.15-4.15
4.75-5.50
2.75-4.00
0.70-1.20
other
Fe:6.0-10.0
Al:1.0-1.7
Co:≤1.0Ai:≤0.40Tr:0.40Fe:≤5.0
AI:0.20-0.80Ti:0.65-1.15B≤0.006
Tr:1.0-1.7AI≤0.35
Co:≤1.0 AI:0.4-1.0Tr:0.25-2.75Fe:5.0-9.0

Customize size as below

Shape
Size(mm)
WIre
0.5-7.5
Rod/Bar
8.0-200
Strip
(0.5-2.5)*(5-180)
Tube
custom made
Plate
custom made

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
