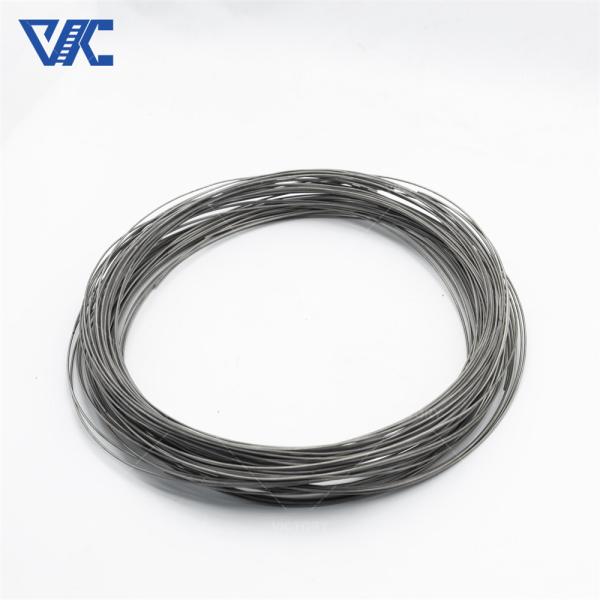

Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Matte Surface Coil Roll 1mm 2mm 3mm 5mm 10mm Inconel 600 718 X750 625 Spring Wire
Specifications
Brand Name :
Victory
Model Number :
Inconel 600
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
10 Kg
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
20~40 Days
Packaging Details :
Inconel 600 rod packed in Spool Carton box, Coil package with polybag,then in woodencase
Name :
High-temperature nickel alloy inconel 600 718 625 wireused in the aerospace industries
Material :
Nickel Chromium Iron
Ni (Min) :
72%
Density :
8.47 g/cm3
Melting point :
1,370-1,425°C
Elongation (≥ %) :
30 %
Thermal conductivity :
15.9 W/m·K
Finishing :
Bright,Oxided
Application :
Construction, Industry Oil, piping systems
Yield strength :
240 MPa
Tensile strength :
550 MPa
Hardness :
≤ 160 HB
Standard :
ASTM, ASME
size :
6~500mm
shape :
Round, Square, flat
Description

Comparison between Inconel 600 and Inconel X750 spring wire

Chemical Composition:

Inconel 600: Ni 72%, Cr 15.5%, Fe 8%, minor amounts of Cu, Mn, Si, C, etc.
Inconel X750: Ni 70%, Cr 15.5%, Fe 7%, Nb 0.7%, Ti 2.5%
Mechanical Properties:

Inconel 600:
Tensile Strength: 690-930 MPa
Yield Strength: 275-480 MPa
Elongation: 30-50%
Inconel X750:
Tensile Strength: 860-1100 MPa
Yield Strength: 550-760 MPa
Elongation: 20-35%
Applications:

Inconel 600: Mainly used for corrosion-resistant components in the chemical industry, nuclear reactors, aerospace, etc.
Inconel X750: Mainly used for high-temperature springs, bolts, valves, and other applications requiring high strength and heat resistance.
Fabricability:

Inconel 600: Relatively good hot forging and room temperature workability.
Inconel X750: Poorer hot forging performance, requiring specialized manufacturing processes.

How many kinds of inconel materials?

Inconel 600:

Composition: Ni 72%, Cr 15.5%, Fe 8%, minor amounts of Cu, Mn, Si, C, etc.
Known for its excellent corrosion resistance and high-temperature strength.
Inconel 625:

Composition: Ni 58%, Cr 21.5%, Mo 9%, Fe 5%, Nb 3.6%, other minor elements.
Offers exceptional resistance to corrosion and oxidation, as well as high strength.
Inconel 718:

Composition: Ni 53%, Cr 19%, Fe 18.5%, Nb 5.1%, Mo 3%, Ti 0.9%, Al 0.5%.
Widely used for its superior strength, corrosion resistance, and weldability.
Inconel X-750:

Composition: Ni 70%, Cr 15.5%, Fe 7%, Nb 0.7%, Ti 2.5%.
Designed for high-strength applications at elevated temperatures.
Inconel 601:

Composition: Ni 60.5%, Cr 23%, Fe 14.1%, Al 1.4%.
Offers excellent oxidation resistance and strength at high temperatures.

Parameter:

Chemical Properties of Inconel 600

C Cr Ni+Co Al Ti Fe Nb+Ta Mn Si P S Cu
≤0.15 14.0～17.0 ≥72 ≤0.35 ≤0.50 6.0～10.0 ≤1.0 ≤1.0 ≤0.5 ≤0.04 ≤0.015 ≤0.5

ITEM θ/℃ TENSIE STRENGTH HBS
σb/MPa σP0.2/MPa δ5/% φ/%
BAR/ROD 20 ≥585 ≥240 ≥30 - 134～217
RING 20 ≥520 ≥205 ≥35 - ≥187
HOT ROLL PLATE 20 ≥550 ≥240 ≥35 ≥40 -
900 ≥95 ≥45 ≥40 ≥50 -
COLD ROLLED SHEET 20 ≥550 ≥240 ≥30 - -
900 ≥90 ≥40 ≥60 - -
COLD ROLLED SHEET 20 ≥550 ≥200 ≥30 - -
STRIP 20 ≥550 ≥240 ≥30 - -
WIRE 20 - HV≤151

Shape
Size(mm)
WIre
0.5-7.5
Rod/Bar
8.0-200
Strip
(0.5-2.5)*(5-180)
Tube
custom made
Plate
custom made

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
