Specifications
Brand Name :
VICTOR
Model Number :
85A
Certification :
CE
Place of Origin :
CHINA
MOQ :
500pcs
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
10000pcs available
Delivery Time :
5 to 30 days
Packaging Details :
Color box 30pcs/Carton; Carton Size:47*37.5*50.6cm
Price :
USD10.8/pc
Color :
Orange and Black
Size :
172mm*85mm *45mm
Product Name :
Digital Multimeter
Model No. :
85A
Product Packing :
Color box
Packing Details :
30pcs/Carton; Carton Size:47*37.5*50.6cm
Display :
LCD Display with Backlight, 3999 (3 3/4 digit)
Brand :
VICTOR
Description

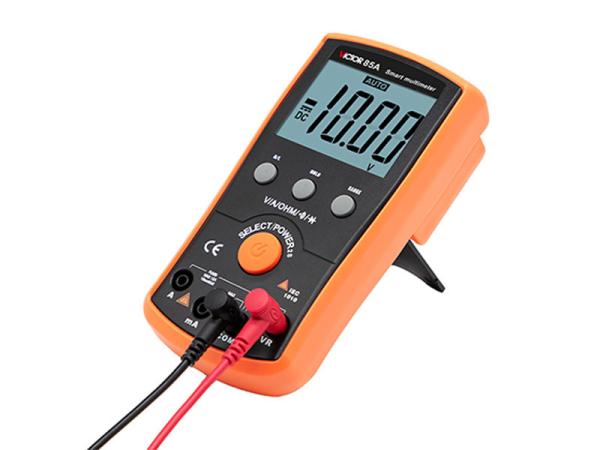

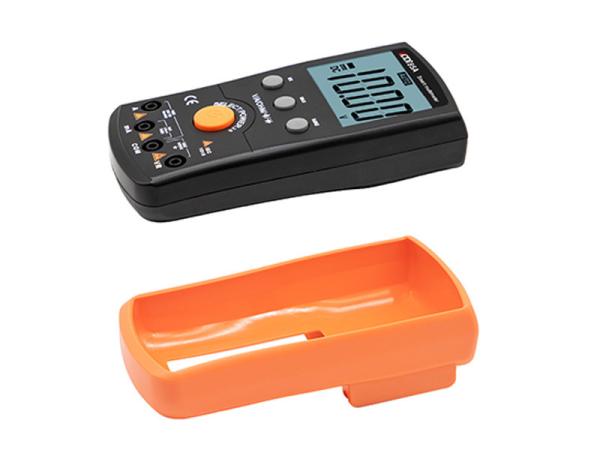

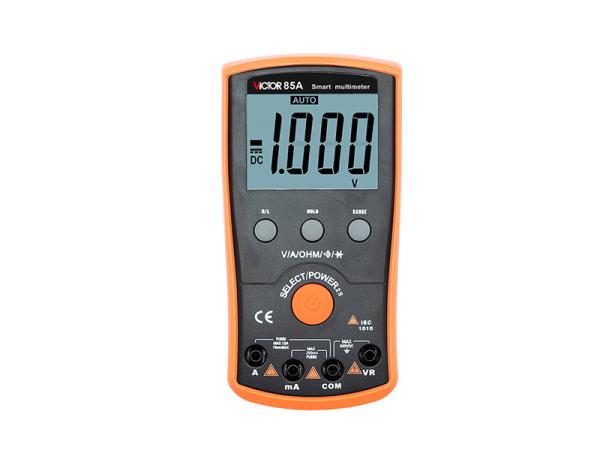

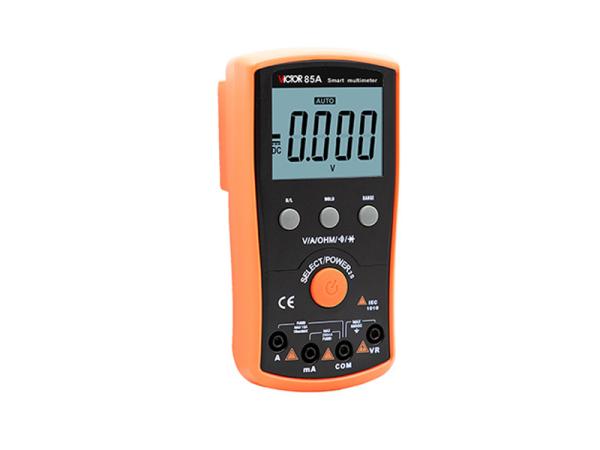

High Precision Intelligent VICTOR Digital Multimeter Anti Burn Ammeter

VICTOR 85A Multimeter Digital High Precision Automatic Intelligent Multi-Function Anti-Burn Ammeter Voltage Current Ohm Tester​

1. INTRODUCTION

The handheld smart instrument is driven by battery without the range/function knob. It has the function of measuring DCV, ACV, DCA, ACA, Resistance, Diode and Buzzer.

2. GENERAL SPECIFICATIONS

Display: Max. indication 4000

Sampling rate: Approx. 3 times/second

Polarity indication: Auto negative polarity indication

Over range indication: “ OL” displays

Low battery Indication

Operating temperature: (0 ~ 40)℃, humidity<75%RH.

Storage temperature: -10℃~50℃, humidity<80%RH.

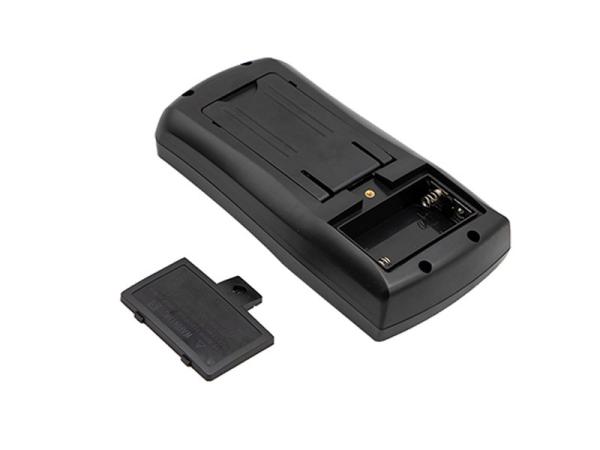

Power: 2*1.5V AAA batteries

Dimension: 172mm×85mm ×45mm.

Weight: approx 320g .

Accessories: ------Operation manual, test leads, batteries

Technical parameter
Modle 85A 85 B
basic skills Range Precision
DC voltage 4V/40V/400V 4V/40V/400V 土(0.5%+7)
600V 600V 土(1.0%+6)
AC voltage 4V/40V/400V 4V/40V/400V 土(0.8%+10)
600V 600V 士(1.0%+10)
DC current 40mA 40mA 土(0.8%+10)
400mA 400mA 士(1.2%+5)
10A 10A 士(2.0%+10)
AC current 40mA 40mA 土(1.2%+5)
400mA 400mA 土(1.8%+5)
10A 10A 士(3.0%+10)
Resistance 400Ω/4kQ/40kΩ/400kΩ 400Ω/4kΩ/40kΩ/400kΩ 土(1.0%+5)
40MΩ 40MΩ 士(1.2%+10)
Capacitance * 4nF 土(5.0%+40)
40nF/400nF/4uF/
40uF/400uF/20mF		 土(5.0%+10)
Temperature * -20°C~1000°C
-4°F~1832°F		 士(1.0%+5)
士(1.5%+15)
Features
Display LCD digital display
Operation Full intelligent automatic range
Max display 4000
Diode test √
HOLD √
NCV √
Backlight √
Overload OL displayed on LCD
Low voltage √
On-off beep √
Operating°C 0~40°C <75%RH
Store (°C) -10~50°C <80%RH
Shut-down √
Unit symbol √
Resistance 10MΩ
Frequency response 40~1KHz
Power supply AAA 1.5V*2
Product Size 172*85*45mm
Weight 320g
