Specifications
Working Temperature :
-10～50℃
Display :
5999 Counts
Measurement Type :
AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode
Automatic Power Off :
15 Minutes
AC Voltage :
1000V
Frequency :
50Hz
DC Voltage Range :
1500V
Display Type :
Digital
Storage Temperature :
-10～50℃
AC DC Current :
60A/600A/1000A
Range Selection :
Automatic
Sampling Rate :
about 3 times / sec
Operation Way :
Manual Range
Material :
Plastic, metal, silica gel
Power Source :
9V Battery
Brand Name :
VICTOR
Model Number :
615B
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
24pcs
Price :
USD22/pc; above 1000pcs, price is negotiable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
3 to 35 days
Packaging Details :
CTN SIZE(cm):48*27.5*41 Color box ,24pcs/Carton ,13KG/Carton
Description

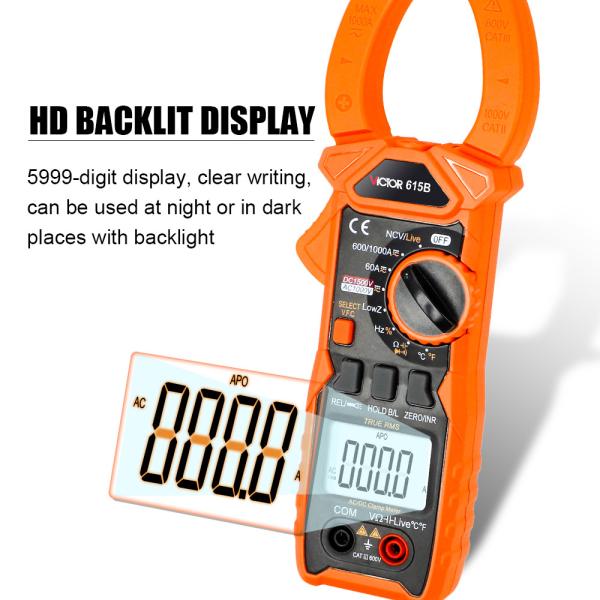

VICTOR 615B DC 1500V AC DC 1000ATrue RMS Digital Clamp Multimeter 5999 Counts with Live NCV V.F.C Surge current Clamp meter

This instrument is a 6000 counts hand-held automatic range True RMS clamp digital meter. The circuit design of the meter takes the large-scale integrated circuit ∑/△ analog-to-digital converter (ADC) as the core, and it has the full-range overload protection circuit. It can be used to measure AC and DC voltage, low-pass filter VFC voltage, low impedance Low Z voltage, AC and DC current, resistance, diode, continuity test , capacitance, frequency, duty cycle, temperature and other parameters, and has data retention, relative value measurement, surge current measurement function, torch function, NCV function, live wire judgment, under-voltage display and automatic shutdown function.

GENERALSPECIFICATION

1. Max. Indication: 5999, 3 times / sec.

2. Polarity indication: The positive and negative polarities automatically display.

3. Over range indication: LCD displays OL or -OL

4. Low battery indication: symbol displays

5. Operation temperature: 0～40℃, relative humidity <75%

6. Storage environment:-10℃~50℃, relative humidity <85%RH;

7. Power:Four1.5V AAA battery LR03

8. The Max. opening size of the clamp head: Diameter 40mm

9. Max. measuring current wire: Diameter 39mm

10. Size: 230×75×40 mm

11. Weight: approx.313g (including batteries)

Display method
LCD display
5999 count
Max/Min
√
Reset key
√
Low Z
√
Diode measurement
√
Working temperature and humidity
(0-40) ℃ <75%
Data retention
√
Storage temperature and humidity
(-10~50)℃<80%
NCV measurement
√
Automatic shut-down
About 15 minutes
Fire detection
√
Over-range display
the highest digit displays OL
