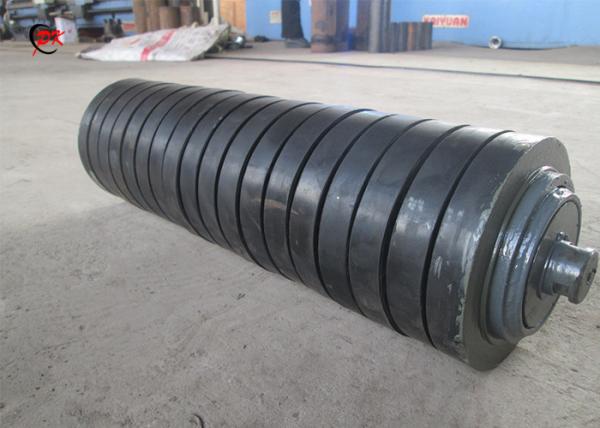

Industrial Conveying idler Cement Conveyor Belt System Impact Rollers
Industrial Conveying idler Cement Conveyor Belt System Impact Rollers
Industrial Conveying idler Cement Conveyor Belt System Impact Rollers
Industrial Conveying idler Cement Conveyor Belt System Impact Rollers
Specifications
Brand Name :
PK
Model Number :
Φ76/Φ89/Φ108/Φ133/Φ159/Φ194
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province, China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30000 Pieces/Year
Delivery Time :
20 Days
Packaging Details :
Standard Wooden Package
Product name :
Heavy duty industry conveyor belt roller
Material :
Rubber & Steel
Usage :
Conveyor
Standard :
GB, CEMA
Shaft Material :
20# Steel or As Requested
Length :
Customised
Bearing Brand :
SKF/FAG/LYC/HRB or As Requested
Seal Type :
Labyrinth-grease Seal or As Requested
Density :
0.5-2.5 t/m³
Applied Belt Width :
500mm/650mm/800mm/1000mm/1200mm/1400mm/1600mm/1800mm/2000mm or As Requested
Installation :
Turning
Advantage :
Conveyor roller factory direct
Description

Industrial Conveying idler Cement Conveyor Belt System Impact Rollers

Introduction
Rollers are important components of belt conveyors, there are many types and large quantities, one is impact roller. The role of the rollers is to support the conveyor belt and material weight. The roller must be flexible and reliable. Rubber impact rollers are used at inlet of belt conveyor to reduce the impact of blanking on the conveyor belt. Impac roller is installed under the receiving section of the conveyor to reduce the impact of the material on the conveyor belt during blanking to extend the service life of the conveyor belt.
Industrial Conveying idler Cement Conveyor Belt System Impact Rollers
Features

1. The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.

2. Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.

3. Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.

4. The casing is manufactured with highly composite, anti corrosive alloy.

5. The roller is lubricated and free from maintenance.

6. Woring life expectancy is up to 30,000 hours or more, depending on usage.
7.Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments


Production Technology and Process

Industrial Conveying idler Cement Conveyor Belt System Impact Rollers

Technical Parameter (Parts)

Diameter

(mm)

Length

(mm)

Pipe Thickness

(mm)

Shaft Diameter

(mm)

 Bearing Model Seal Type
63.5 200 3 15 6203/4C Labyrinth
600 3 15 6203/4C Labyrinth
76 200 3 20 6204/4C Labyrinth
250 3 20 6204/4C Labyrinth
600 3 20 6204/4C Labyrinth
750 3 20 6204/4C Labyrinth
89 200 3.5 20 6204/C4 Labyrinth
250 3.5 20 6204/C4 Labyrinth
315 3.5 20 6204/C4 Labyrinth
600 3.5 20 6204/C4 Labyrinth
750 3.5 20 6204/C4 Labyrinth
950 3.5 20 6204/C4 Labyrinth
108 250 3.5 25 6205/C4 Labyrinth
315 3.5 25 6205/C4 Labyrinth
380 3.5 25 6205/C4 Labyrinth
465 3.5 25 6205/C4 Labyrinth
530 3.5 25 6205/C4 Labyrinth
600 3.5 25 6205/C4 Labyrinth
750 3.5 25 6205/C4 Labyrinth
950 3.5 25 6205/C4 Labyrinth
1150 3.5 25 6205/C4 Labyrinth
1400 3.5 25 6205/C4 Labyrinth
1600 3.5 25 6205/C4 Labyrinth
133 250 4 25 6305/C4 Labyrinth
315 4 25 6305/C4 Labyrinth
380 4 25 6305/C4 Labyrinth
465 4 25 6305/C4 Labyrinth
530 4 25 6305/C4 Labyrinth
600 4 25 6305/C4 Labyrinth
700 4 25 6305/C4 Labyrinth
800 4 25 6305/C4 Labyrinth
950 4 25 6305/C4 Labyrinth
1150 4 25 6305/C4 Labyrinth
1400 4 25 6305/C4 Labyrinth
1600 4 25 6305/C4 Labyrinth
159 315 4.5 30 6306/C4 Labyrinth
380 4.5 30 6306/C4 Labyrinth
465 4.5 30 6306/C4 Labyrinth
530 4.5 30 6306/C4 Labyrinth
600 4.5 30 6306/C4 Labyrinth
700 4.5 30 6306/C4 Labyrinth
800 4.5 30 6306/C4 Labyrinth
1150 4.5 30 6306/C4 Labyrinth
1400 4.5 30 6306/C4 Labyrinth
1600 4.5 30 6306/C4 Labyrinth
Note: All the parameters are for reference only, we can design and manufacture as per your requirements.
