Circular Tumbler Sieving Machine Powder Screener Fine Separator
Circular Tumbler Sieving Machine Powder Screener Fine Separator
Circular Tumbler Sieving Machine Powder Screener Fine Separator
Circular Tumbler Sieving Machine Powder Screener Fine Separator
Specifications
Brand Name :
EVERSUN
Model Number :
EYBS-type
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000sets/year
Delivery Time :
5-8 work days
Packaging Details :
Standard export wooden package
Name :
Tumbler Sieving Machine
Colour :
Optional
Layer :
1-5
Motor :
OLI/Siemens Motor
Material :
SUS304/316L,Carbon steel
Voltage :
110-480v
Description

Product introduction

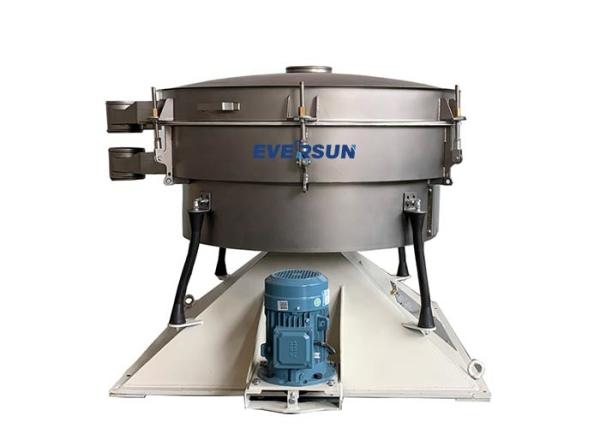

Powder Screener Fine Separator Circular Tumbler Sieving Machine

The simplest screening is double-handed screening, the tumbler sieving machine is the mechanical simulation of this, it is the most effective simulation of the effective principle of manual screening movement (screening accuracy, efficiency, screen life are 5-10 times of the conventional round screen), in line with all fine and ultrafine range of powder and particulate materials, especially suitable for difficult to handle materials.

Feature:

1. Up to 5 times the output per unit area;

2. Accurate to 6 stages of separation, screening efficiency up to 90%-99%;

3. Using silicone rubber ball, ultrasonic and other efficient cleaning device system, screen hole will not be blocked. Closed dust

removal, safe operation;

4. The acceleration is 4-5 times lower than the vibrating screen, the life of the screening parts is improved and the maintenance

is reduced;

5. Noise is lower than 75 decibels. Optimize the balance of gravity and texture, and the dynamic load of foundation is low.

Product parameter

Model Screen mesh area(m2)

Screen mesh

Screen slope

(degree)

Frequency

(r/min)

Power

(kw)

Amplitude

(mm)
EYBS-600 0.28 ≤1000 0-10 220-280 0.75 20-70
EYBS-1000 0.66 ≤1000 0-10 220-280 1.5 20-70
EYBS-1200 0.98 ≤1000 0-10 220-280 2.2 20-70
EYBS-1500 1.67 ≤1000 0-10 220-280 3 20-70
EYBS-1800 2.37 ≤1000 0-10 220-280 4 20-70
EYBS-2000 2.89 ≤1000 0-10 220-280 4 20-70
EYBS-2600 5.3 ≤1000 0-10 220-280 5.5 20-70
More type can be customized


Circular Tumbler Sieving Machine Powder Screener Fine Separator

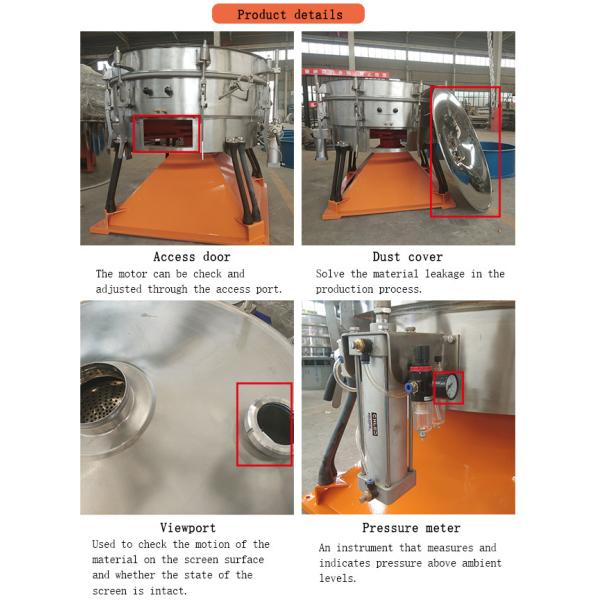

Details display

Circular Tumbler Sieving Machine Powder Screener Fine Separator
