High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
Specifications
Brand Name :
EVERSUN MACHINERY
Model Number :
XZS
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 5-15 work days
Packaging Details :
Standard export wooden package
Name :
Vibratory Sifter
Colour :
As you like
Layer :
1~5
Motor :
Vibration motor
Screen mesh number :
2~635
Application :
Food, Chemical, Pharmacy, Mining.,etc
Description

High-Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder

Introduction

The vibrating sieve is used to screen foreign matter and excessive particles and remove them from the product to ensure the correct quality of powder or liquid products. The screening is fine to 500 mesh, and the net cleaning device of bouncing ball is added to reduce the sticky net. It is divided into three materials: carbon steel, stainless steel and plastic, and 2-6 different grades are realized in one operation.

Vibrating sieve is a kind of high precision fine powder screening machinery, its high efficiency, convenient to change the mesh, mesh is not blocked and other characteristics by the majority of screening users welcome. Whether the material is dry or wet, fine or rough, is heavy or light, 0-500 mesh can be filtered, whether it is liquid, or slurry 0-600 mesh can be filtered. EVENSUN "vibrating sieve series products are also equipped with special screen cleaning device, cleaning method can choose bouncing ball, power brush, ultrasonic system, can reduce the blocking rate to low, net rate and processing accuracy can be effectively improved. We have the ability to make special models so that customers have more choices.

Technical Parameter

Name High-Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
Model XZS-400/600/800/1000/1200/1500/1800
Power(KW) 0.18-3.0
Effective screening diameter(mm) 360-1730
Screen mesh 2-635 mesh

Layer

 1~5

Dimensions

Depending on the model or customized

Material

Stainless steel 304, 316L, carbon steel
Application

Powder, granules, mucus
Customized service Available

High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder

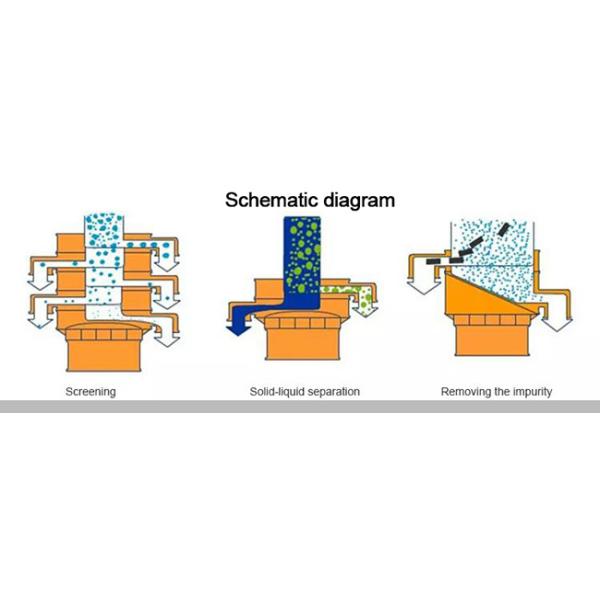

Working principle

Vibrating sieve body in the vibrator under the vibration of the complex vibration, forcing the material in the sieve machine to form a vortex orbit, this vortex is very useful for the screening of materials. Adjusting the relative position of the upper and lower hammer can change the trajectory of the material on the screen surface, extend or shorten the residence time of the material on the screen surface, so as to achieve the set screening effect.

High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder

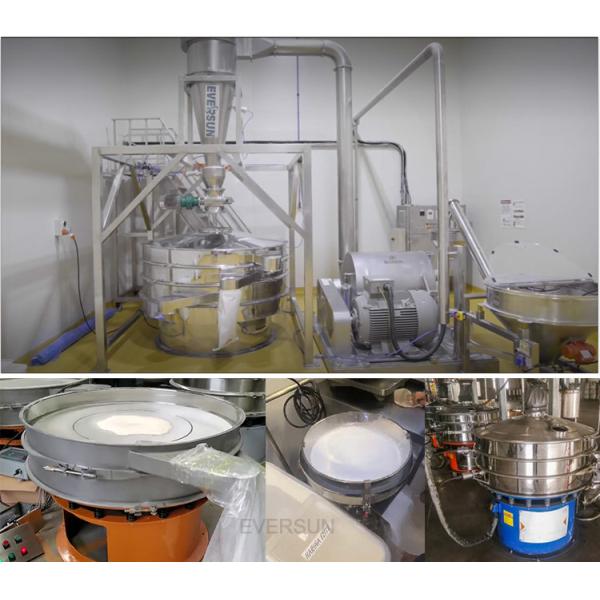

Customer site

It is widely used in food, beverage, medicine, chemical industry, plastics, abrasives, ceramics, papermaking, nano materials and other industries for classification, impurity removal, mixing and filtration, solid-liquid separation of the ideal equipment, suitable for any powder, particles, mucus screening filtration. The picture below shows some of our customer applications, if you want to know more about our products, please contact us.

High Efficiency Customized Vibrating Sieve Separator For Gravel Metal Powder
