Single-phase electric easy operation grain suction machine
Single-phase electric easy operation grain suction machine
Specifications
Brand Name :
hongyuan
Model Number :
XL-100,160-6,8,10,12
Certification :
ISO CE
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
USD 650~1150 /Set
Payment Terms :
T/T
Supply Ability :
300 Set/Sets per Month
Delivery Time :
Shipped in 2 days after payment
Packaging Details :
In standard ply wood boxes
Name :
easy operation grain suction machine
Grand :
HongYuan
Type :
Screw Conveyor
Pipe Material :
premium pvc material
Condition :
New
Voltage :
Requirement, 220v/380v
Capacity :
5-15t/h
Application :
Rice, wheat, corn and soybean
length :
6m, 8m, 10m, 12m
Modle :
XL-100,160
Description
Single-phase electric easy operation grain suction machine

Product Description

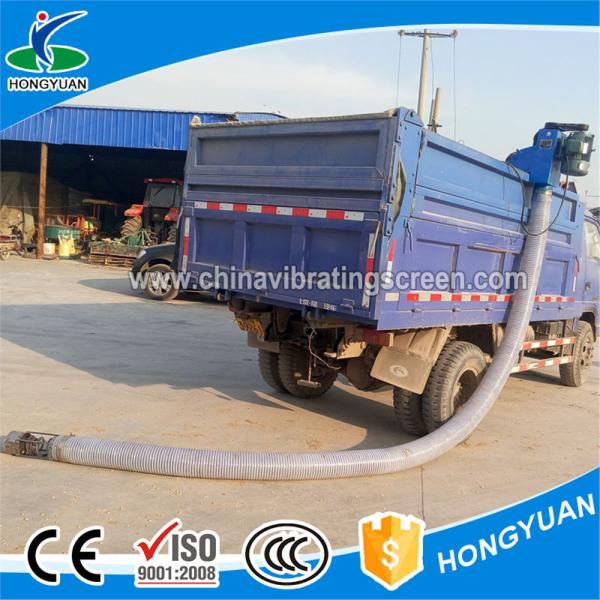

Single-phase electric easy operation grain suction machine is a new designed for grain suction, entrucking, stack transfer and storage in village.

It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperativies.

Single-phase electric easy operation grain suction machine

Detailed Images

Structure of screw elevating conveyor

  • Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
  • Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
  • Driving device: Motor, belt pulley, transmission belt and safe cover.
  • Inlet device and discharge device.

Single-phase electric easy operation grain suction machine

Single-phase electric easy operation grain suction machine

Product Features & Procedure

Single-phase electric easy operation grain suction machine is easy to carry and operated and is one convenient portable grain inhaling suction equipment.

  • It has the feature of small volume, large power, convenient to carry.
  • The power source can adopt the single phase which is applied for home use.
  • Man power saving ideal machine for truck loading.
  • Large capacity at 10-15 ton/h
  • Customized length is supported(6meters,8meters,10meters is available)
  • Lifting height is 3 meters

Single-phase electric easy operation grain suction machine

Single-phase electric easy operation grain suction machine

Single-phase electric easy operation grain suction machine

packing and delivery

Single-phase electric easy operation grain suction machine

Single-phase electric easy operation grain suction machine

Technical Data

Model No. Length (Meters) Pipe diameter

Loading

Capacity(t/h)

 Motor phase-power(kw) Installation Structure Conveying height
XL-100- 6 6 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 8 8 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 10 10 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 12 12 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 6 6 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 8 8 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 10 10 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 12 12 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
