Specifications
Brand Name :
Jianqiao
Model Number :
IS-5/10/25/50/100/200/300
Certification :
CE
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300
Delivery Time :
1
Packaging Details :
Wooden case
Name :
Shock Test System
Control and measurement system :
OKS01
Features :
Digital control
Power requirements :
220V±10% single phase AC 50Hz 2kVA
Standard :
GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200
Description

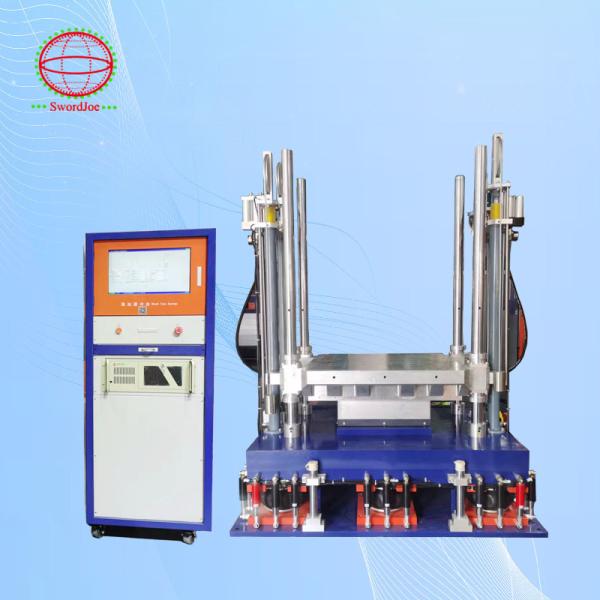

50kg Hydraulic Shock Test System for ISTA Package Test and Battery Pack Test

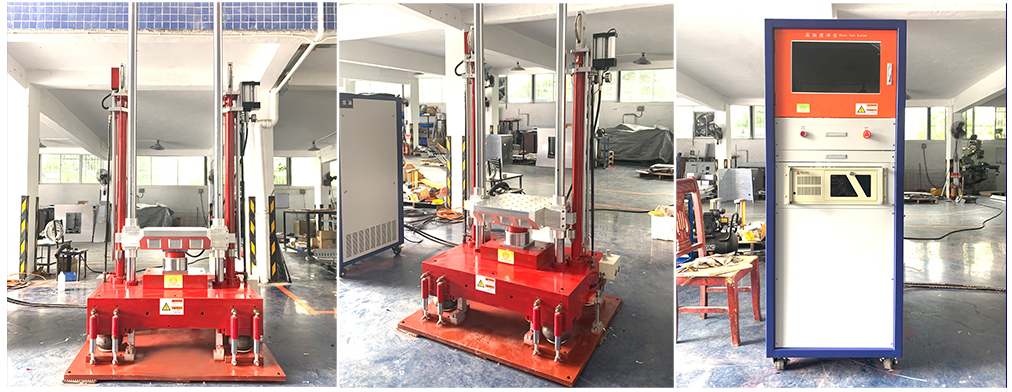

50kg Hydraulic Shock Testing System For ISTA Package Test And Battery Pack Test
Hydraulic Shock Test System For ISTA Package Test
The Shock Test System is designed for precise measurement and evaluation of product packaging impact resistance. Featuring an efficient platform damping device, this system minimizes ground impact forces, eliminating the need for special foundations and simplifying installation.
The system can be configured with a high acceleration generating device for small specimens requiring high acceleration shock tests. For test pieces smaller than 200x200mm, it achieves impact test indices of 5000-50000m/s² peak acceleration with duration of 0.2ms~1ms. This allows immediate evaluation of product impact resistance and usage environments.
Capable of generating half sine wave, back peak saw-tooth wave, and trapezoidal wave impacts, the system accurately simulates shock conditions to help analyze and improve product structures. We provide advanced impact systems to meet all mechanical impact requirements.
Key Features
  • Low pressure cylinder: Provides safe, reliable reaction force and braking power with easy maintenance
  • Dual cylinder brake mechanism: Ensures reliable locking with two simultaneous braking systems
  • Cylinder/segmented spring drive: Impact overload controlled through air pressure adjustment
  • Digital control: Precise impact height adjustment with excellent repeatability
  • High-performance composite table: Built-in waveform amplifier for stable, user-friendly operation
Technical Specifications
Model IS5 IS10 IS25 IS50 IS100 IS200 IS300
Maximum test load (kg) 5 10 25 50 100 200 300
Table size (mm*mm) 120*120 200*200 350*350 500*500 700*700 750*750 800*800
Shock waveform (m/s²)
Half sine waveform 100~30000 100~20000 100~10000 100~6500 150~6000 150~5000 150~3500
After peak saw-tooth 100~1000 100~1000 100~1000 100~1000 100~1000 150~1000 150~1000
Trapezoidal wave 150~1500 150~1500 150~1200 150~1200 150~1200 150~1000 100~1000
Pulse duration time (m/s)
Half sine waveform 0.5~20 0.6~20 0.8~20 1.5~20 2~20 2.5~20 3~20
After peak saw-tooth 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Trapezoidal wave 6~20 6~20 6~20 6~25 6~25 6~25 6~25
Maximum impact distance (mm) 1550 | 1500 | 1400
Anti-secondary impact device Air pressure friction brake Hydraulic friction brake
Table weight (kg) 1300 1500 2800 3800 4350 4900 6250
Dimensions (L*W*H)(mm) 900*450*2600 1000*500*2700 1100*800*2800 1100*750*2800 1350*850*2850 1420*920*2900 1480*1000*2950
Control and measurement system OKS01
Power requirements 220V±10% single phase AC 50Hz 2kVA
Hydraulic pump station power requirements 380V±10% 3 phases AC 50Hz
Hydraulic pump station power consumption (kVA) 2.5 2.5 4 4.6 4.6 6.2 6.5
Applicable standard GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200
