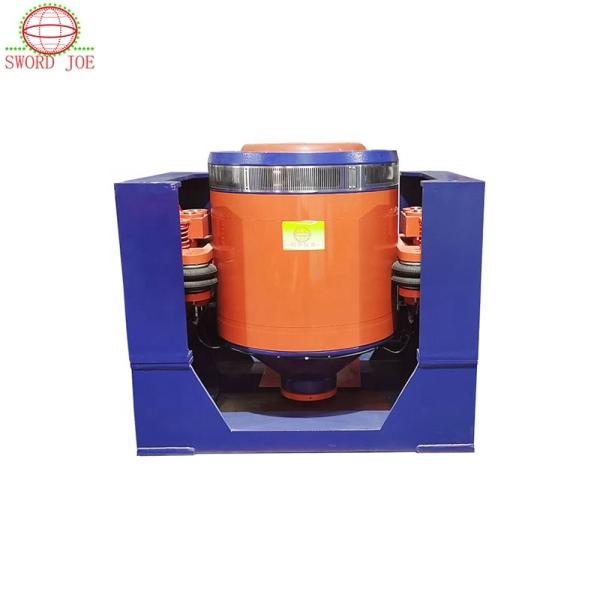

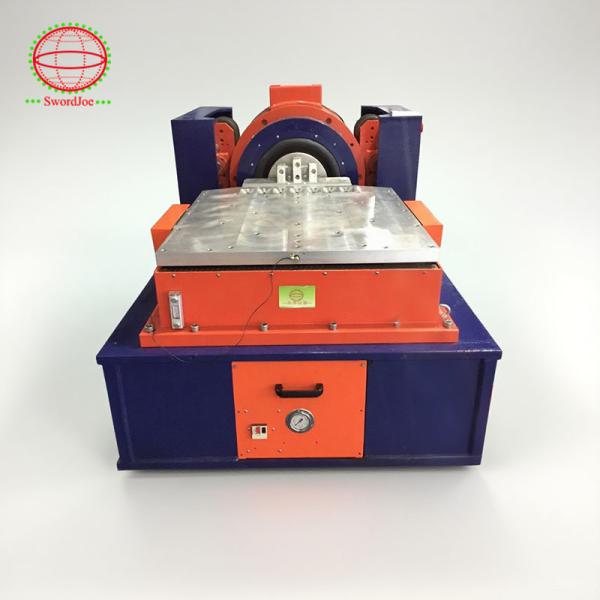

Electron Dynamic Vibration Test Machine TV Home Appliance Vibration Test
Electron Dynamic Vibration Test Machine TV Home Appliance Vibration Test
Specifications
Brand Name :
Jianqiao
Model Number :
JQA-031-150
Certification :
CE
Place of Origin :
China
MOQ :
1
Supply Ability :
300 sets
Packaging Details :
Wooden case
Frequency :
2000Hz
Sine force :
3kN /300kg/674.43lbf
Random force :
3kN /300kg/674.43lbf
Shock force :
6kN /600kg/1348.86lbf
Channel :
2/4/8/16
Maximum acceleration :
100g
Maximum displacement :
100mm (4"）/76mm (3")/51mm (2")
Maximum load :
120KG
moving parts mass :
3KG
Armature diameter :
150mm
Description
Electron-Dynamic Vibration Test Machine for ISTA1A/2A/3A/6A Package Vibration Test
Technical Specifications
Frequency 2000Hz
Sine force 3kN /300kg/674.43lbf
Random force 3kN /300kg/674.43lbf
Shock force 6kN /600kg/1348.86lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 120KG
Moving parts mass 3KG
Armature diameter 150mm

A TV vibration test assesses a television's structural integrity and performance under simulated environmental vibrations to identify potential failures from shipping, handling, or usage. This involves using a specialized shaker to subject the TV to various frequencies (like random or sinusoidal vibration) along its three perpendicular axes, with the test data being collected using sensors. The goal is to ensure the TV can withstand real-world conditions and to identify weak points before it is released to market.

Description
  • Purpose: To evaluate a TV's durability and reliability by simulating real-world environmental stresses. This helps identify defects related to shipping, handling, and long-term use.
  • Equipment: The test uses a vibration test system, which includes a powerful electrodynamic shaker (often driven by an amplifier) and a vibration control system. Sensors, such as accelerometers, are used to measure the TV's response.
  • Test types:
    • Random Vibration: Simulates the chaotic, broad-spectrum vibrations of real-world environments, such as those experienced in a vehicle or during handling.
    • Sinusoidal Vibration: Involves applying a continuous, single-frequency vibration that is swept up and down to pinpoint specific resonance frequencies.
  • Procedure:
    1. The TV is mounted onto a shaker table, often the principal axes of the TV.
    2. A vibration profile is applied, which could involve random or sinusoidal frequencies, with parameters like acceleration, velocity, and frequency carefully controlled.
    3. Vibration is applied along each of the three perpendicular axes.
    4. The response of the TV is monitored using sensors to check for any structural damage, performance issues, or premature failures.
Product Overview
The air-cooled series-electric vibration test system offers wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation forces ranging from 1kN to 70kN and maximum loads from 70kg to 1000kg.
Key Applications
Widely used in aviation, aerospace, defense, marine, communications, automotive, electronics, electrical appliances, and other industries. Provides comprehensive testing solutions for multiple environmental conditions including climate and mechanical testing.
System Components
The complete system includes a vibration table, power amplifier, and cooling fan. Various controller options are available with multiple choices for additional control and measurement equipment.
Performance Features
  • Forced air cooling system
  • 1:1 ratio for random and sinusoidal excitation force
  • Displacement peak-to-peak value up to 100mm
  • Trunnion airbag with excellent isolation effect
  • Double magnetic circuit design with low magnetic flux leakage and uniform magnetic field
  • Sinusoidal excitation force range: 1kN ~ 70kN
  • Double sinusoidal impact force (three times more than 2 tons)
  • Light dynamic coil with optimized design and strong vibration resistance
  • Center airbag with strong carrying capacity and excellent low frequency performance
  • Configurable horizontal slide
  • High-efficiency cooling fan with low noise operation
  • Frequency range starting from 1Hz
High Dynamic Winding Reliability
The innovative structure and technology of the dynamic winding reinforcement ring significantly enhance vibration resistance reliability in high thrust, high acceleration vibration, impact, and high temperature environments.
Advanced Cooling System
The cooling fan features a unique air duct and structural design, providing excellent cooling efficiency with minimal noise.
Versatile Testing Orientation
The electric vibration table with horizontal slide enables both horizontal and vertical testing, with simple and easy control for switching between orientations.
IGBT Module Technology
The amplifiers incorporate reliable MOSFET and IGBT modules for exceptional stability and reliability.
Detailed Specifications
Parameter Value
Shaker Model JQA-202-335/JQA-203-335
Frequency Range (Hz) 5~3000
Rated sinusoidal force (KN) 20
Shock force (KN) 40/60
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. displacement (mmp-p) 51/76
Max. load (kg) 300
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-20
Moving parts weight (kg) 23
Armature diameter (φmm) 335
Allowable eccentric moment (N x m) 490
Outer dimension (W*H*D)(mm) 1080*990*860
Shaker weight (kg) 1600
Power amplifier model PA-20
Max. output power (KVA) 20
Amplifier Size (W*H*D) 550*1750*850
Power amplifier Weight (kg) 410
Power Amplifier working model Switch
System power consumption (KVA) 40
Cooling method Forced air cooling
Fan model FJ-3000
Rated flow (m³/min) 40
Rated wind pressure (kPa) 3.5/8.8
Fan power (KW) 7.5
ISTA 1A/2A/3A/6A Package Vibration Test
