Specifications
Brand Name :
Jianqiao
Model Number :
JQESS-100
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
,T/T
Supply Ability :
300
Delivery Time :
5~ weeks
Packaging Details :
Wooden case
Heating System :
Stainless Steel Tubular Heater
Cooling System :
Mechanical Refrigeration
Warranty :
1 Year
Refrigeration Compressor :
hermetic compressor(Tecumseh)
Humidity Uniformity :
±2.0％RH
Fan :
Centrifugal blower
Humidifier :
Steam humidifier
Humidity Control Range :
20.0%RH～95.0%RH

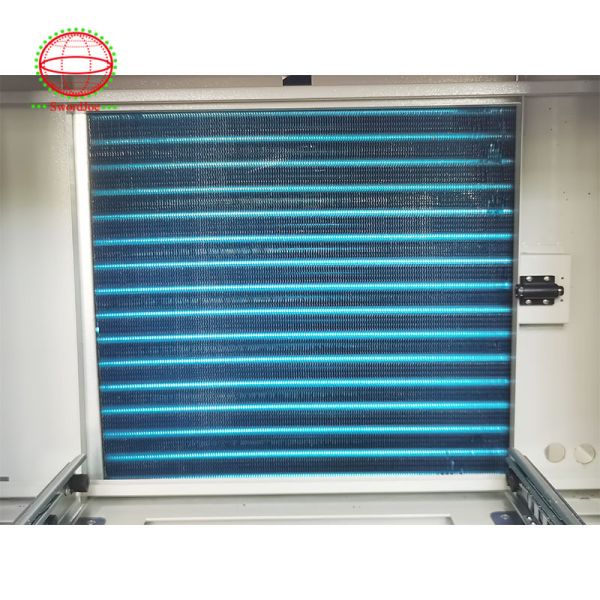

Evaporator :
Fin - and - Tube Heat Exchanger
Chamber Size :
1000mm x 1000mm x 1000mm
Humidity Control :
10% ~95%RH
Description
Environmental Stress Screen Test Chamber Rapid Temperature Change Test Chamber for Aviation Parts MIL-STD-810
Rapid change temperature testing is a type of thermal cycling tests developed to improve the failure repeatability of thermal shock tests.
With the ongoing rise in issues affecting the reliability of electronic devices and circuit boards, a better-suited evaluation testing method is needed to respond to issues such as higher device operation temperatures resulting from greater semiconductor integration, changes in device mounting methods such as BGA and CSP, and the use of lead-free solder.

Rapid change temperature testing specifies a test sample temperature variation rate of 15°C/minute or less, which is the biggest difference between this method and thermal shock testing. Since rapid change temperature testing achieves highly repeatable test results, it is used for compliance testing for standards such as JEDEC (JESD 22-A104F).

Key Functions & Characteristics
  • Accelerated Aging: Simulates years of real-world thermal stress in significantly reduced timeframes
  • Rapid Ramping: Achieves fast heating and cooling rates (5°C/min to 25°C/min or customizable)
  • Environmental Simulation: Mimics operational extremes for comprehensive product design testing, improvement validation, and compliance verification with standards like JEDEC
  • Advanced Components: Features sophisticated heating/cooling systems, precision air circulation, and PLC/touchscreen control systems
  • Industry Applications: Essential for electronics, aerospace, automotive, new energy, and defense sectors to identify thermal stress defects
Operational Process
  1. Setup: Place test samples (circuit boards, devices, components) inside the insulated chamber
  2. Programming: Configure test parameters including temperature range, ramp rates, and hold durations via the intuitive controller interface
  3. Testing Cycle: The chamber rapidly heats or cools samples, cycling between extreme conditions (e.g., +125°C to -40°C)
  4. Evaluation: Engineers monitor for failures including cracks, disconnections, and performance degradation to assess product resilience and reliability
Technical Specifications
Model JQESS-100 JQESS-150 JQESS-225 JQESS-408 JQESS-800 JQESS-1000 JQESS-1200 JQESS-1500
Inner Size (cm) 50×40×50 50×50×60 60×50×75 80×60×85 100×80×100 100×100×100 120×100×100 150×100×100
Outer Size (cm) 70×100×156 70×125×147 80×129×168 80×140×180 120×155×195 120×175×195 140×175×195 170×175×195
Volume (L) 100L 150L 225L 408L 800L 1000L 1200L 1500L
Power (KW) 20 25 32 36 40 40 48 52
Construction & Control Features
Exterior Material: Baked Electrolytic plate with Electrostatic painting
Interior Material: Stainless Steel (SUS304)
Insulation Material: Rigid Polyurethane Foam
Control Method: PWM cold end control technology
Temperature Range: Model S type: -70°C to +150°C, Model L type: -40°C to +150°C or customized
Humidity Range: 20% to 98% RH
Linear Temperature Change Range: -40°C to ±85°C
Temperature Change Rate: 5°C/min, 10°C/min, 15°C/min, 20°C/min, 25°C/min or customizable

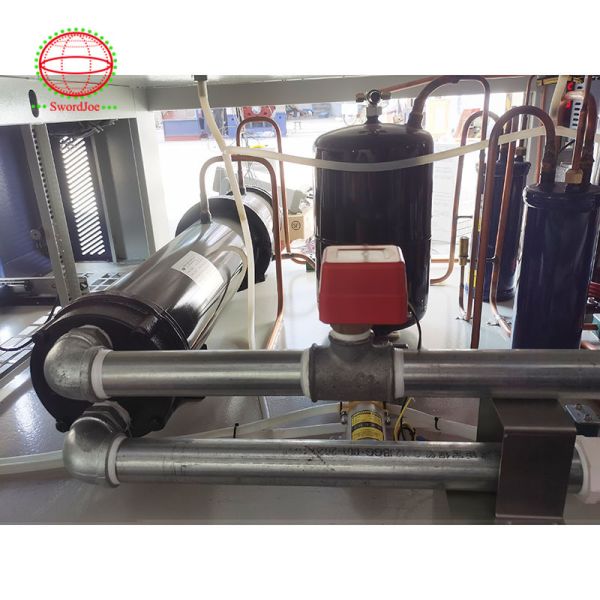

Refrigeration System: Cascade refrigeration system
Cooling Model: Air cooled / Water cooled
Temperature Sensor: PT-100 Platinum Resistance
Controller: TW DELTA PLC touch screen control with Chinese, English, Russian language support
Safety Devices: Over-pressure, Over-load and Over-current protector for compressor, Over-Temperature Protector, Over-voltage coolant protection
Configuration Interface: USB, WLAN, RS232 port, optional APP functionality
Power Supply: AC 220V or AC 110V or AC380V 50Hz

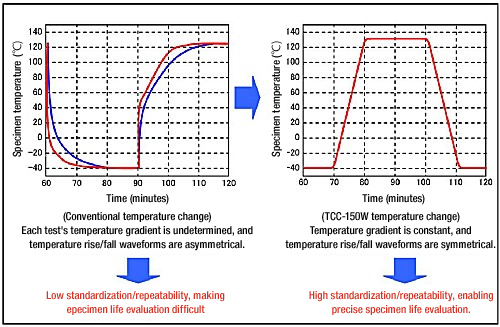

Difference in specimen temperature changes in thermal shock testing and rapid thermal cycling tests
