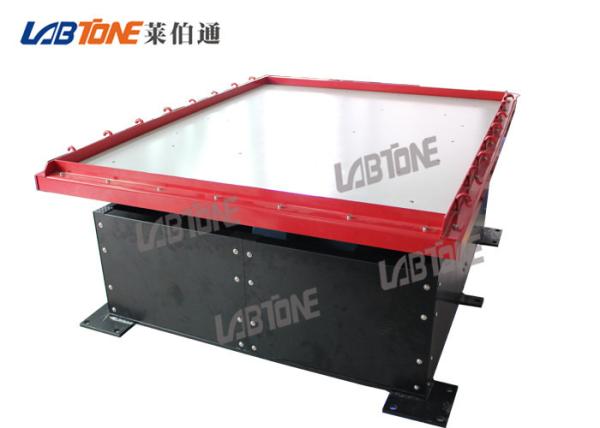

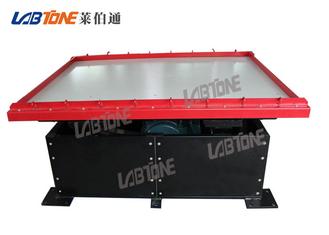

500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
Specifications
Brand Name :
LABTONE
Model Number :
YST500
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15 Sets Per Month
Delivery Time :
45 working days
Packaging Details :
International wooden case
Payload: :
500 Kg
Frequency: :
2~5Hz(120~300)RPM
Vibration Pattern: :
Rotation, 30° Unbalance Vibration(asynchronous)
Table Size: :
1200 X 1500mm
Amplitude: :
1 Inch (25.4mm) Fixed
Power Supply: :
AC 380V±10% 50Hz
Highlight: :
vibration shaker table systems, vibration shaker table
Description
Description and Application
Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply electric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode


500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard


Specifications

Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)

 100 200 500 1000 2000

Table Size(mm)

 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz

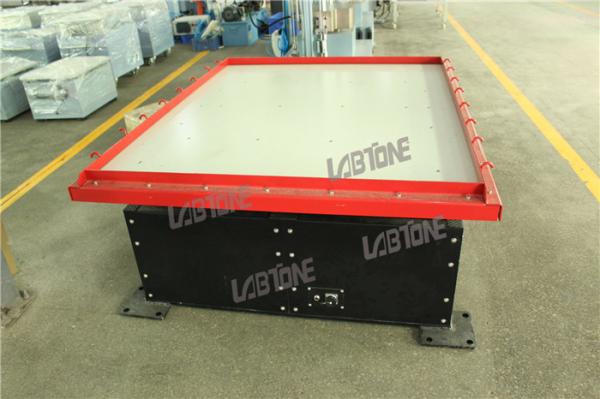

Detailed Picture

500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard
