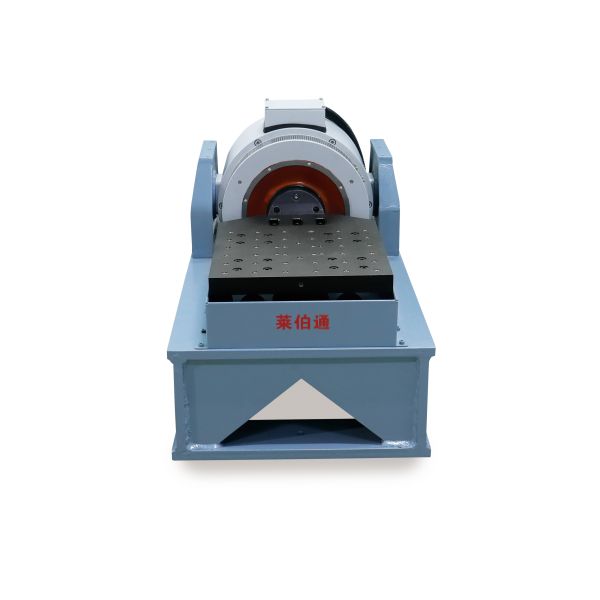

Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Specifications
Brand Name :
LABTONE
Model Number :
ET10
Certification :
CE, ISO
Place of Origin :
Dongguan,CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 Sets / Month
Delivery Time :
30-60days
Packaging Details :
Plywood Case with Vacuum Packing
Model System: :
ET10
Max. Acceleration: :
35g
Max. Velocity: :
1.5m/s
Random Force: :
30 N (300kg.f)
Displacement: :
10 mm
Cooling Method: :
Natural cooling
Highlight: :
vibration testing services, vibration shaker system, vibration test equipment
Description

Minitype Vibration Test System

Description

With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Product Application

Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Features

  • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
  • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
  • Apply to the basic test of vibration engineering of educational equipment.

Equipment Configuration

Item Configuration Qty.
1. Vibration shaker
ET30 Shaker 1 set
2. Digital switch power amplifier
PA502E Power Amplifier 1 set
4. Attached accessories
connecting line 1 set
Operation instructions, inspection report, certificate, maintenance manual, etc. 1 set
Special tools 1 set

Vibration Test Machine Specification:

Vibration Test Machine Specification:

Electrodynamic shaker
Max. sine exciting force 100Kg.f peak (10N)
Frequency range 5～10000Hz (Larger frequencies are available)
Max. displacement 10mm p-p
Max. velocity 1.5 m/s
Max. acceleration 35G (300 m/s2)
Vertical load support 20 kg
Armature diameter Ф120 mm
Armature weight 1.7 kg
Over all Dimension 184mm L x 95mm D x 188mm H
Shaker weight 97 Kg
Cooling type Air Cooling by inner axial fan
PA501EF Power Amplifier
Output power 900 VA
Amplifier cabinet dimension 430mm×200mm×500mm
Servo protection system
Functions: FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP
Vibration controller
Hardware configuration: 2-channel inputs, 1-channel outputs
Control computer 1 set
Function

Sine Control, Random Control

Language:English,Chinese
Operating system Microsoft Windows 7/8/10
Acceleration sensor LAB

Frequency range:1-12KHz

Sensitivity: 30 ±10 pC/g

Temperature range: -40℃ to 160℃
Head Expander VT40CM
Table size 400x400mm
Material Magnesium alloy
Frequency Up to 2000Hz
Electrical requirements:
Power supply AC 220V±10%, 50/60Hz, Single Phase, 900VA
Environment Requirements

Temperature: 0～40ºC

Relative Humidity: 0～80%, non-condensing

Vibration Test Machine Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

.

After-Sales Service

  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.
