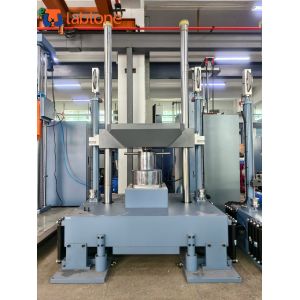

Shock Test System for Electronic Products and Aerospace Industry with 100x100cm Table Size and 200kg Max Specimen Weight
Shock Test System for Electronic Products and Aerospace Industry with 100x100cm Table Size and 200kg Max Specimen Weight
Shock Test System for Electronic Products and Aerospace Industry with 100x100cm Table Size and 200kg Max Specimen Weight
Shock Test System for Electronic Products and Aerospace Industry with 100x100cm Table Size and 200kg Max Specimen Weight
Specifications
Brand Name :
LABTONE
Model Number :
SKT200
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15 Sets / Month
Delivery Time :
45 working days
Packaging Details :
International wooden case
Name :
Mechanical Shock Test System With 100 x 100cm For 200kg Battery Test 150g @6ms
Table size :
100 x 100 cm
Specimen max weight(kg) :
200kg
Shock pulse :
half sine
Acceleration :
600g (6000m/s2)
Pulse duration range (ms) :
1-30ms
Description

Mechanical Shock Test System With 100 X 100cm For 200kg Battery Test 150g @ 6ms

Product application
The shock testing system of SKT series are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation.SKT Series can be equipped with optional shock pulse programmers to generate a wide range of short duration half sine, sawtooth, or trapezoida. The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.

Specifications:

Main parameters of the shock tester
Table Size(mm) 1000 × 1000
Max. Specimen Weight 200KG
Peak acceleration

Half sine wave: 10 to 500G
Pulse duration

Half sine wave: 3 to 30 ms

Pulse Waveform

*With Optional Programmers

Half Sine

Trapezoidal *

Terminal Peak Sawtooth*
Acceleration allowance ≤ 10%
Rate of speed change ≤ 10%
Transverse ratio of table ≤ 10%
Equipment dimensions 150×130×260cm
Equipment weight 4500 kg
Measuring system
Input channels 2 channels(hardware)
Sampling frequency 192KHz
Pulse duration 0.5 to 100ms
Max. acceleration 5000G
Communication interface USB2.0
Supportive standard ISO, UN38.3,MIL-STD-810, user defined
Operating system Microsoft Win XP
System acceleration sensor
Brand B&W
Model 23108
Output mode Charge type
Sensitivity 10 pC/g
Frequency range 0.5 to 12KHz
Acceleration range ±2500G
Operating environment -40 to +160℃
Other information
Power supply AC, three phase, 380V±10% 3KVA
Compressed air 0.5 to 0.8Mpa
Temperature RT~40℃
Humidity 25℃, ＜ 85RH%
Safety

Mean time between failure≥ 5000 hours;

Continuous use of half sine waveform generator≥ 10000 times,

Storage time in clean environment at normal temperature≥ 5 years.
Applicable standards GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc.
Testing standard JJG541-2005


High Perfermance Shock Test System

Model HSKT10 HSKT10D HSKT15 HSKT30 HSKT35
Table Size(mm) 200 x 250 300 x 300 250 x 250 250 x 250 250 x 250

Max. Payload

(kg)

 10 25 10 10 10
Shock Pulse Half Sine Wave
Acceleration Range(G)

20~2000

(bare table)

 20~10000
(bare table)		 20~15000
(bare table)		 20~30000
(bare table)		 20~35000
(bare table)
Pulse Duration(ms) 0.2~18 0.1~11

Our Service

Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
