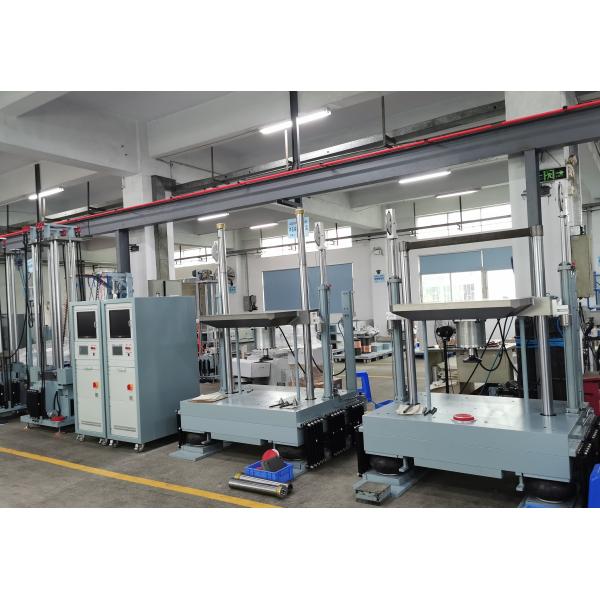

Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
Specifications
Brand Name :
LABTONE
Model Number :
JESD-HS20
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
to be discussed
Payment Terms :
T/T
Supply Ability :
15 Sets / Month
Delivery Time :
45 working days
Packaging Details :
International plywood case
Table Size :
200 × 200 mm
Max. specimen weight :
20 kg
Warranty period :
1 year after installation
Power supply :
AC 220V±10％ 50Hz，0.5KVA
Weight :
550kg
Standard :
JESD22-B110B
Description

Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms

Description of Shock Test Machine
The Mechanical Shock Test Method is intended to evaluate component(s) for use in electrical equipment.It is intended to determine the compatibility of the component(s) to withstand moderately severe shocks as a result of suddenly applied forces or abrupt change in motion produced by handling, transportation or field operation. Mechanical Shock of this type may disturb operating characteristics, particularly if the shock pulses are repetitive. This is a destructive test intended component qualification. It is normally applicable to cavity-type packages.Comply with JESD22-B104C, JESD22-B110B test standards.

Technical Specifications of Shock Test Machine

Operating platform 200 × 200 mm
Max. load 20 KG
Peak acceleration 30 to 3000G
Pulse duration 0.3~18 ms
Equipment dimensions 700mm L × 750mm D x 1900mm H
Equipment weight 550 kg
Power required AC 220V±10％ 50Hz,0.5KVA
Air supply 6 kg / cm2
Supportive standard JESD22-B104C, JESD22-B110B
Shock measuring and analyzing system
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration 50-1ms
Communication interface USB2.0
Operating system Windows 7/10
System acceleration sensor
Brand LAB
Model 21105
Output mode Charge type
Sensitivity 1 pC/g
Frequency range 1 to 10 KHz
Acceleration range 25000G
Operating environment -40 to +160℃

Other Models:

Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM

Certificate: China official third-party calibration report / CE Certification

Customer Service

Service timeliness

When a fault report is received from customer〈including telephone, fax and email〉:

LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms
