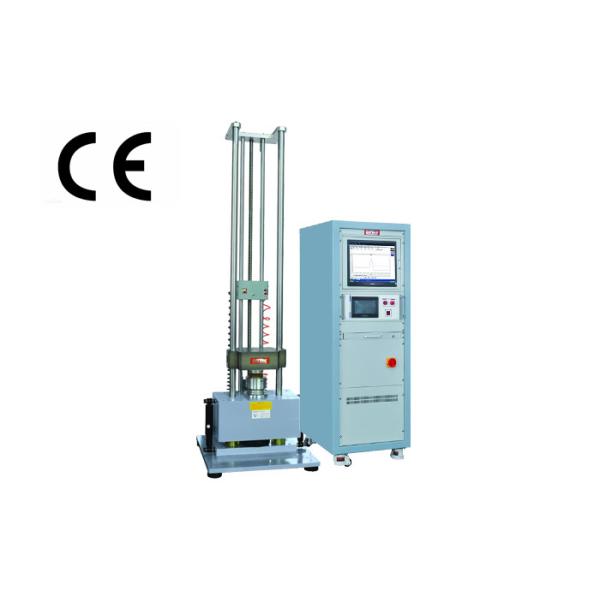

0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
Specifications
Brand Name :
LABTONE
Model Number :
HSKT10
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
45 working days
Packaging Details :
International wooden case
Supply Ability :
15 Sets / Month
Model :
HSKT10
Table size :
200 x 250 mm
Specimen max weight :
10 kg
Shock pulse :
half sine
Acceleration range :
20-2000 G
Pulse duration range :
0.2~18 ms
Description

0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer

Main performance
- Free drop type shock tester using hydraulic lifting and HP fluid braking;Use of pneumatic-hydraulic boosting and strong friction brake to prevent -
- secondary shock braking;
- Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
- Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
- Availability for equivalent drop test of packing boxes.

Product Features

  • TouchTest Shock Controller for easy and safe operation
  • Forged aluminum table design for generating high acceleration shock pulses
  • Acceleration Kit to increase velocity change performance
  • Electric hoist lifting and positioning system enables precise drop repeatability
  • Floating Seismic Base to limit the shock energy that transmits to the floor
  • Full range of applications training programs available
  • Worldwide Customer Service department

Applications

  • Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

​

Equipment composition

No. Equipment name Model Qty.
1 Shock tester HSKT10 1set
3 Shock Controller SKC-1 1 set
4 Shock measuring and analyzing system ST-2 1 set
5 Sensor LAB 1pcs
6 Computer Acer 1 set
7 Waveform generator HB01 1 set
8 Safety device Audible and visual alarm 1 set
9 Attached accessories Tools, clamps/instructions, installation disc, etc. 1 set

Technical Specifications

Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements		 AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650

Detaied Pictures:

0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
