10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
Specifications
Vibration force :
10KN
Vibration direction :
vertical + horizontal
Acceleration :
100g
Moving coil size :
Dia. 240mm
Displacement :
51mm
Frequency range :
3-3000Hz
Rated acceleration :
1000m/s2
Rated speed :
1.8m/s
Max loading :
270Kg
Moving coil weight :
14Kg
Rated sine force :
10000N
Power type :
Electronic
Table size :
customized
Test standards :
ISO 16750-03, IEC 60068-2
Moving coil dimension :
Φ240mm
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
ES-10
MOQ :
1
Price :
$23,500
Description
Vertical Vibration Testing Machine for Sine Sweep Vibration Testing
Our Vertical Vibration Testing Machine for Sine Sweep Vibration Testing incorporates advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. This system performs sinusoidal vibration tests across X, Y, and Z axes, broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. Ideal for defense, weapons, aviation, aerospace, communications, electronics, and appliance industries.
Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3-3500 3-3500 3-3000 3-3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated displacement (p-p)mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving coil (Kg) 6.5 12 14 30
Dimension of Moving coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, horizontal, vertical+horizontal vibration

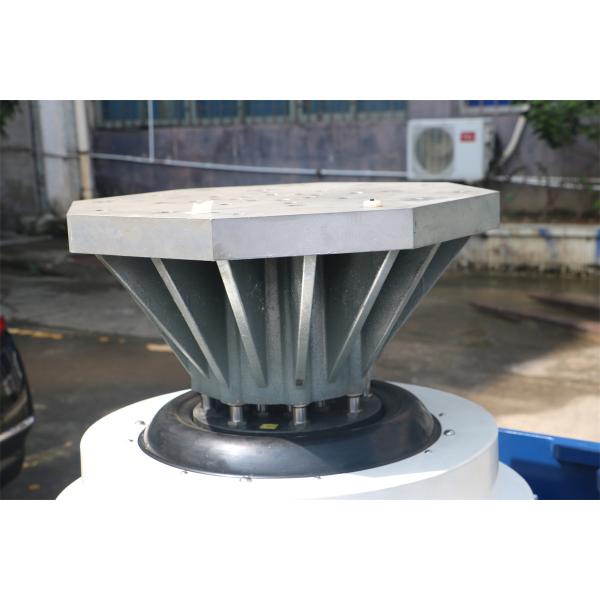

Vertical Expander Features
VT vertical extended-bench with specified clamps features precision-calculated, elaborate design to ensure optimal performance through perfect structure, high-quality materials, and superior workmanship.

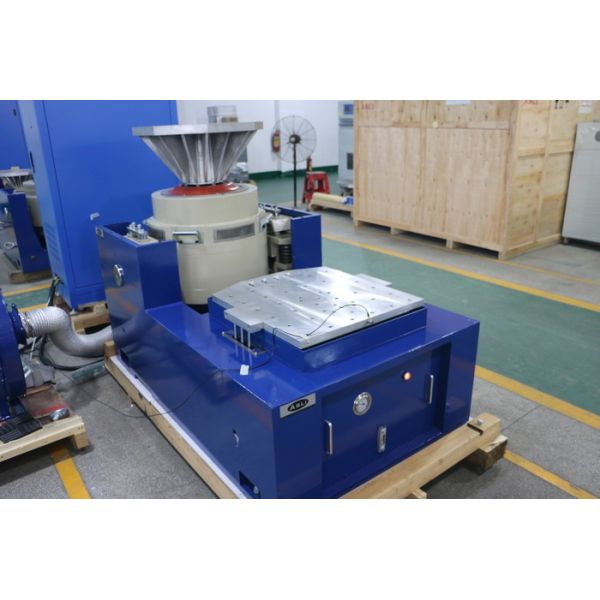

Horizontal Expander Features
  • Small loading bench enables higher acceleration and working frequency
  • Improves loading capacity and overall machine performance
  • Integral horizontal bench and vibration bench with perfect structure
  • Easy installation and adjustment
  • Static pressure track with V-shape design
  • Slope-resistant and bias-loading resistant
  • Built-in oil pump with good structure for easy operation

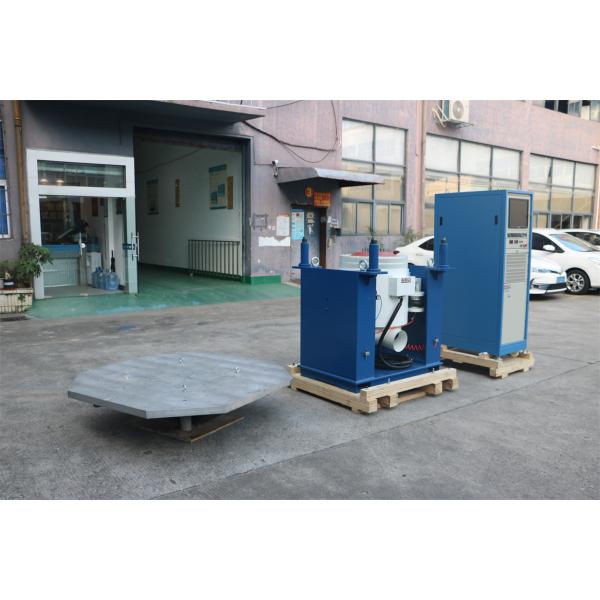

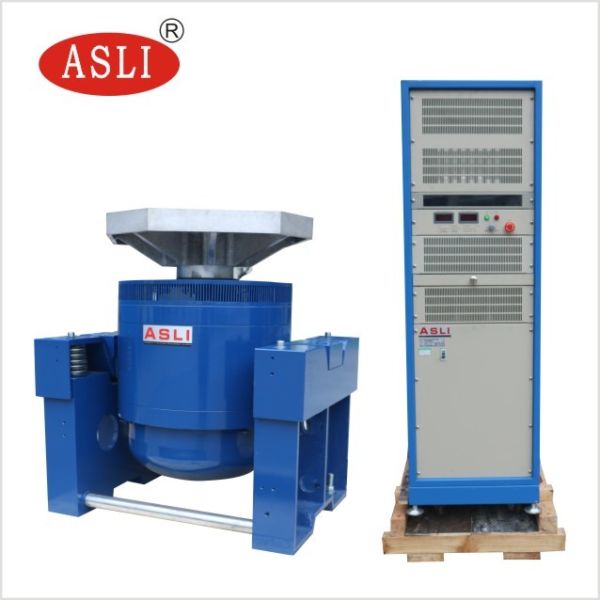

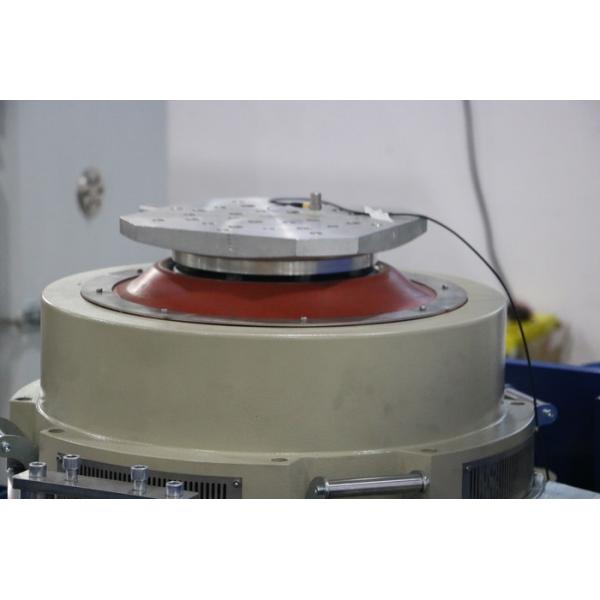

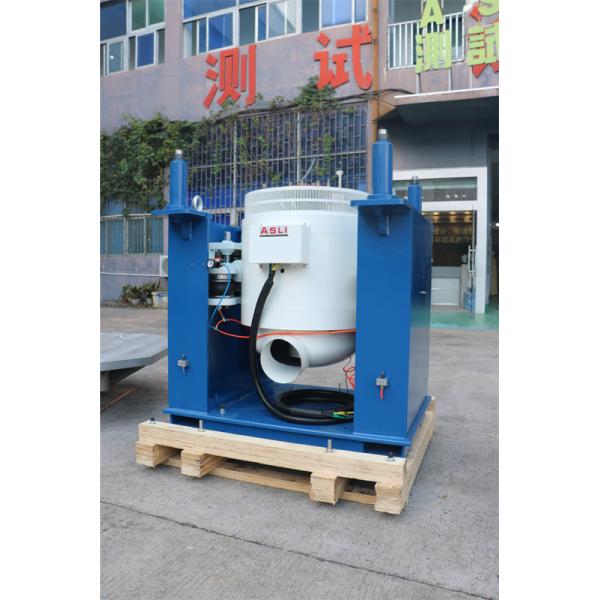

Product Images
Packing & Delivery
We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.
Company Profile
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our vibration testing machines for packages/cartons are star products, certified with CE marks.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, and standard export plywood case exterior.
Q2. What is your terms of payment?
A: 50% T/T deposit, 50% balance before delivery. We provide product and packaging photos before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DAP, DDU, DDP options available.
Q4. How about your delivery time?
A: Typically 30-60 days after receiving advance payment. Exact timing depends on order items and quantity.
For more information about our Vertical Vibration Testing Machine for Sine Sweep Vibration Testing, please contact us.
