Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
ES-20
MOQ :
1
Price :
$26,890
Vibration direction :
vertical vibration
Vibration force :
20KN
Control method :
computer control
Acceleration :
100g
Frequency range :
3-3000Hz
Moving coil weight :
30kg
Rated Sine Force :
20000N
Rated Acceleration :
1000m/s2
Rated Speed :
1.8m/s
Rated displacement :
80mm
Max Loading :
300Kg
Moving coil dimension :
Φ320mm
Power type :
Electronic
Description
Product Description
High Frequency Vibration Test Stand is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Specification
Model
ES-10
ES-20
ES-30
ES-40
Rated Sine
Force (N)
10000
20000
30000
40000
Frequency
Range (Hz)
3-3000
3-3000
3-2800
3-2800
Rated Acceleration (m/s2)
1000
1000
1000
1000
Rated Speed (m/s)
1.8
1.8
1.8
1.8
Rated displacement
(p-p) mm
70
80
11100
100
Max. Loading (Kg)
270
300
450
500
moving coil(Kg)
14
30
40
50
Dimension of
Moving coil (mm)
Φ240
Φ320
Φ450
Φ450
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and
the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.

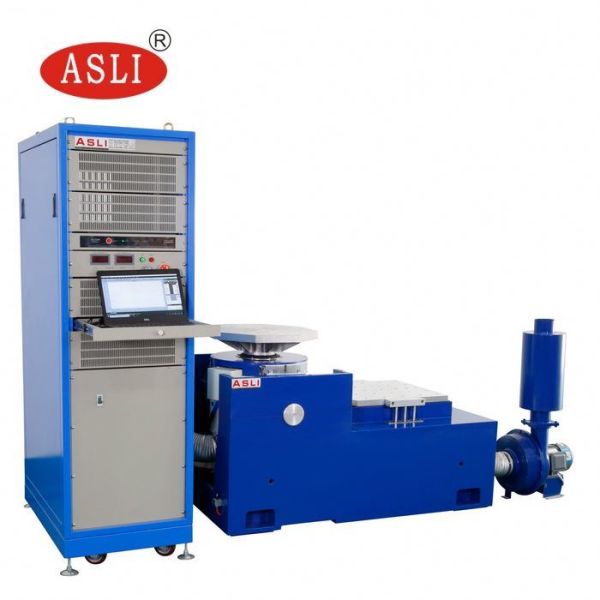

horizontal stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

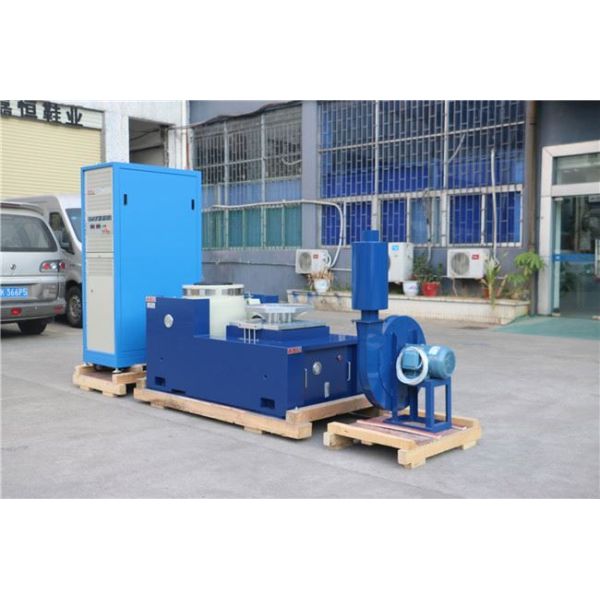

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. horizontal and vertical vibration 3 axis high frequency vibration tester is our star products , and we had obtained the CE certification for this machine .
FAQ
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
