Specifications
Certification :
CE, ISO,SGS, BV
Moving Coil Weight :
3.5Kg
MOQ :
1
Delivery Time :
30~40 days
Max. Speed :
1.6m/s
Max. Loading :
100Kg
Accuracy :
±5%
Vibration Direction :
Vertical Vibration
Rated Acceleration :
1000m/s2
Model Number :
ES Series
Moving Coil Dimension :
Φ150mm
Displacement :
51mm
Packaging Details :
export standard plywood case
Cooling Method :
Air cooling
Rated Sine Force :
3000N
Place of Origin :
Guangdong, China
Payment Terms :
T/T, Western Union, L/C
Brand Name :
ASLI
Price :
$25,000
Voltage :
380 V
Vibration Wave :
Sine, Random, Shock
Frequency Range :
3-3500Hz
Supply Ability :
100 sets per quarter
Description
Vertical Vibration High Frequency Electrodynamics Vibration Tester
A high-frequency vibration test system—also known as an electromagnetic high-frequency vibration table or swept-frequency vibration tester—uses electromagnetic force to drive a platform and generate controlled vibrations. This equipment simulates vibration environments that products encounter during manufacturing, transportation, and actual use, enabling comprehensive testing of reliability, structural integrity, and vibration resistance.
Key Applications
  • Early-stage failure detection: Identifies potential issues such as faulty solder joints or loose components during product research and development phases
  • Real-world operating condition simulation: Replicates scenarios including automotive transport jolting and high-frequency vibrations affecting airborne equipment to assess product adaptability
  • Quality certification and reliability testing: Supports product quality inspection and system certification across electronics, telecommunications, automotive, home appliances, aerospace, and defense industries
Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3300030003-350010001.6251003.5Φ150
ES-3a300030003-35004001.6401209Φ230
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85145040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450

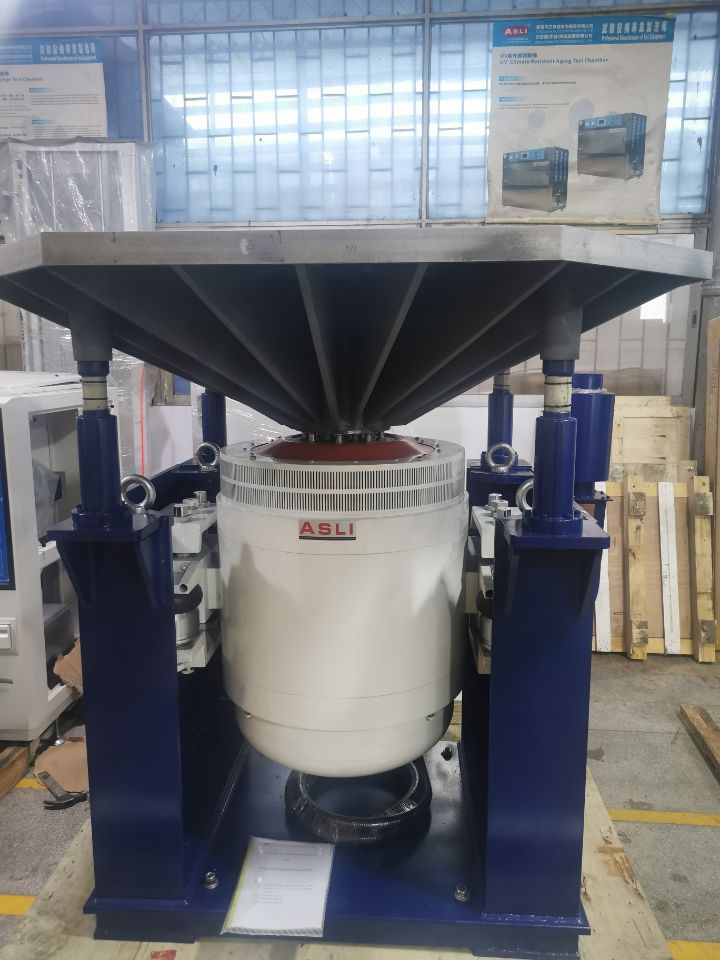

Product Details
Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement

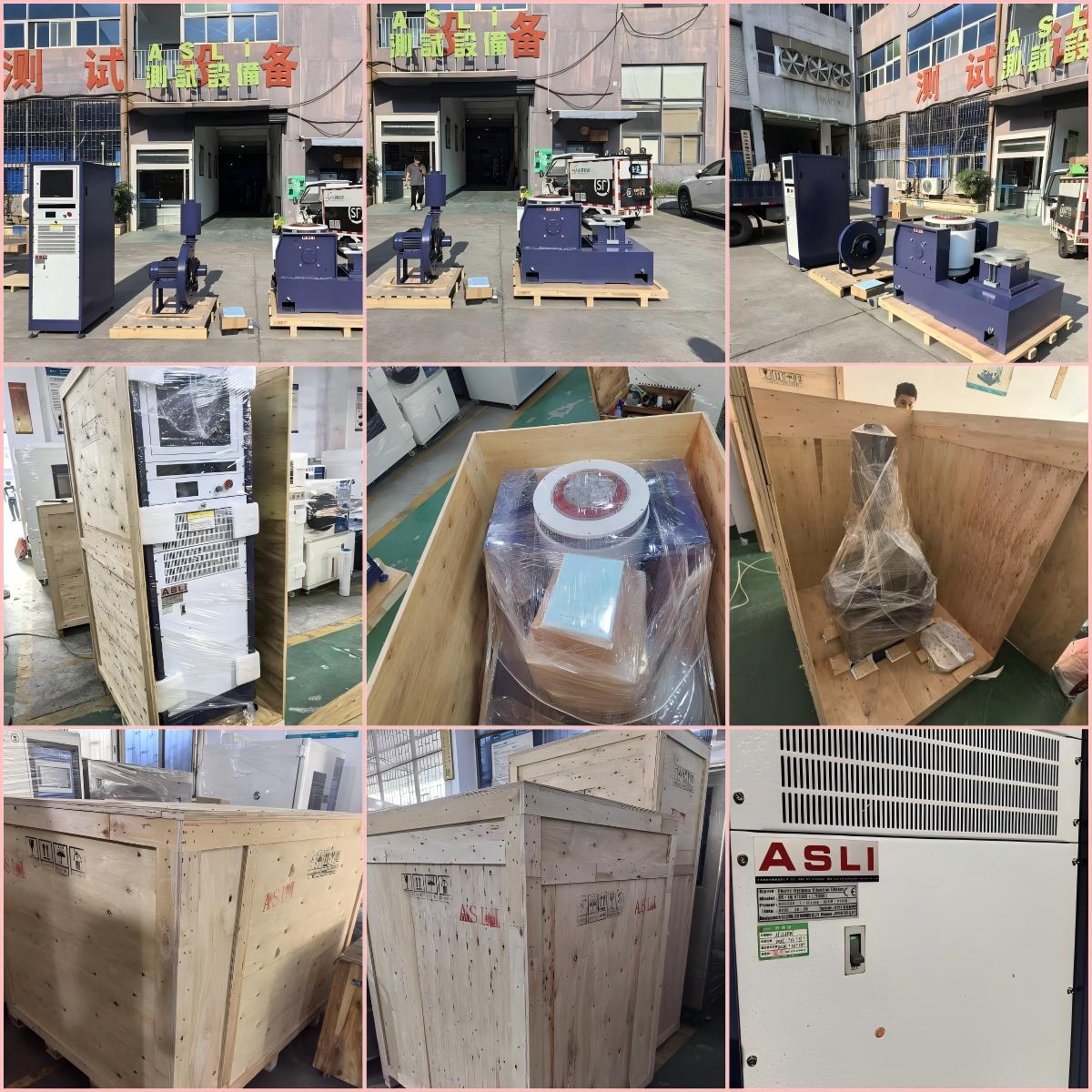

Packaging & Delivery
Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement
To ensure equipment arrives at customer facilities in optimal condition, ASLI utilizes professional export packaging designed for long-distance transportation. Our packaging protects against dust, moisture, impact, and movement during shipping with suitable protective materials and robust wooden cases. All accessories and documentation are securely packed to prevent loss or damage during transit.

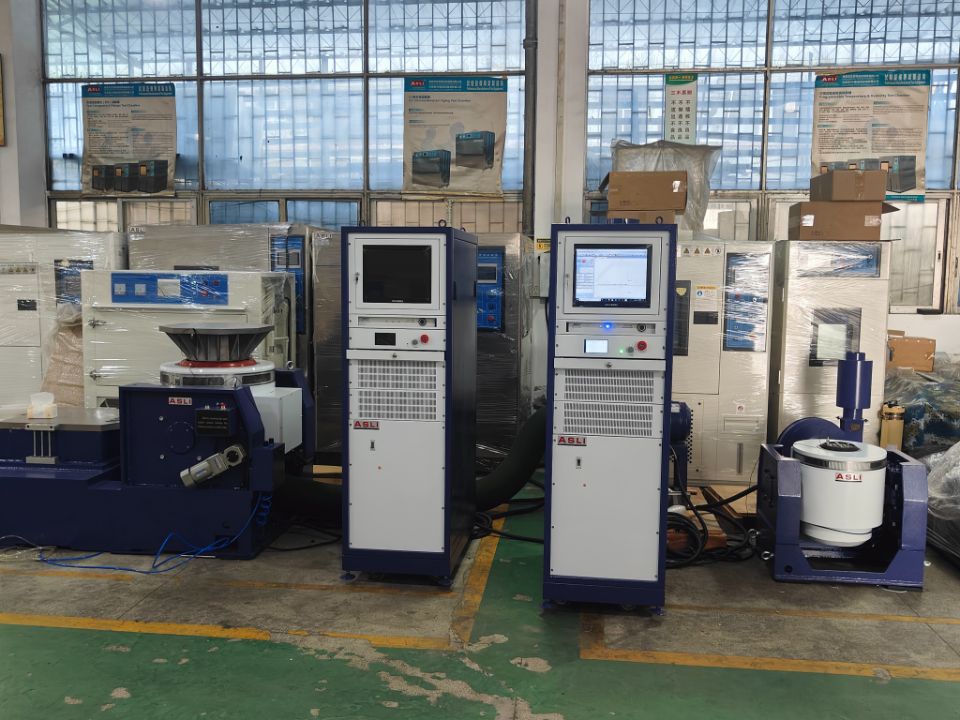

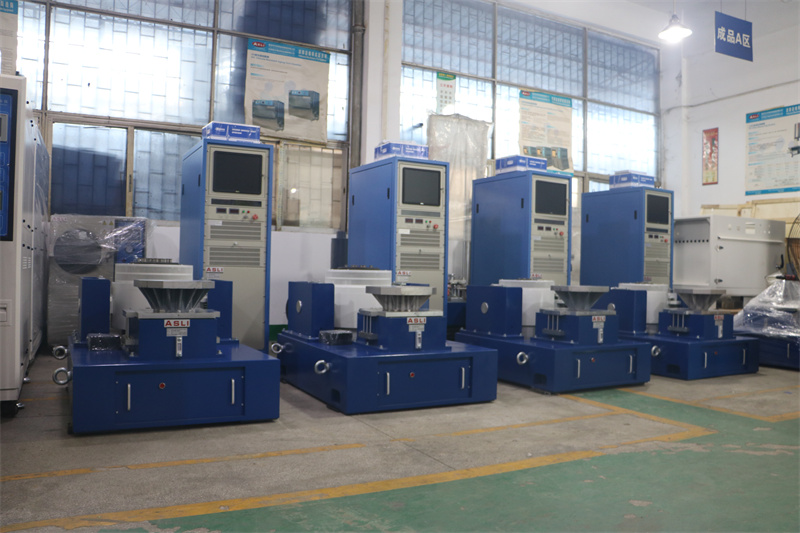

Company Profile
Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement
AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of environmental and mechanical test equipment based in Dongguan, China. We specialize in designing and manufacturing temperature & humidity chambers, thermal shock chambers, rapid temperature change chambers, walk-in chambers, salt spray chambers, UV/Xenon aging chambers, HAST/PCT chambers, dust chambers, vibration test systems, shock/impact testers, and customized testing equipment.
With decades of testing technology experience, ASLI provides both standard and customized testing solutions for automotive, electronics, aerospace, photovoltaics, packaging, and pharmaceutical industries. Our products are supplied worldwide and designed according to international testing standards including IEC, ISO, ASTM, MIL-STD, EN, and GB. As a direct manufacturer, ASLI offers technical consultation, customized design, manufacturing, installation, commissioning, and comprehensive after-sales technical support.
Frequently Asked Questions
Are you a manufacturer or a trading company?
ASLI is a direct manufacturer of environmental and mechanical test equipment. We design, manufacture, install, and provide after-sales technical support for our equipment.
Can you customize the equipment?
Yes. We can customize chamber size, temperature/humidity range, cooling system, test table, vibration force, and other configurations according to specific customer requirements.
Do you provide spare parts and after-sales service?
Yes. We provide spare parts and technical support throughout the service life of the equipment.
What standards can your equipment meet?
Our equipment can be designed according to various international standards, including IEC, ISO, ASTM, MIL-STD, EN, GB, JIS, and other applicable standards.
Can you provide a technical proposal before quotation?
Yes. Based on customer testing requirements, we recommend suitable models and provide technical specifications and configurations for confirmation before quotation.
Do you provide installation and commissioning?
Yes. Installation and commissioning can be provided depending on equipment and project requirements. We also offer remote technical support when on-site service isn't required.
What is the warranty period?
Our standard warranty period is one year from the shipment date. Extended warranty options are available upon request.
